2-138 - PISTONS, CONNECTING RODS, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 6

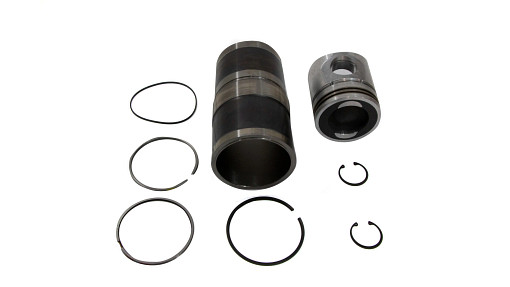

    A77901
    PISTON & RINGS KIT; piston, standard, consists of: Ref. 1 - 8
  • 1
    1
    J944344
    SLEEVE CYLINDER;
  • 2
    1

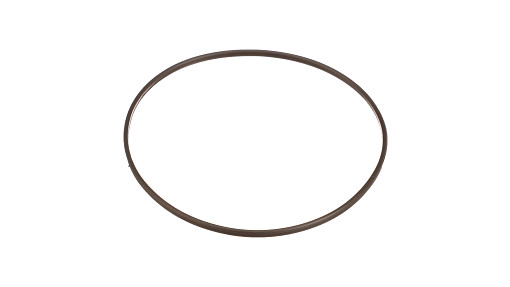

    J907177
    SEAL 118mm ID x 122.32mm OD x 4mm Thk;
  • 1
    J800316
    PISTON & RINGS KIT; standard, consists of: Ref. 3 - 8
  • 3
    1
    NSS
    NOT SOLD SEPARAT; PISTON
  • 4
    2
    100-21175
    SNAP RING 1.75'', Int, #175;
  • 5
    1
    J802429
    PISTON RINGS KIT; standard, Includes: Ref. 6 - 8
  • 6
    1
    NSS
    NOT SOLD SEPARAT; RING top
  • 7
    1
    NSS
    NOT SOLD SEPARAT; RING middle
  • 8
    1
    NSS
    NOT SOLD SEPARAT; RING bottom
  • 9
    6
    J901597
    PIN;
  • 9A
    AR
    J924445
    SHIM 126.8mm ID x 130.5mm OD x 0.25mm Thk; (.010'')
  • 9A
    AR
    J924446
    SHIM 126.8mm ID x 130.5mm OD x 0.38mm Thk; (.015'')
  • 9A
    AR
    J924447
    SHIM 126.8mm ID x 130.5mm OD x 0.5mm Thk; (.020'')
  • 9A
    AR
    J924448
    SHIM 0.762mm Thk; (.030'')
  • 9A
    AR
    J924449
    SHIM 1.000mm Thk; (.040'')
  • 6
    JC901383
    CORE-ROD CONNECTING; ASSY, new, Includes: Ref. 10 - 13
  • 6
    J901383
    CONNECTING ROD; ASSY, new, Includes: Ref. 10 - 13
  • 6
    JR901383
    REMAN-CONNECTING ROD; ASSY, new, Includes: Ref. 10 - 13
  • 6

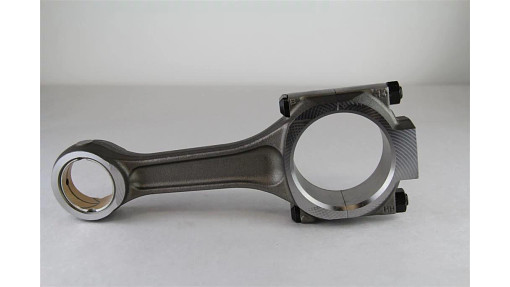

    84487529R
    REMAN-CONNECTING ROD CONNECTING ROD; MX240, MX270 PRIOR TO P.I.N. JJA0105000 Both(1/99-), Reman for New P/N J901383
  • -
    84487529C
    CORE-ROD CONNECTING CONNECTING ROD; Return Number
  • 1
    JR901383
    REMAN-CONNECTING ROD; ASSY, N.A. only, consists of: Ref. 10 - 13
  • 1
    JC901383
    CORE-ROD CONNECTING; CORE-CONNECTING ROD return number
  • 10
    1
    NSS
    NOT SOLD SEPARAT; ROD
  • 11
    1
    J913990
    BUSHING 45.03mm ID x 49mm OD x 45mm L;
  • 12
    2
    J928870
    BOLT;
  • 13
    2
    J901381
    SPECIAL NUT;
  • 14
    6
    A77563
    BEARING SET; con. rod, standard, connecting
  • 14
    6
    A77564
    BEARING SET; con. rod, undersize, 0.25 mm, connecting
  • 14
    6
    A77565
    BEARING SET; con. rod, undersize, 0.50 mm, connecting
  • 14
    6
    A77566
    BEARING SET; con. rod, undersize, 0.75 mm, connecting
  • 14
    6
    A77567
    BEARING SET; con. rod, undersize, 1.00 mm, connecting
