TABLE OF CONTENTS
DIAGRAM
PART LIST
text.modelpage.clearCallout
Tümünü Seç
Ref.
Adet
Parça #
text.assembly.alts
Açıklama
text.assembly.image
-
12ADAPTÖR; UNION - valve assembly, hydraulic control, Includes: Ref. 2
-
21O HALKASI 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; 8-1, 90 Duro, .644'' ID x .087'' Thk (Replaces 570828R1)
-
32DİRSEK; - valve assembly, hydraulic control (replaces 196973C1), Includes: Ref. 4
-
41O HALKASI 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk (Replaces 364885R1)
-
52TAPA; - dust, plastic
-
52TAPA; PLUG ASSEMBLY - coupling dust, rubber (replaces 401757R11)
-
62HIZLI BAĞLANTI, ERKE; COUPLER - self-sealing, male, poppet type, 7/8-14 thread (replaces 385149r1)
-
75O HALKASI 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk (Replaces 364885R1)
-
82KONNEKTÖR; UNION - straight
-
92HORTUM; - hydraulic control valve to hydraulic tube, 27 inch long
-
101HİDROLİK BORUSU .5'' OD; TUBE - hydraulic cylinder bucket roll-back
-
114HORTUM; - bucket hydraulic cylinder to tubes, 24 inch long (replaces 675846R91)
-
122SİLİNDİR; ASSEMBLY - bucket hydraulics parts list Figure 7-70, no longer available, order 1272452C1 cylinder, see below
-
122SİLİNDİR Double Acting, 28.57mm Rod, 466.73mm Stroke; ASSEMBLY - bucket hydraulics, parts list Figure 7-70
-
4AKSAM, GRES 45 Degree Elbow, 1/8'' - 27 NPTF; FITTING - grease, 45 degree, 1/8 PT x 7/8 inch (replaces 109462)
-
134DİRSEK, 90 90 Degree Elbow, 3/4'' - 16 Male JIC x 3/4'' - 16 Male ORB; - 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: Ref. 14
-
141O HALKASI 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk (Replaces 364885R1)
-
154TALİMATLAR; PIN - bucket cylinder rod and boom, for service
-
162PİM; - pivot, bucket cylinder base
-
12RONDELA 1.16'' ID x 2'' OD x 0.12'' Thk; - flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)
-
2BAŞLI PİM 5/16'' x 2''; PIN - headed, 5/16 x 2 inch (replaces 378484R1)
-
2KAMA 3/4'' OAL x 1/8'' W; PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8'' x 3/4''
-
171KELEPÇE; - hose, hydraulic tube boom
-
1CIVATA Hex, 5/16'' - 18 x 3/4'', Gr 5; - hex, 5/16 NC x 3/4 inch (replaces 180077)
-
1KİLİT PULU 5/16''; WASHER, LOCK, (Replaces 120214) 5/16''
-
181HİDROLİK BORUSU .5'' OD; TUBE - hydraulic cylinder bucket dump
-
191TALİMATLAR; VALVE - hydraulic control, refer to hydraulic control valve
-
3CIVATA Hex, 3/8'' - 16 x 2-1/4'', Gr 5; - hex, 3/8 NC x 2-1/4 inch (Replaces 180132)
-
3SOMUN 3/8''-16, Cl 5; (Replaces 120377) 3/8''-16, G5
-
3KİLİT PULU 3/8''; (Replaces 120382) 3/8''
-
201DESTEK; - hydraulic control valve, no longer available
-
2CIVATA Hex, 5/16'' - 18 x 1'', Gr 5; - hex, 5/16 NC x 1 inch (Replaces 180079)
-
2SOMUN 5/16''-18 NC, G5; - hex, 5/16 inch NC (Replaces 120376)
-
2KİLİT PULU 5/16''; WASHER, LOCK, (Replaces 120214) 5/16''
-
212HIZLI BAĞLANTI, DİŞİ; COUPLING - self-sealing, female, 7/8-14 inch, ISO standard, for use with 1272399C2 (replaces 395150R91)
-
222KELEPÇE; - dual tube
-
2DİŞ AÇAN VİDA Hex Wash Hd, 5/16''-18 x 1 1/4''; SCREW - self-tapping, hex washer head, 5/16 NC x 1-1/4 inch
-
2RONDELA 10.31mm ID x 25.4mm OD x 1.6mm Thk; (Replaces 619856R1) 3/8'' x 1'' x .063''
-
1HIZLI BAĞLANTI, ERKE; COUPLER - self-sealing, male, 7/8-14 inch thread, type (replaces 544787R91);The male hydraulic couplers are available to match female couplers on the tractor.
-
1HIZLI BAĞLANTI, ERKE; COUPLER - self-sealing, male, 7/8 inch NF, ISO standard (replaces 395149R1);The male hydraulic couplers are available to match female couplers on the tractor.
-
1HIZLI BAĞLANTI, ERKE; COUPLER - self-sealing, male, 3/4-16 inch thread, ISO standard;The male hydraulic couplers are available to match female couplers on the tractor.
-
1O HALKASI 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk (Replaces 364885R1)
-
1O HALKASI 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; 8-1, 90 Duro, .644'' ID x .087'' Thk (Replaces 570828R1)
-
1HİDROLİK KONNEKTÖR 7/8'' - 14 ORB x 3/4'' - 16 ORB; - straight, 7/8-14 male O-ring boss x 3/4 inch female (replaces 407045R1)
-
1ADAPTÖR 7/8'' - 14 ORB x 3/4'' - 16 ORB; BUSHING - reducer (replaces 407545R1)
-
1KİT; KIT - coupler tag, male coupler ID tag, consists of (4) tag, black (NSS), (4) tag, green (NSS), (4) tag, blue (NSS), instructions (NSS)
Tümünü Seç
Select
Ref.
1Adet
2text.plp.availability
Parça #
372852R1Açıklama
ADAPTÖR; UNION - valve assembly, hydraulic control, Includes: Ref. 2Img
Alts
Select
Ref.
2Adet
1text.plp.availability
Parça #
237-6008Açıklama
O HALKASI 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; 8-1, 90 Duro, .644'' ID x .087'' Thk (Replaces 570828R1)Img
Alts
Select
Ref.
3Adet
2text.plp.availability
Parça #
D48874Açıklama
DİRSEK; - valve assembly, hydraulic control (replaces 196973C1), Includes: Ref. 4Img
Alts
Select
Ref.
4Adet
1text.plp.availability
Parça #
237-6010Açıklama
O HALKASI 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk (Replaces 364885R1)Img
Alts
Select
Ref.
5Adet
2text.plp.availability
Parça #
1954133C1Açıklama
TAPA; PLUG ASSEMBLY - coupling dust, rubber (replaces 401757R11)Img
Alts
Select
Ref.
6Adet
2text.plp.availability
Parça #
1272399C2Açıklama
HIZLI BAĞLANTI, ERKE; COUPLER - self-sealing, male, poppet type, 7/8-14 thread (replaces 385149r1)Img
Alts
Select
Ref.
7Adet
5text.plp.availability
Parça #
237-6010Açıklama
O HALKASI 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk (Replaces 364885R1)Img
Alts
Select
Ref.
8Adet
2text.plp.availability
Parça #
584802R1Açıklama
KONNEKTÖR; UNION - straightImg
Alts
Select
Ref.
9Adet
2text.plp.availability
Parça #
851624C91Açıklama
HORTUM; - hydraulic control valve to hydraulic tube, 27 inch longImg
Alts
Select
Ref.
10Adet
1text.plp.availability
Parça #
851622C11Açıklama
HİDROLİK BORUSU .5'' OD; TUBE - hydraulic cylinder bucket roll-backImg
Alts
Select
Ref.
11Adet
4text.plp.availability
Parça #
131129H1Açıklama
HORTUM; - bucket hydraulic cylinder to tubes, 24 inch long (replaces 675846R91)Img
Alts
Select
Ref.
12Adet
2text.plp.availability
Parça #
853613C92Açıklama
SİLİNDİR; ASSEMBLY - bucket hydraulics parts list Figure 7-70, no longer available, order 1272452C1 cylinder, see belowImg
Alts
Select
Ref.
12Adet
2text.plp.availability
Parça #
1272452C1Açıklama
SİLİNDİR Double Acting, 28.57mm Rod, 466.73mm Stroke; ASSEMBLY - bucket hydraulics, parts list Figure 7-70Img
Alts
Select
Ref.
Adet
4text.plp.availability
Parça #
219-36Açıklama
AKSAM, GRES 45 Degree Elbow, 1/8'' - 27 NPTF; FITTING - grease, 45 degree, 1/8 PT x 7/8 inch (replaces 109462)Img
Alts
Select
Ref.
13Adet
4text.plp.availability
Parça #
218-5106Açıklama
DİRSEK, 90 90 Degree Elbow, 3/4'' - 16 Male JIC x 3/4'' - 16 Male ORB; - 90 degree, 3/4-16 inch flare x adj O-ring boss (replaces 9410977), Includes: Ref. 14Img
Alts
Select
Ref.
14Adet
1text.plp.availability
Parça #
237-6010Açıklama
O HALKASI 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk (Replaces 364885R1)Img
Alts
Select
Ref.
15Adet
4text.plp.availability
Parça #
REFAçıklama
TALİMATLAR; PIN - bucket cylinder rod and boom, for serviceImg
Alts
Select
Ref.
16Adet
2text.plp.availability
Parça #
851444C1Açıklama
PİM; - pivot, bucket cylinder baseImg
Alts
Select
Ref.
Adet
12text.plp.availability
Parça #
495-81192Açıklama
RONDELA 1.16'' ID x 2'' OD x 0.12'' Thk; - flat, 1-5/32 x 2 x 7/64 inch (replaces 21214R1)Img
Alts
Select
Ref.
Adet
2text.plp.availability
Parça #
439-5532Açıklama

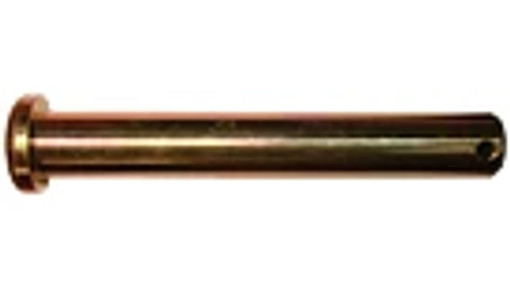

BAŞLI PİM 5/16'' x 2''; PIN - headed, 5/16 x 2 inch (replaces 378484R1)Img
Alts
Select
Ref.
Adet
2text.plp.availability
Parça #
432-812Açıklama
KAMA 3/4'' OAL x 1/8'' W; PIN, SPLIT (COTTER), (Replaces pin 103384) 1/8'' x 3/4''Img
Alts
Select
Ref.
17Adet
1text.plp.availability
Parça #
379045R1Açıklama
KELEPÇE; - hose, hydraulic tube boomImg
Alts
Select
Ref.
Adet
1text.plp.availability
Parça #
413-512Açıklama
CIVATA Hex, 5/16'' - 18 x 3/4'', Gr 5; - hex, 5/16 NC x 3/4 inch (replaces 180077)Img
Alts
Select
Ref.
Adet
1text.plp.availability
Parça #
492-11031Açıklama
KİLİT PULU 5/16''; WASHER, LOCK, (Replaces 120214) 5/16''Img
Alts
Select
Ref.
18Adet
1text.plp.availability
Parça #
851623C11Açıklama
HİDROLİK BORUSU .5'' OD; TUBE - hydraulic cylinder bucket dumpImg
Alts
Select
Ref.
19Adet
1text.plp.availability
Parça #
REFAçıklama
TALİMATLAR; VALVE - hydraulic control, refer to hydraulic control valveImg
Alts
Select
Ref.
Adet
3text.plp.availability
Parça #
413-636Açıklama
CIVATA Hex, 3/8'' - 16 x 2-1/4'', Gr 5; - hex, 3/8 NC x 2-1/4 inch (Replaces 180132)Img
Alts
Select
Ref.
Adet
3text.plp.availability
Parça #
425-106Açıklama
SOMUN 3/8''-16, Cl 5; (Replaces 120377) 3/8''-16, G5Img
Alts
Select
Ref.
Adet
3text.plp.availability
Parça #
492-11038Açıklama
KİLİT PULU 3/8''; (Replaces 120382) 3/8''Img
Alts
Select
Ref.
20Adet
1text.plp.availability
Parça #
851621C1Açıklama
DESTEK; - hydraulic control valve, no longer availableImg
Alts
Select
Ref.
Adet
2text.plp.availability
Parça #
413-516Açıklama
CIVATA Hex, 5/16'' - 18 x 1'', Gr 5; - hex, 5/16 NC x 1 inch (Replaces 180079)Img
Alts
Select
Ref.
Adet
2text.plp.availability
Parça #
425-105Açıklama
SOMUN 5/16''-18 NC, G5; - hex, 5/16 inch NC (Replaces 120376)Img
Alts
Select
Ref.
Adet
2text.plp.availability
Parça #
492-11031Açıklama
KİLİT PULU 5/16''; WASHER, LOCK, (Replaces 120214) 5/16''Img
Alts
Select
Ref.
21Adet
2text.plp.availability
Parça #
1282338C91Açıklama
HIZLI BAĞLANTI, DİŞİ; COUPLING - self-sealing, female, 7/8-14 inch, ISO standard, for use with 1272399C2 (replaces 395150R91)Img
Alts
Select
Ref.
Adet
2text.plp.availability
Parça #
851942C1Açıklama
DİŞ AÇAN VİDA Hex Wash Hd, 5/16''-18 x 1 1/4''; SCREW - self-tapping, hex washer head, 5/16 NC x 1-1/4 inchImg
Alts
Select
Ref.
Adet
2text.plp.availability
Parça #
495-61041Açıklama
RONDELA 10.31mm ID x 25.4mm OD x 1.6mm Thk; (Replaces 619856R1) 3/8'' x 1'' x .063''Img
Alts
Select
Ref.
Adet
1text.plp.availability
Parça #
1341843C1Açıklama
HIZLI BAĞLANTI, ERKE; COUPLER - self-sealing, male, 7/8-14 inch thread, type (replaces 544787R91);The male hydraulic couplers are available to match female couplers on the tractor.Img
Alts
Select
Ref.
Adet
1text.plp.availability
Parça #
1272399C2Açıklama
HIZLI BAĞLANTI, ERKE; COUPLER - self-sealing, male, 7/8 inch NF, ISO standard (replaces 395149R1);The male hydraulic couplers are available to match female couplers on the tractor.Img
Alts
Select
Ref.
Adet
1text.plp.availability
Parça #
1285718C2Açıklama
HIZLI BAĞLANTI, ERKE; COUPLER - self-sealing, male, 3/4-16 inch thread, ISO standard;The male hydraulic couplers are available to match female couplers on the tractor.Img
Alts
Select
Ref.
Adet
1text.plp.availability
Parça #
237-6010Açıklama
O HALKASI 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk (Replaces 364885R1)Img
Alts
Select
Ref.
Adet
1text.plp.availability
Parça #
237-6008Açıklama
O HALKASI 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; 8-1, 90 Duro, .644'' ID x .087'' Thk (Replaces 570828R1)Img
Alts
Select
Ref.
Adet
1text.plp.availability
Parça #
218-5261Açıklama
HİDROLİK KONNEKTÖR 7/8'' - 14 ORB x 3/4'' - 16 ORB; - straight, 7/8-14 male O-ring boss x 3/4 inch female (replaces 407045R1)Img
Alts
Select
Ref.
Adet
1text.plp.availability
Parça #
1252129C1Açıklama
ADAPTÖR 7/8'' - 14 ORB x 3/4'' - 16 ORB; BUSHING - reducer (replaces 407545R1)Img
Alts
Select
Ref.
Adet
1text.plp.availability
Parça #
1282459C1Açıklama
KİT; KIT - coupler tag, male coupler ID tag, consists of (4) tag, black (NSS), (4) tag, green (NSS), (4) tag, blue (NSS), instructions (NSS)Img
Alts
