110 - FLYWHEEL AND HOUSING, 6-590, 6T-590 AND 6TA-590 ENGINE
TABLE OF CONTENTS
DIAGRAM
PART LIST
text.modelpage.clearCallout
Serial Number Window
Build Date
Tümünü Seç
Ref.
Adet
Parça #
text.assembly.alts
Açıklama
text.assembly.image
  • 1
    1
    J903282
    YATAK; - flywheel
  • 2
    8
    854-12040
    CIVATA Hvy Hex, M12 x 40mm, Cl 10.9; - hex flange, 12 - 1.75 x 40 mm, class 10.9
  • 3
    1
    J908095
    MADENİ LEVHA; - cover
  • 5
    2
    J902735
    CIVATA M8 - 1.25 x 21 mm; - hex, plate retaining
  • 7
    1
    J912473

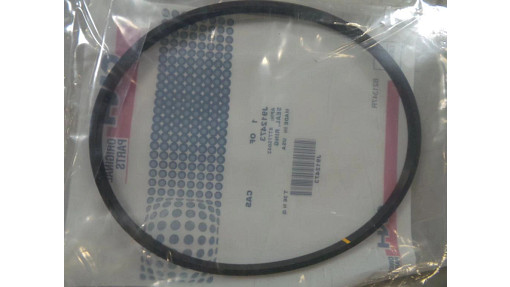

    CONTA 157mm ID x 163.18mm OD x 7.03mm Thk; O-RING -
  • 17
    1
    J910248
    TAPA; - housing
  • 18
    1
    238-5212
    O HALKASI 0.139'' Thk x 0.859'' ID, -212, Cl 5, 75 Duro;
  • 20
    1
    J914432
    VOLAN; ASSEMBLY - crankshaft;Ref # 20 flywheel hole is about 2-3/4'' if looking fo flywheel with about 1-1/4'' hole try part no. J930781. rje-cam 5-09-99
  • 21
    1
    J905427

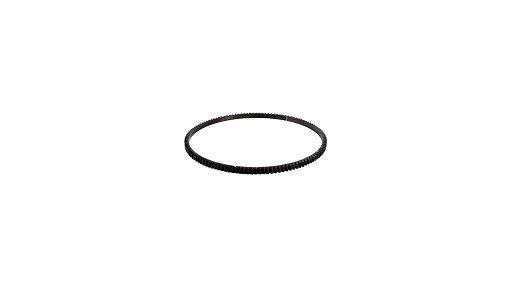

    DİŞLİ; - ring, flywheel
  • 24
    8
    J900269
    RONDELA 12.76mm ID x 25.5mm OD x 1.65mm Thk; - flat, flywheel bolt
  • 25
    8
    J901395
    CIVATA Hex, M12 x 1.25 x 32mm, Cl 12.9; BOLT - hex head, 12 mm - 1.25 x 32 mm
