E20 - TRIKE SCRAPER: FIRESTONE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    1027452
    BAR; - scraper: Firestone/Goodyear
  • 2
    2
    1027451
    BAR; - bolting: Firestone/Goodyear
  • 3
    4
    1011608
    BOLT; BOLT - hex: .50 x 1.75 NC GR5 ZP
  • 4
    2
    1011584
    WASHER; - flat: SAE .50 ZP
  • 5
    4
    231-1448

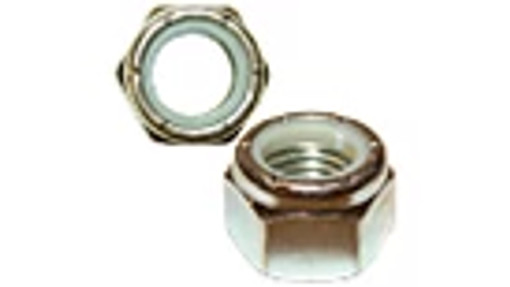

    NUT 1/2''-13, GB; - nylock: .50 NC GR6 ZP
  • 6
    4
    1027463
    BOLT; - hex: .75 x 3.50 NC GR5 ZP
  • 7
    4
    1012634
    WASHER; - flat: SAE .75 ZP
  • 8
    4
    232-14412

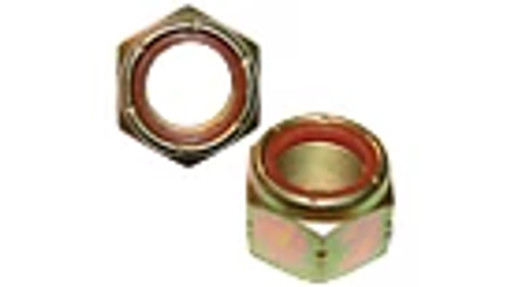

    NUT 3/4''-10, GB; NUT - nylock: .75 NC GR6 ZP
