046 - BOOM, CROWD, BUCKET CYLINDER, D-100 BACKHOE ATTACHMENT
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • AR
    272151
    HYDRAULIC CYLINDER; Boom, Crowd, Bucket Cylinder Assy.
  • 1
    1
    NSS
    NOT SOLD SEPARAT; Barrel Weld Assy.
  • 2
    2
    128999
    O-RING 10.8mm ID x 2.62mm Thk, NBR; -111, 70 Duro, .424'' ID x .103'' Thk
  • 3
    2
    270109
    BACK-UP RING; Back-Up, .438'' ID x .057'' Thk
  • 4
    1
    NSS
    NOT SOLD SEPARAT; Manifold Pipe Assy.
  • 5
    1
    272160
    SPRING;
  • 6
    2
    80710
    LUBE NIPPLE 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, 1/8''-27 x .66 lg
  • 7
    1
    272159
    LOCKING RING; Ring, Lock
  • 8
    1
    272165
    WIPER BLADE; Wiper, Rod
  • 9
    1
    272164
    BACK-UP RING; Back-up
  • 10
    1
    235757
    O-RING 37.7mm ID x 3.53mm Thk, HNBR; 90 Duro, 1.484'' ID x .139'' Thk
  • 11
    1
    272153
    RING NUT; Gland
  • 12
    1
    511284
    O-RING 0.139'' Thk x 2.734'' ID, -232, Cl 5, 75 Duro; 2.734'' ID x .139'' Thk
  • 13
    2
    235784

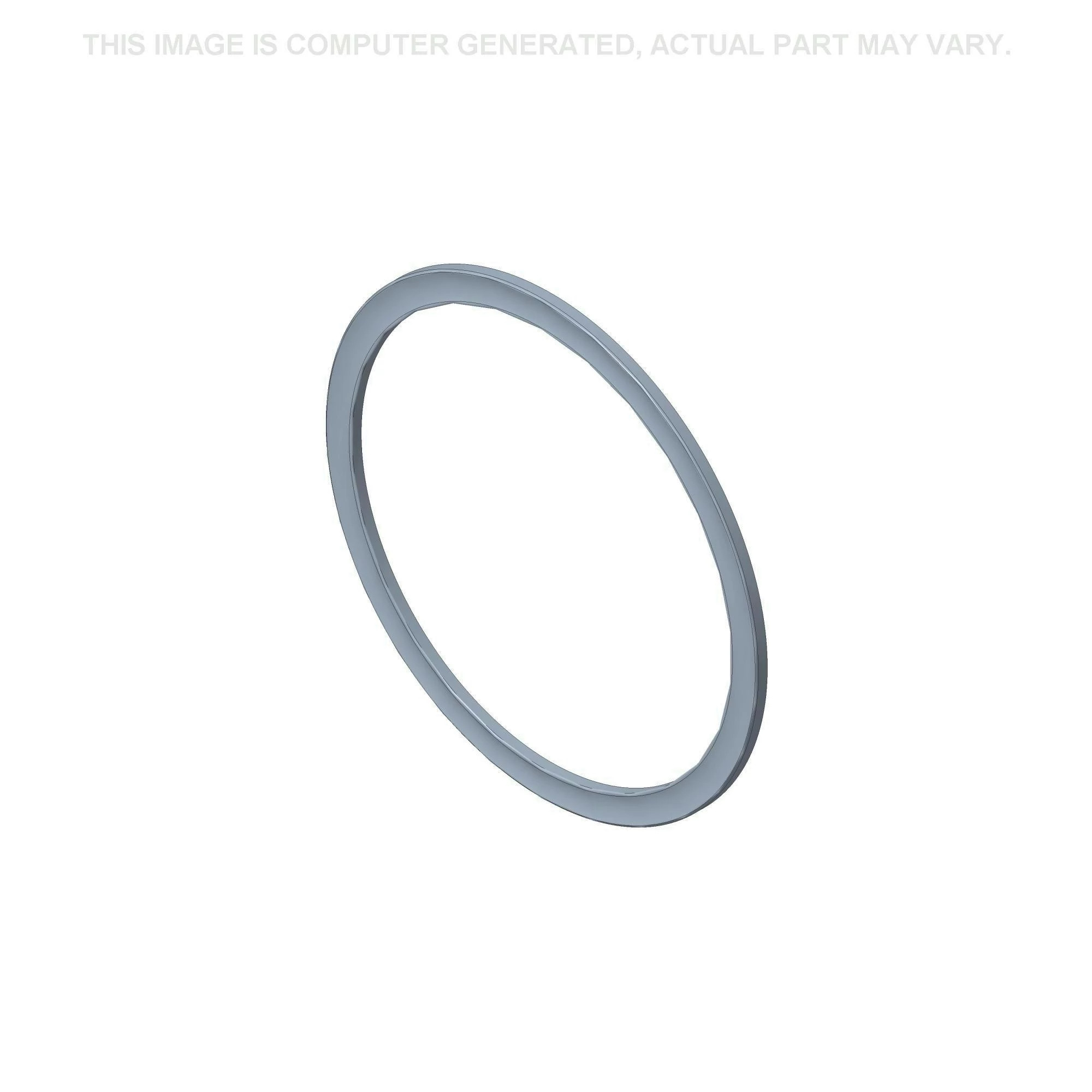

    WASHER 66.62mm ID x 76.43mm OD x 1.52mm Thk; Back-Up, 2.643'' ID x .064'' Thk
  • 14
    1
    510204
    O-RING 66mm ID x 5.33mm Thk, NBR; 2.625'' ID x .210'' Thk
  • 15
    1
    272154
    PISTON;
  • 16
    1
    514098
    O-RING 21.9mm ID x 1.78mm Thk, NBR; .864'' ID x .070'' Thk
  • 17
    1
    514101

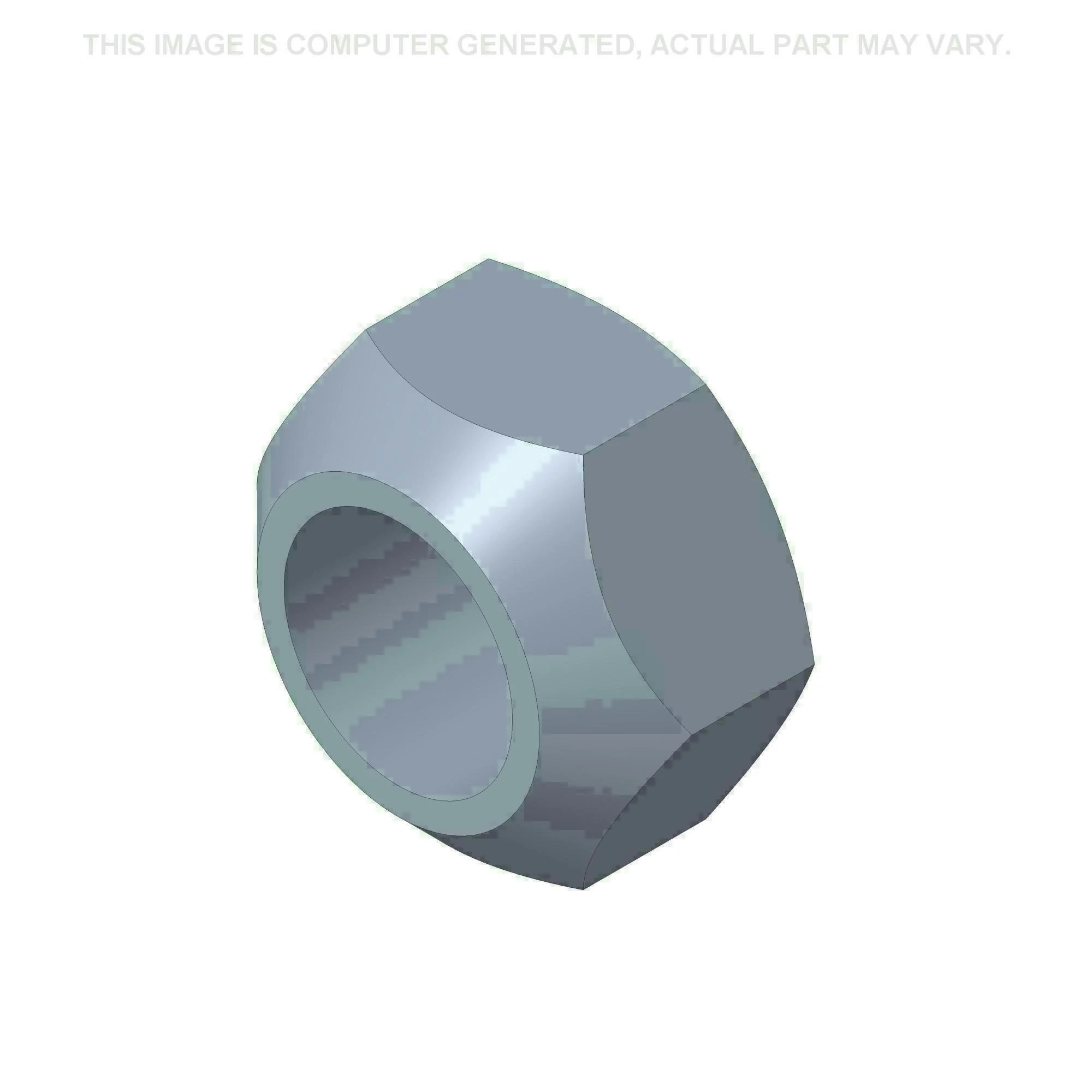

    LOCK NUT Hex, 1'' - 14; Nut, Lock, G8, 1''-14
  • 18
    1
    272156
    ROD; Piston Rod Weld Assy.
  • AR
    272161
    SEAL KIT; Kit, Seal Repair, Includes: Ref. 7 thru 10, 12thru 14, & 16
  • AR
    272163
    MANIFOLD; Kit, Manifold Repair, Includes: Ref. 2 thru 5
