35.204.01 - VARIABLE SPEED FEEDER/HEADER DRIVE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    87577617
    HYDROSTATIC PUMP 71 CC;
  • 1
    1
    87577617R
    REMAN-HYDROSTAT PUMP 71 CC;
  • 1
    1
    87577617C
    CORE-HYDRAULIC PUMP 71 CC; Return Number
  • 2
    1
    87621903
    O-RING KIT 39mm ID x 50mm OD x 2mm Thk;
  • 3
    1
    86598099
    O-RING 2.2mm Thk x 11.3mm ID, Cl 6;
  • 4
    1
    9993141
    O-RING 0.07'' Thk x 0.364'' ID, -12, Cl 6, 90 Duro;
  • 5
    2
    86980422
    BOLT Hex, M12 x 35mm, Cl 8.8;
  • 6
    1
    87598659
    ELBOW; Includes Refs 33 & 34
  • 7
    1
    87607845
    PLUG; Includes Ref 2
  • 8
    1
    86579691
    90 ELBOW 90 Degree, 13/16''-18 ORFS x M18 x 1.5 ORB; Includes Ref 22 & 32
  • 9
    1
    86996948
    MOTOR, HYDRAULIC;
  • 9
    1
    86981121R
    REMAN-HYD MOTOR 40.6 CC;
  • 9
    1
    86981121C
    CORE-MOTOR HYDRAULIC 40.6 CC; Return Number
  • 10
    8
    86625256
    WASHER 13.3mm ID x 28.5mm OD x 4mm Thk, HTS, ZND;
  • 11
    6
    87022683
    BOLT BOLT M12X40 FULL 10.9 DOR;

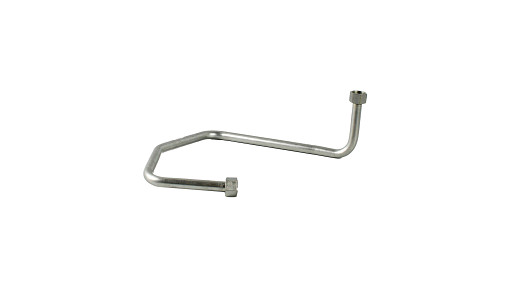

  • 12
    1
    87587892
    HYD TUBE 1'' OD; Feeder Pump To Feeder-Header Motor
  • 13
    1
    87587898
    HYD TUBE 1'' OD; Feeder Pump To Feeder-Header Motor
  • 14
    1
    87587899
    HYD TUBE 0.5'' OD; Feeder Pump To Feeder-Header Motor
  • 15
    1
    86598104
    O-RING 2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro;
  • 16
    1
    274336
    O-RING 0.103'' Thk x 4.737'' ID, -158, Cl 5, 75 Duro;
  • 17
    1
    9828498
    O-RING 0.103'' Thk x 3.987'' ID, -155, Cl 5, 75 Duro;
  • 18
    1
    86995997
    HYD TUBE 0.75'' OD; Feeder Gearbox Drain
  • 19
    1
    86995995
    HYD TUBE 0.375'' OD; Feeder Clutch Pressure
  • 20
    1
    86579671
    HYD CONNECTOR 11/16'' - 16 ORFS x M14 x 1.5 ORB; Includes: Refs 35 & 36
  • 21
    1
    86579683
    HYD CONNECTOR 1-3/16''-12 ORFS x M33 x 2.0 ORB; Includes: Refs 15 & 34
  • 22
    1
    86598101
    O-RING 2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro;
  • 23
    1
    87686069
    HOSE; Feeder Pump Drain, L = 465mm
  • 24
    2
    86999893
    CLAMP;
  • 25
    4
    87000242
    CHANNEL;
  • 26
    4
    120061
    BOLT Hex, M8 x 1.25 x 60mm, Cl 8.8;
  • 27
    5
    86629542
    LOCK NUT Hex, M8 x 1.25, Cl 8, ZND;
  • 28
    1
    87624694
    HYD TUBE 12 mm OD x 202.4 mm L; Feeder Pump To Charge Pressure Manifold
  • 29
    1
    87000149
    CLAMP;
  • 30
    2
    87000230
    PLATE 30mm x 102mm, 9mm D, W1, ZND;
  • 31
    1
    300510
    BOLT Hex, M8 x 1.25 x 65mm, Cl 8.8;
  • 32
    1
    9992298
    O-RING 0.07'' Thk x 0.489'' ID, -14, Cl 6, 90 Duro;
  • 33
    2
    87621902
    O-RING;
  • 34
    2
    9991976
    O-RING 0.07'' Thk x 0.739'' ID, -18, Cl 6, 90 Duro;
  • 35
    1
    86598099
    O-RING 2.2mm Thk x 11.3mm ID, Cl 6;
  • 36
    1
    9993141
    O-RING 0.07'' Thk x 0.364'' ID, -12, Cl 6, 90 Duro;
