112 - ENGINE GASKET KITS, 6-590, 6T-590 AND 6TA-590 ENGINE, VALVE GRIND
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    A77675
    GASKET KIT; - valve grind (See Note A)
  • 2
    1
    J903301
    GASKET; - housing, thermostat
  • 3
    12
    J901097
    SEAL; - valve

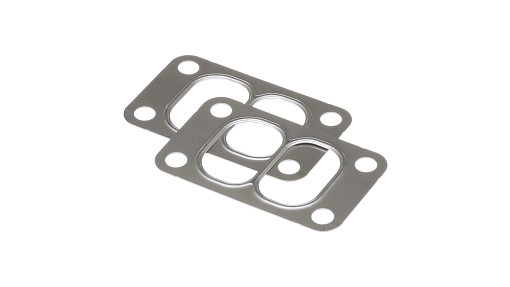

  • 4
    1
    J901356
    GASKET Bolt Hole (Ctr to Ctr) 44.5mm x 85.9mm;
  • 5
    6
    J905443
    MANIFOLD GASKET; - exhaust manifold
  • 6
    1
    J914029
    GASKET; - intake manifold
  • 7
    1
    J914388
    GASKET Bolt Hole (Ctr to Ctr) 50mm; - drain tube
  • 8
    6
    J902363
    O-RING 30mm ID x 48mm OD x 3mm Thk; - oil fill cap
  • 9
    6
    J902666
    GASKET; SEAL - rocker cover
  • 10
    6
    J928406
    ISOLATOR; O-RING - cover bolt (Replaces J910824)
  • 11
    6

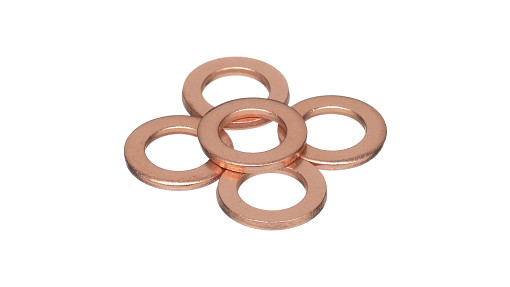

    J900808
    SEAL 9mm Injector Tip; - injector
  • 12
    6
    J903380
    SEAL; - connector
  • 15
    1
    A77674
    GASKET KIT; - engine block (See Note B)

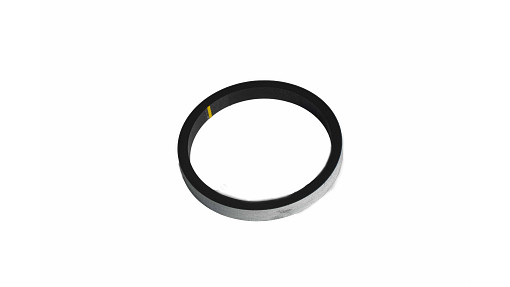

  • 16
    1
    J903475
    SEALING RING 72.39mm ID x 90.39mm OD x 9mm Thk; - cover

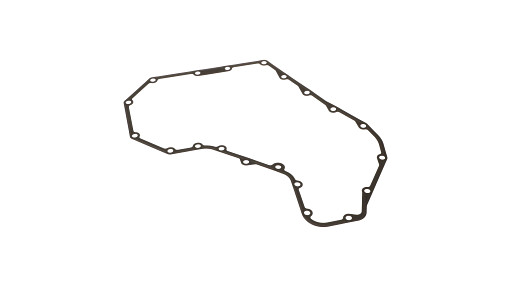

  • 17
    1
    J914385
    GASKET 1.02mm Thk; - front cover
  • 18
    1
    J916131
    GASKET; - gear housing
  • 19
    1
    J905595
    GASKET; - pin housing, timing
  • 20
    1
    J913994
    O-RING; - sealing
  • 22
    1
    J913192
    GASKET; - cover plate;Item 22. Order J929751 in this application
  • 23
    1
    238-5341
    O-RING 0.21'' Thk x 3.475'' ID, -341, Cl 5, 75 Duro;
  • 24
    1
    J904776
    GASKET; - tappet cover
  • 25
    1
    J914386
    GASKET; - seal retainer
  • 26
    1
    J906697
    SEAL Square, 5.16mm Thk x 50.17mm ID; O-RING - sealing, 50 mm ID
  • 27
    1
    J918256
    GASKET; - cooler core, oil
  • 29
    1
    J918257
    GASKET; - filter head, oil cooler

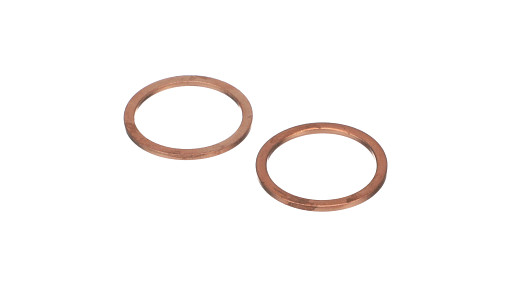

  • 30
    1
    J902425
    SEALING WASHER 22.2mm ID x 26.9mm OD x 1.75mm Thk; - seal, plug
  • 31
    1
    J906696
    SEAL 41mm ID x 43mm OD x 2.5mm H; O-RING - sealing
  • 32
    1
    J914389
    GASKET; - pump mounting
  • 33
    1
    J912473
    SEAL 157mm ID x 163.18mm OD x 7.03mm Thk; O-RING -
  • 35
    1
    J914304
    GASKET; - mounting, pump
  • 37
    6
    J900267
    SEAL; ASSEMBLY - cover bolt
  • 38
    1
    238-5212
    O-RING 0.139'' Thk x 0.859'' ID, -212, Cl 5, 75 Duro;

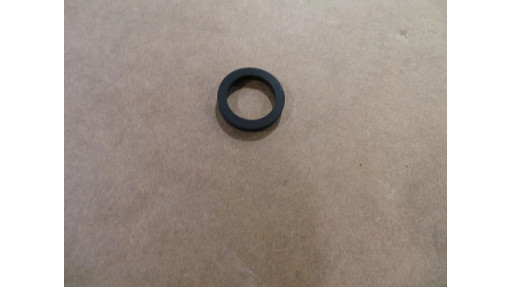

  • 39
    1
    J906695
    SEAL Square, 0.103'' Thk x 0.549'' ID, -113; O-RING - sealing, 14 mm ID

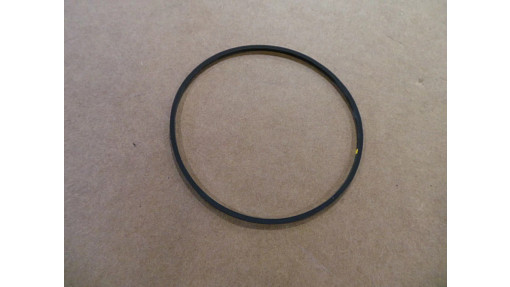

  • 40
    1
    J906694
    SEALING RING Square, 1.68mm Thk x 69.57mm ID, -39; O-RING - sealing, 70 mm ID
