TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11ENGINE; Engine, ISM, L565, LX565 & SL45B, BSN 77886
-
11ENGINE; Engine, ISM, L565, LX565 & SL45B, Slow Fan Speed, No Longer Available, Order Long Block SBA133640, ASN 77887
-
11CORE-EPA ENGINE; Block, Short, ISM, L565, LX565 & SL45B, BSN 77886
-
11SHORT ENGINE; Block, Short, ISM, L565, LX565 & SL45B, BSN 77886
-
11REMAN ENGINE NON EPA (non regulated); L565 & LX565, 4 Cyl., 121.7 CID, Naturally Aspirated, w/ Zexel Fuel System, N.A. Only
-
11CORE-REPLACEMENT ENG ENGINE; Return Number, NA Only
-
11CORE-EPA ENGINE; Block, Long, ISM, L565, LX565 & SL45B, ASN 77887, Slow Fan Speed, Engine Does Not Include Starter, Flywheel, Flywheel Housing, Cooling Fan, Fan Pulley, Fan Belt, Fan Holder, Alternator or Mounting Parts, Exhaust Manifold or Gasket, Oil Cooler
-
11ENGINE; Block, Long, ISM, L565, LX565 & SL45B, ASN 77887, Slow Fan Speed, Engine Does Not Include Starter, Flywheel, Flywheel Housing, Cooling Fan, Fan Pulley, Fan Belt, Fan Holder, Alternator or Mounting Parts, Exhaust Manifold or Gasket, Oil Cooler
-
11GASKET KIT; Kit, Gasket, L565, LX565 & SL45B
-
11ENGINE; Engine, ISM, LX665 & SL55B, BSN 77888
-
11REMAN-REPLACEMENT EN; Engine, ISM, LX665 & SL55B, BSN 77888
-
11CORE-REPLACEMENT ENG ENGINE; Return Number
-
11ENGINE; Engine, ISM, LX665 & SL55B, Slow Fan Speed, ASN 77889
-
11REMAN-REPLACEMENT EN; L565, LX565, LX665 All ASN 77889 (1/94-9/99), Reman for New P/N 86557221
-
11CORE-REPLACEMENT ENG ENGINE; Return Number
-
11SHORT ENGINE; Block, Short, ISM, LX665 & SL55B, BSN 77888
-
11CORE-EPA ENGINE; Block, Short, ISM, LX665 & SL55B, BSN 77888
-
11CYLINDER BLOCK; Block, Long, ISM, LX665 & SL55B, Slow Fan Speed, ASN 77889
-
11CORE-EPA ENGINE; Block, Long, ISM, LX665 & SL55B, Slow Fan Speed, ASN 77889
-
11REMAN ENGINE NON EPA (non regulated) 39kW, 2L, 4 Cylinders, W/ Turbocharger; L565, LX565, LX665 All ASN 77889 (1/94-9/99), Reman for New P/N SBA133642
-
11CORE-REPLACEMENT ENG ENGINE; L565, LX565, LX665 All ASN 77889 (1/94-9/99), Reman for New P/N SBA133642
-
11CORE-REPLACEMENT ENG 39kW, 2L, 4 Cylinders, W/ Turbocharger; Return Number
-
11KIT; Kit, Gasket, LX665 & SL55B, Replaces 87760647, See Figure 05A01 (02)
-
21BOLT Hex, 5/8'' - 11 x 3 3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 3-3/4''
-
31WASHER M17 x 63 x 1/4'' Thk; WASHER, M17 x 63 x 1/4'' Thk
-
41INSULATOR; Mount
-
52BOLT Hex, 3/8'' - 16 x 1 3/4'', Gr 8; Bolt, Hex, 3/8''-16 x 1 3/4'', G8
-
66WASHER 10.3mm ID x 22.2mm OD x 2.7mm Thk, HTS, ZND; WASHER, (3/8'') M10 x 22.2 x 2.87 Thk, HT
-
71SUPPORT; Support Weld Assy.
-
81SMALL PUMP; Pump, Gear, L565, LX565 & SL45B, See Figure 06D02 & 3
-
81REMAN-HYD PUMP HYD PUMP; Pump, Gear, L565, LX565 & SL45B
-
81CORE-HYDRAULIC PUMP HYD PUMP; Return number
-
81SMALL PUMP; Pump, Gear, LX665 & SL55B, See Figure 06D04 & 5
-
81REMAN-HYD PUMP HYD PUMP; Pump, Gear, LX665 & SL55B
-
81CORE-HYDRAULIC PUMP HYDRAULIC PUMP; Return Number
-
92SERRATED BOLT Hex Flg, 3/8'' - 16 x 1''; Bolt, Hex Flg, 3/8''-16 x 1'', Serr
-
101PISTON; Pump, Piston Assy., Front, See Figure 06D02
-
101REMAN-HYD PUMP; Pump, Piston Assy., Front
-
101CORE-HYDRAULIC PUMP HYDRAULIC PUMP; Return Number
-
114BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5; BOLT, Hex, 1/2''-13 x 1 1/4'', G5, Full Thd
-
124WASHER 13.1mm ID x 25.4mm OD x 3.68mm Thk; WASHER, (1/2'') M13 x 25 x 3.5, HT
-
131COUPLING 41T; Coupler
-
141O-RING 0.07'' Thk x 3.989'' ID, -45, Cl 5, 75 Duro; O-Ring, -045, 70 Duro, 3.989'' ID x .070'' Thk, Located Between Front & Rear Piston Pump
-
151PISTON; Pump, Piston, Rear, See Figure 06D03
-
151REMAN-HYD PUMP; REMANUFACTURED HYDRAULIC PISTON PUMP
-
151CORE-HYDRAULIC PUMP HYDRAULIC PUMP; Return Number, HYDRAULIC PISTON PUMP
-
161COVER; Cover, Flexplate
-
1712BOLT Hex, 3/8'' - 16 x 1'', Gr 5; BOLT, Hex, 3/8''-16 x 1'', G5, Full Thd
-
1814BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk; WASHER, BELLEVILLE, M10
-
198BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; Screw, Cap, HH, G5, 5/16''-18 x 3/4''
-
2010LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
-
211DISC 242.6mm OD; Flexplate Assy., See Service Bulletin 8/96-I6
-
222BOLT Hex, 1/2'' - 13 x 3'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 3''
-
232WASHER 13.5mm ID x 57.15mm OD x 4.8mm Thk; Washer, Hardened, 1/2''
-
244NUT 3/8'' - 16, Gr 5; NUT, G5, 3/8''-16
-
252INSULATOR; Mount, Isolation
-
264HEX SOC SCREW BTN HD, 3/8'' - 16 x 7/8''; Screw, Cap, HS, Button Hd, 3/8''-16 x 7/8''
-
272CUP; Cup
-
284BOLT Hex, M14 x 1.5 x 30mm, Cl 8.8; Screw, Cap, HH, CL 8.8, M14 x 1.5 x 30
-
294SPACER 14.6 mm ID x 35.17 mm OD x 3.4 mm Thk; WASHER, 19/32'' x 1 1/4'' x .135'' Thk, HT
-
302LOCK NUT 1/2'' - 13, Gr C; Nut, Lock, GC, 1/2''-13
-
312WASHER; Washer, Heat Treated
-
321SUPPORT; Support Weld Assy., RH, See Figure 05A02 & 3 For New Style
-
332BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd; BOLT, HH, CL 8.8, M8 x 1.25 x 20
-
341BRACKET; Bracket
-
352BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk; WASHER, BELLEVILLE, M6
-
362BOLT Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd; BOLT, Hex, M6 x 16, Cl 8.8, Full Thd
-
371ENGINE MOUNT; Bracket
-
401SUPPORT; Support Weld Assy., LH, See Figure 05A02 & 3 For New Style
-
412BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; BOLT, Hex, 3/8''-16 x 1 1/4'', G5, Full Thd
-
422SPACER; Spacer, Use with Cover Ref. 16, 9848316
-
431O-RING 0.07'' Thk x 3.239'' ID, -42, Cl 5, 75 Duro; O-Ring, 3.239'' ID x .070'' Thk, Located Between Gear & Front Piston Pump
-
441ANGLE; Angle, Flexplate Cover
-
452LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
46ARSEAL KIT; Kit, Seals, High Temp., Services Ref. 8, 10 & 15
Select All
Select
Ref.
1Qty
1Availability
Part #
9616594Description
ENGINE; Engine, ISM, L565, LX565 & SL45B, BSN 77886Img
Alts
Select
Ref.
1Qty
1Availability
Part #
86557220Description
ENGINE; Engine, ISM, L565, LX565 & SL45B, Slow Fan Speed, No Longer Available, Order Long Block SBA133640, ASN 77887Img
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA110006810ECDescription
CORE-EPA ENGINE; Block, Short, ISM, L565, LX565 & SL45B, BSN 77886Img
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA110006810Description
SHORT ENGINE; Block, Short, ISM, L565, LX565 & SL45B, BSN 77886Img
Alts
Select
Ref.
1Qty
1Availability
Part #
87298316Description

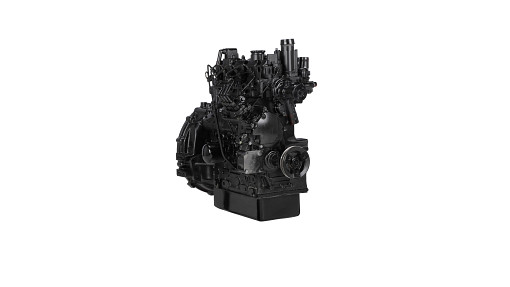

REMAN ENGINE NON EPA (non regulated); L565 & LX565, 4 Cyl., 121.7 CID, Naturally Aspirated, w/ Zexel Fuel System, N.A. OnlyImg
Alts
Select
Ref.
1Qty
1Availability
Part #
87298317Description
CORE-REPLACEMENT ENG ENGINE; Return Number, NA OnlyImg
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA133640ECDescription
CORE-EPA ENGINE; Block, Long, ISM, L565, LX565 & SL45B, ASN 77887, Slow Fan Speed, Engine Does Not Include Starter, Flywheel, Flywheel Housing, Cooling Fan, Fan Pulley, Fan Belt, Fan Holder, Alternator or Mounting Parts, Exhaust Manifold or Gasket, Oil CoolerImg
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA133640Description
ENGINE; Block, Long, ISM, L565, LX565 & SL45B, ASN 77887, Slow Fan Speed, Engine Does Not Include Starter, Flywheel, Flywheel Housing, Cooling Fan, Fan Pulley, Fan Belt, Fan Holder, Alternator or Mounting Parts, Exhaust Manifold or Gasket, Oil CoolerImg
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA195906990Description
GASKET KIT; Kit, Gasket, L565, LX565 & SL45BImg
Alts
Select
Ref.
1Qty
1Availability
Part #
9827706Description
ENGINE; Engine, ISM, LX665 & SL55B, BSN 77888Img
Alts
Select
Ref.
1Qty
1Availability
Part #
87298318Description
REMAN-REPLACEMENT EN; Engine, ISM, LX665 & SL55B, BSN 77888Img
Alts
Select
Ref.
1Qty
1Availability
Part #
87298319Description
CORE-REPLACEMENT ENG ENGINE; Return NumberImg
Alts
Select
Ref.
1Qty
1Availability
Part #
86557221Description
ENGINE; Engine, ISM, LX665 & SL55B, Slow Fan Speed, ASN 77889Img
Alts
Select
Ref.
1Qty
1Availability
Part #
87298318Description
REMAN-REPLACEMENT EN; L565, LX565, LX665 All ASN 77889 (1/94-9/99), Reman for New P/N 86557221Img
Alts
Select
Ref.
1Qty
1Availability
Part #
87298319Description
CORE-REPLACEMENT ENG ENGINE; Return NumberImg
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA110006830Description
SHORT ENGINE; Block, Short, ISM, LX665 & SL55B, BSN 77888Img
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA110006830ECDescription
CORE-EPA ENGINE; Block, Short, ISM, LX665 & SL55B, BSN 77888Img
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA133642Description
CYLINDER BLOCK; Block, Long, ISM, LX665 & SL55B, Slow Fan Speed, ASN 77889Img
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA133642ECDescription
CORE-EPA ENGINE; Block, Long, ISM, LX665 & SL55B, Slow Fan Speed, ASN 77889Img
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA133698RDescription
REMAN ENGINE NON EPA (non regulated) 39kW, 2L, 4 Cylinders, W/ Turbocharger; L565, LX565, LX665 All ASN 77889 (1/94-9/99), Reman for New P/N SBA133642Img
Alts
Select
Ref.
1Qty
1Availability
Part #
87298763Description
CORE-REPLACEMENT ENG ENGINE; L565, LX565, LX665 All ASN 77889 (1/94-9/99), Reman for New P/N SBA133642Img
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA133698CDescription
CORE-REPLACEMENT ENG 39kW, 2L, 4 Cylinders, W/ Turbocharger; Return NumberImg
Alts
Select
Ref.
1Qty
1Availability
Part #
SBA195907000Description
KIT; Kit, Gasket, LX665 & SL55B, Replaces 87760647, See Figure 05A01 (02)Img
Alts
Select
Ref.
2Qty
1Availability
Part #
16445Description
BOLT Hex, 5/8'' - 11 x 3 3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 3-3/4''Img
Alts
Select
Ref.
3Qty
1Availability
Part #
719922Description

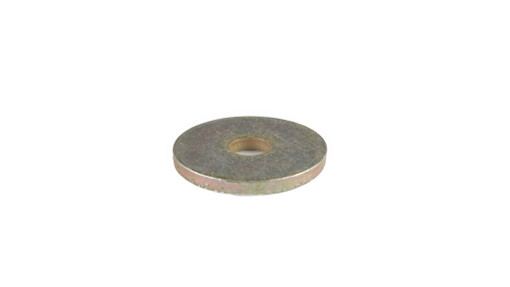

WASHER M17 x 63 x 1/4'' Thk; WASHER, M17 x 63 x 1/4'' ThkImg
Alts
Select
Ref.
5Qty
2Availability
Part #
280589Description
BOLT Hex, 3/8'' - 16 x 1 3/4'', Gr 8; Bolt, Hex, 3/8''-16 x 1 3/4'', G8Img
Alts
Select
Ref.
6Qty
6Availability
Part #
285072Description
WASHER 10.3mm ID x 22.2mm OD x 2.7mm Thk, HTS, ZND; WASHER, (3/8'') M10 x 22.2 x 2.87 Thk, HTImg
Alts
Select
Ref.
8Qty
1Availability
Part #
86528339Description

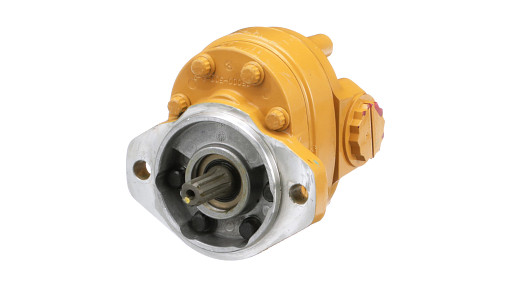

SMALL PUMP; Pump, Gear, L565, LX565 & SL45B, See Figure 06D02 & 3Img
Alts
Select
Ref.
8Qty
1Availability
Part #
86528339RDescription

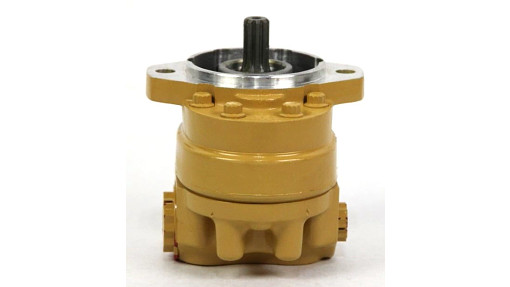

REMAN-HYD PUMP HYD PUMP; Pump, Gear, L565, LX565 & SL45BImg
Alts
Select
Ref.
8Qty
1Availability
Part #
86528339CDescription
CORE-HYDRAULIC PUMP HYD PUMP; Return numberImg
Alts
Select
Ref.
8Qty
1Availability
Part #
86528340Description

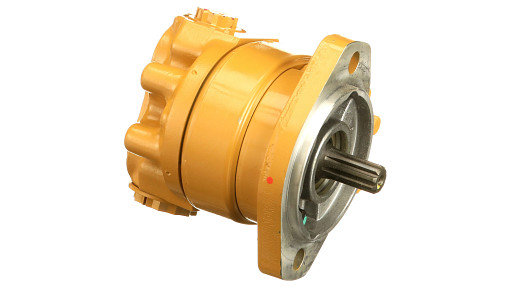

SMALL PUMP; Pump, Gear, LX665 & SL55B, See Figure 06D04 & 5Img
Alts
Select
Ref.
8Qty
1Availability
Part #
86528340RDescription

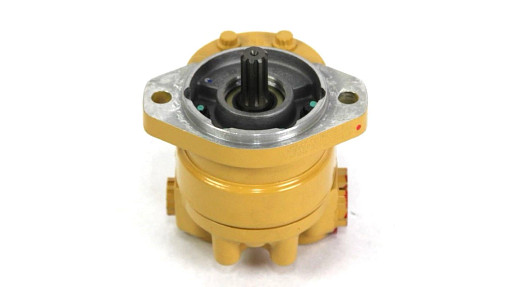

REMAN-HYD PUMP HYD PUMP; Pump, Gear, LX665 & SL55BImg
Alts
Select
Ref.
8Qty
1Availability
Part #
86528340CDescription
CORE-HYDRAULIC PUMP HYDRAULIC PUMP; Return NumberImg
Alts
Select
Ref.
9Qty
2Availability
Part #
9706726Description

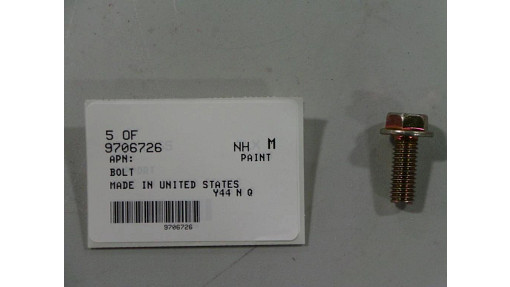

SERRATED BOLT Hex Flg, 3/8'' - 16 x 1''; Bolt, Hex Flg, 3/8''-16 x 1'', SerrImg
Alts
Select
Ref.
10Qty
1Availability
Part #
9825925Description

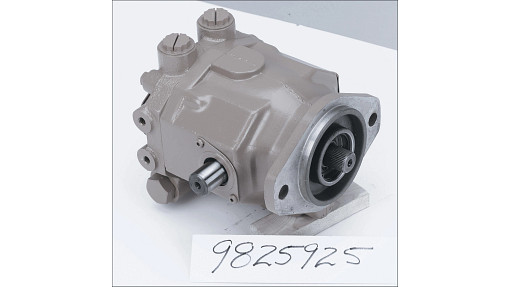

PISTON; Pump, Piston Assy., Front, See Figure 06D02Img
Alts
Select
Ref.
10Qty
1Availability
Part #
86643685Description
REMAN-HYD PUMP; Pump, Piston Assy., FrontImg
Alts
Select
Ref.
10Qty
1Availability
Part #
86643686Description
CORE-HYDRAULIC PUMP HYDRAULIC PUMP; Return NumberImg
Alts
Select
Ref.
11Qty
4Availability
Part #
87670Description
BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5; BOLT, Hex, 1/2''-13 x 1 1/4'', G5, Full ThdImg
Alts
Select
Ref.
12Qty
4Availability
Part #
65319Description
WASHER 13.1mm ID x 25.4mm OD x 3.68mm Thk; WASHER, (1/2'') M13 x 25 x 3.5, HTImg
Alts
Select
Ref.
14Qty
1Availability
Part #
9706914Description

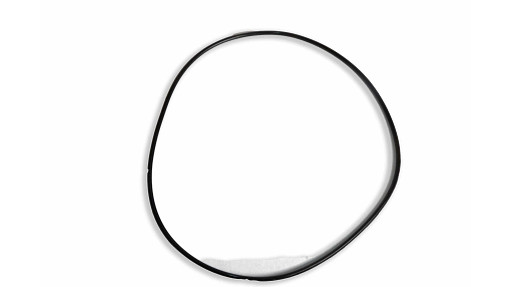

O-RING 0.07'' Thk x 3.989'' ID, -45, Cl 5, 75 Duro; O-Ring, -045, 70 Duro, 3.989'' ID x .070'' Thk, Located Between Front & Rear Piston PumpImg
Alts
Select
Ref.
15Qty
1Availability
Part #
9825924Description
PISTON; Pump, Piston, Rear, See Figure 06D03Img
Alts
Select
Ref.
15Qty
1Availability
Part #
86643683Description

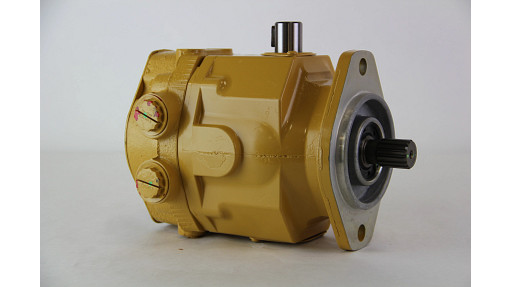

REMAN-HYD PUMP; REMANUFACTURED HYDRAULIC PISTON PUMPImg
Alts
Select
Ref.
15Qty
1Availability
Part #
84443684Description
CORE-HYDRAULIC PUMP HYDRAULIC PUMP; Return Number, HYDRAULIC PISTON PUMPImg
Alts
Select
Ref.
17Qty
12Availability
Part #
88206Description
BOLT Hex, 3/8'' - 16 x 1'', Gr 5; BOLT, Hex, 3/8''-16 x 1'', G5, Full ThdImg
Alts
Select
Ref.
18Qty
14Availability
Part #
140045Description
BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk; WASHER, BELLEVILLE, M10Img
Alts
Select
Ref.
19Qty
8Availability
Part #
87872Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; Screw, Cap, HH, G5, 5/16''-18 x 3/4''Img
Alts
Select
Ref.
20Qty
10Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''Img
Alts
Select
Ref.
21Qty
1Availability
Part #
86521866Description
DISC 242.6mm OD; Flexplate Assy., See Service Bulletin 8/96-I6Img
Alts
Select
Ref.
22Qty
2Availability
Part #
87339Description
BOLT Hex, 1/2'' - 13 x 3'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 3''Img
Alts
Select
Ref.
23Qty
2Availability
Part #
694478Description
WASHER 13.5mm ID x 57.15mm OD x 4.8mm Thk; Washer, Hardened, 1/2''Img
Alts
Select
Ref.
24Qty
4Availability
Part #
9628503Description
NUT 3/8'' - 16, Gr 5; NUT, G5, 3/8''-16Img
Alts
Select
Ref.
26Qty
4Availability
Part #
87499Description
HEX SOC SCREW BTN HD, 3/8'' - 16 x 7/8''; Screw, Cap, HS, Button Hd, 3/8''-16 x 7/8''Img
Alts
Select
Ref.
28Qty
4Availability
Part #
9516470Description
BOLT Hex, M14 x 1.5 x 30mm, Cl 8.8; Screw, Cap, HH, CL 8.8, M14 x 1.5 x 30Img
Alts
Select
Ref.
29Qty
4Availability
Part #
143479Description
SPACER 14.6 mm ID x 35.17 mm OD x 3.4 mm Thk; WASHER, 19/32'' x 1 1/4'' x .135'' Thk, HTImg
Alts
Select
Ref.
30Qty
2Availability
Part #
88871Description

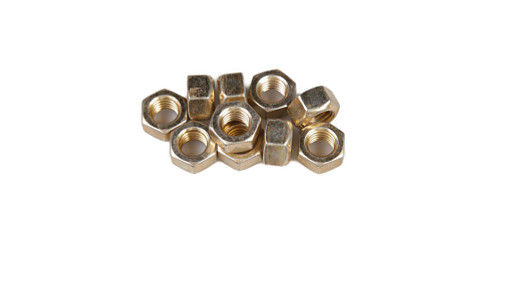

LOCK NUT 1/2'' - 13, Gr C; Nut, Lock, GC, 1/2''-13Img
Alts
Select
Ref.
32Qty
1Availability
Part #
9844492Description
SUPPORT; Support Weld Assy., RH, See Figure 05A02 & 3 For New StyleImg
Alts
Select
Ref.
33Qty
2Availability
Part #
120104Description
BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd; BOLT, HH, CL 8.8, M8 x 1.25 x 20Img
Alts
Select
Ref.
35Qty
2Availability
Part #
322357Description
BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk; WASHER, BELLEVILLE, M6Img
Alts
Select
Ref.
36Qty
2Availability
Part #
86508568Description
BOLT Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd; BOLT, Hex, M6 x 16, Cl 8.8, Full ThdImg
Alts
Select
Ref.
40Qty
1Availability
Part #
9804182Description
SUPPORT; Support Weld Assy., LH, See Figure 05A02 & 3 For New StyleImg
Alts
Select
Ref.
41Qty
2Availability
Part #
88011Description
BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; BOLT, Hex, 3/8''-16 x 1 1/4'', G5, Full ThdImg
Alts
Select
Ref.
42Qty
2Availability
Part #
86506452Description
SPACER; Spacer, Use with Cover Ref. 16, 9848316Img
Alts
Select
Ref.
43Qty
1Availability
Part #
272310Description

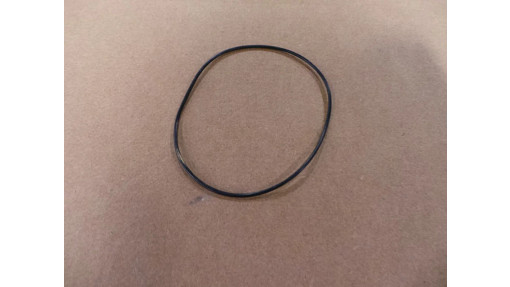

O-RING 0.07'' Thk x 3.239'' ID, -42, Cl 5, 75 Duro; O-Ring, 3.239'' ID x .070'' Thk, Located Between Gear & Front Piston PumpImg
Alts
Select
Ref.
44Qty
1Availability
Part #
86501379Description
ANGLE; Angle, Flexplate CoverImg
Alts
Select
Ref.
45Qty
2Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
46Qty
ARAvailability
Part #
86599292Description
SEAL KIT; Kit, Seals, High Temp., Services Ref. 8, 10 & 15Img
Alts
