TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11EXHAUST MANIFOLD; Manifold, Exhaust
-

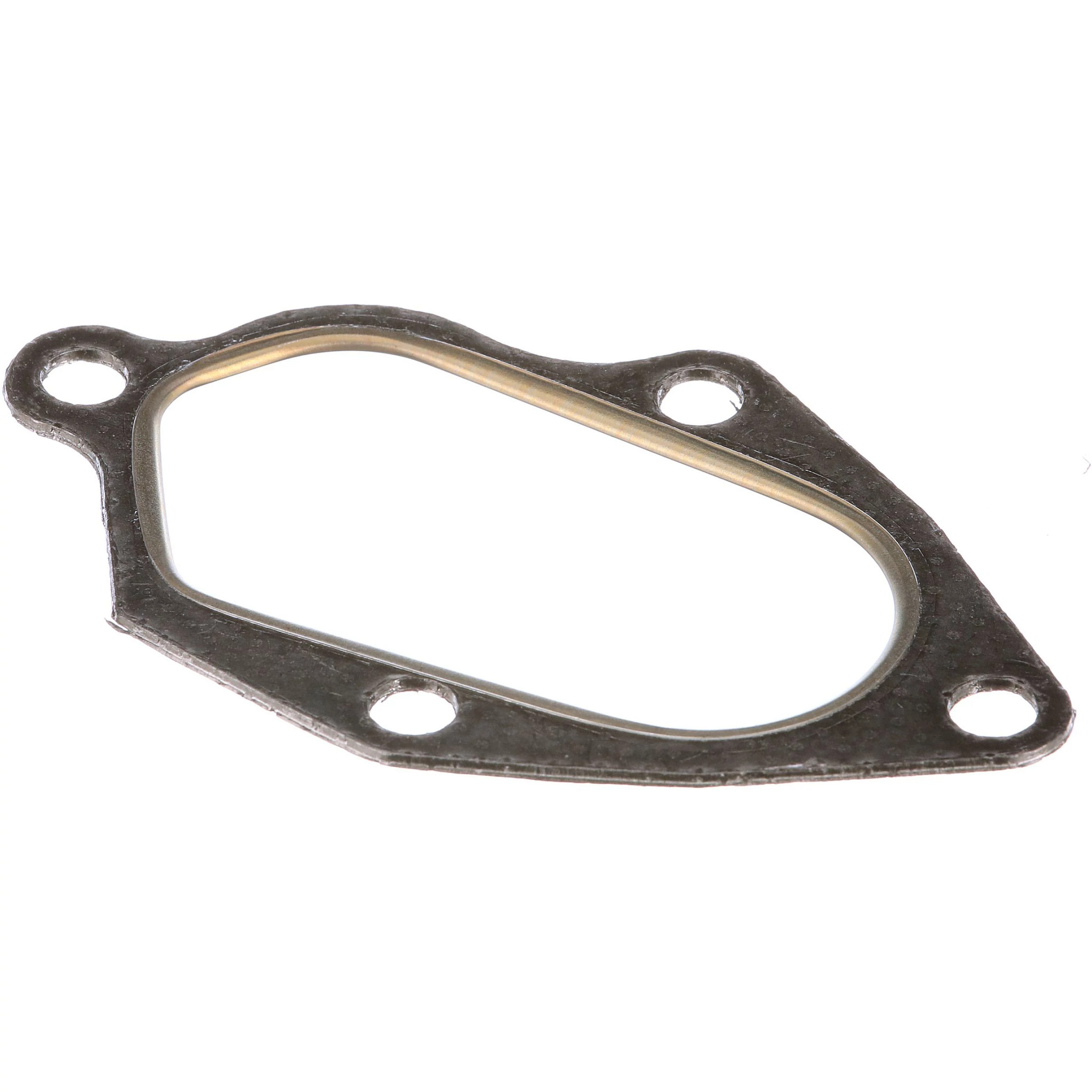

21MANIFOLD GASKET; Gasket
-

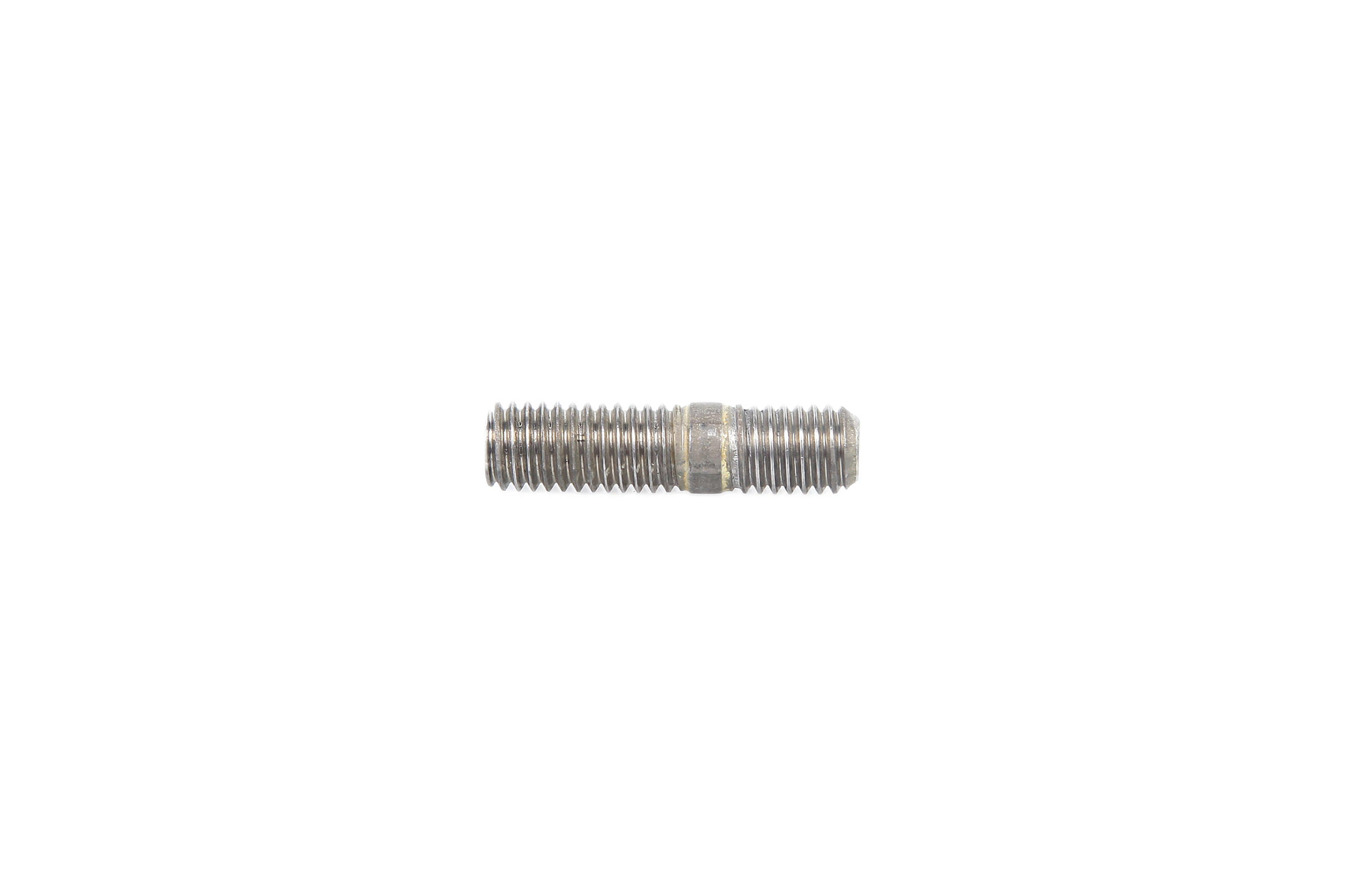

32STUD;
-
46BOLT Hex, M8 x 1.25 x 75mm, Cl 8.8; Screw, Cap, HH, CL 8.8, M8 x 1.25 x 75
-
52FLANGE NUT Hex, M8 x 1.25, Cl 8;
-

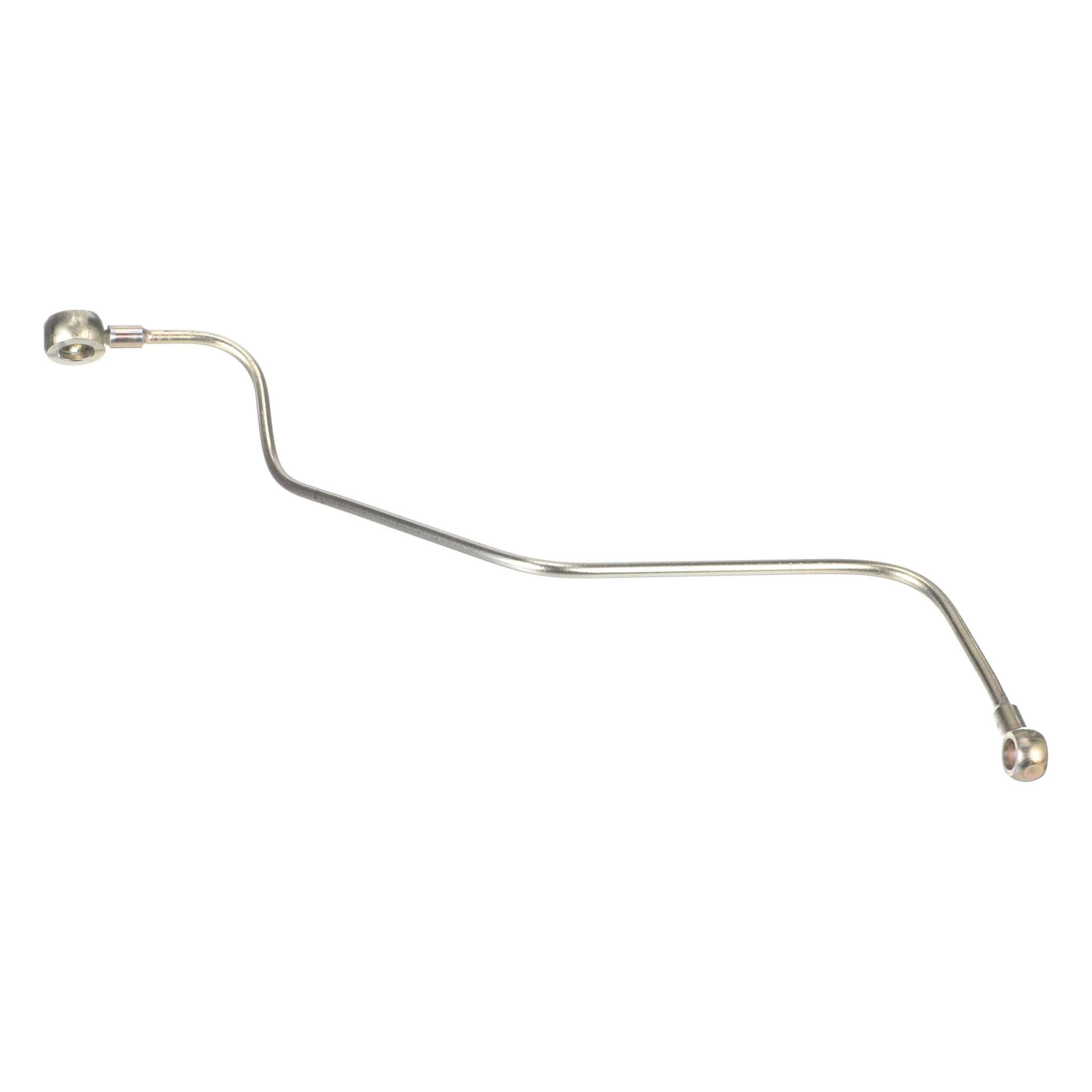

61RIGID TUBE; Tube, Rocker Arm Shaft, See Service Bulletin 11/94-C4; (SN Break) Between 847851 and 852448
-
61TUBE; Rocker Arm Shaft
-
71SCREW; Bolt, Short Banjo, See Service Bulletin 11/94-C4; (SN Break) Between 847851 and 852448
-

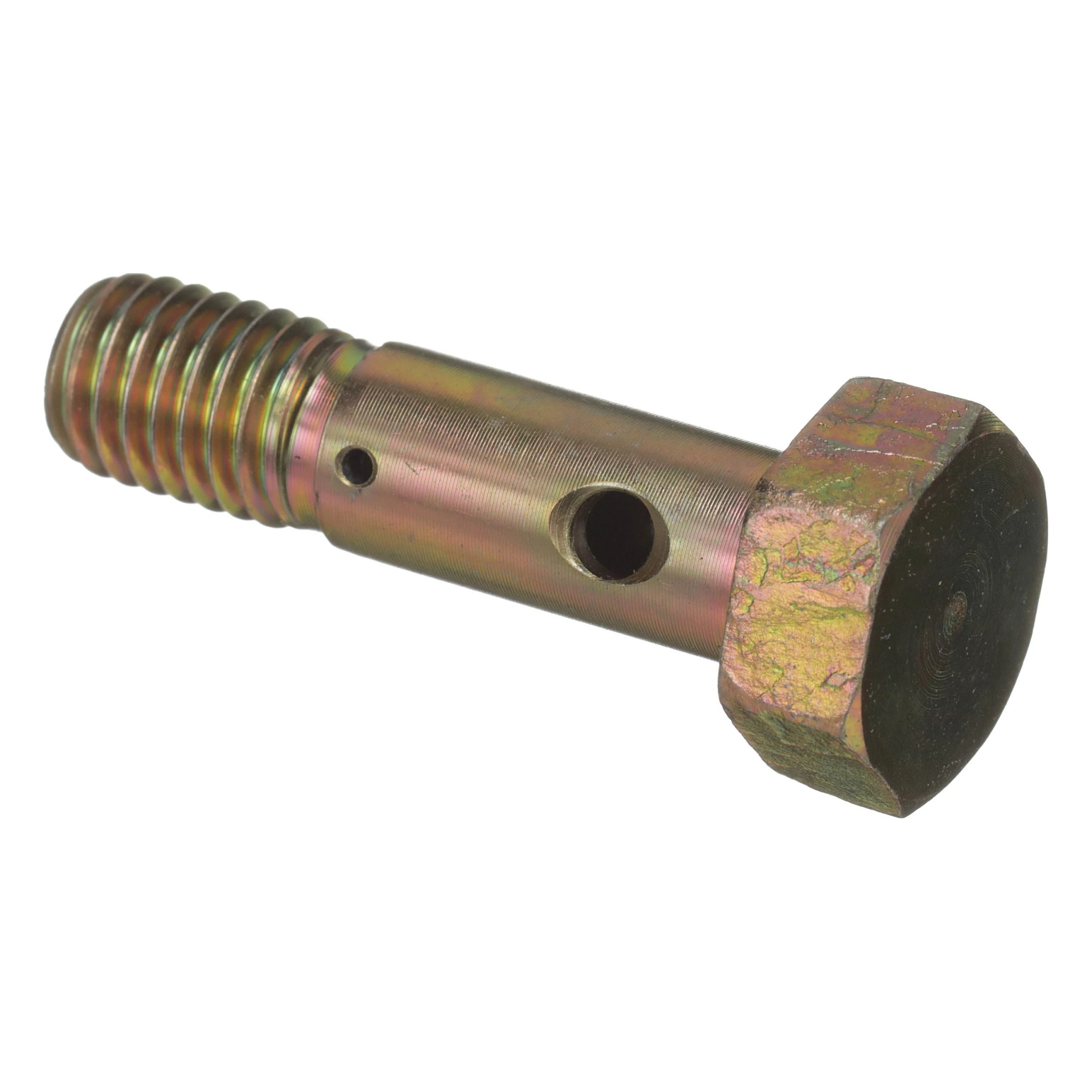

71BANJO BOLT; Bolt, Long Banjo
-

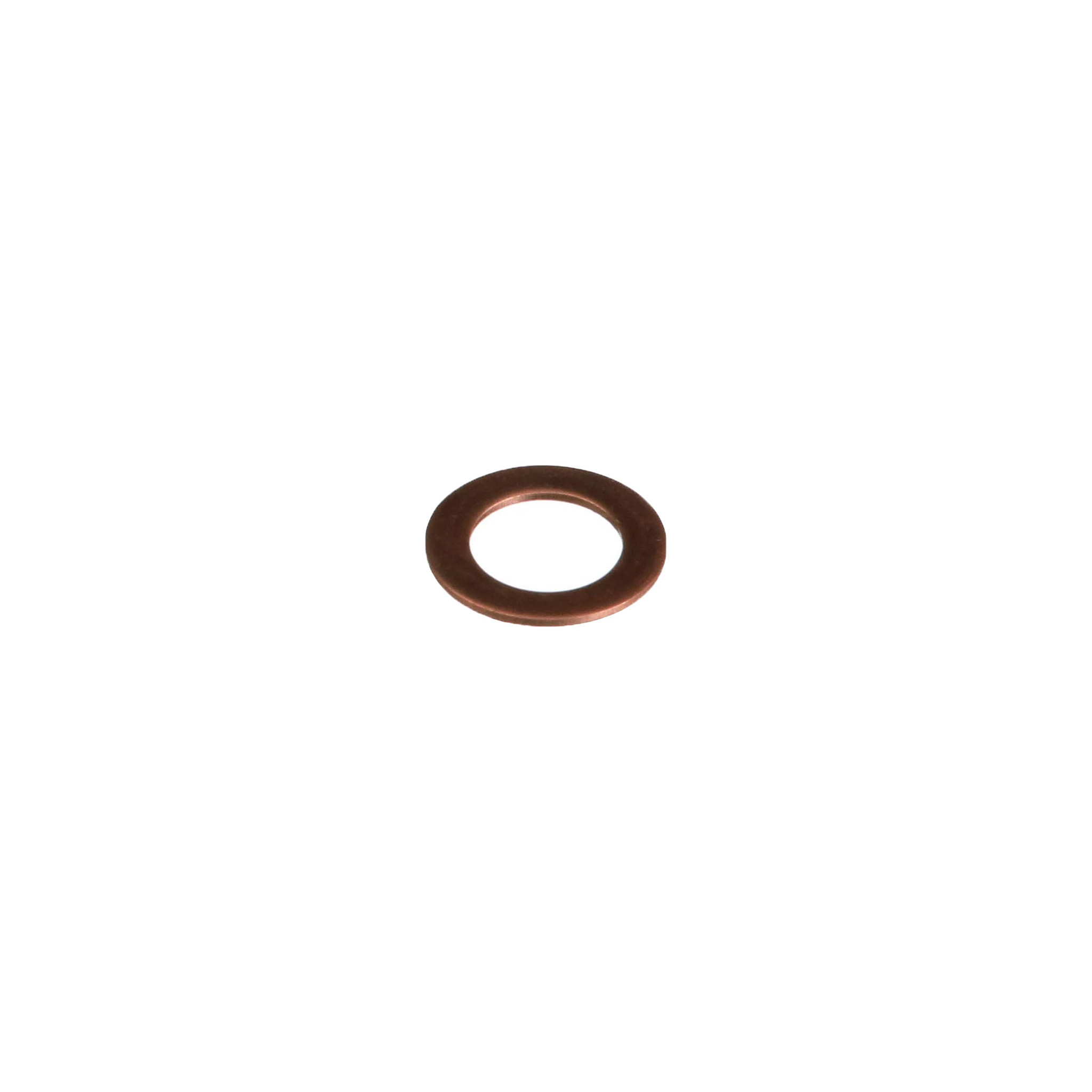

83SEAL; Washer, Copper
-
91ELBOW;
-
101TURBOCHARGER; 4 Bolt Mounting, Turbocharger, See Service Bulletin 8/95-I11
-
101CORE-TURBOCHARGER TURBOCHARGER; 4 Bolt Mounting, Turbocharger, See Service Bulletin 8/95-I11
-
101REMAN-TURBOCHARGER TURBOCHARGER; 4 Bolt Mounting, Turbocharger, See Service Bulletin 8/95-I11
-
111GASKET;
-
122STUD; Carbon Steel
-
122STUD; Stainless Steel
-
131GASKET;
-

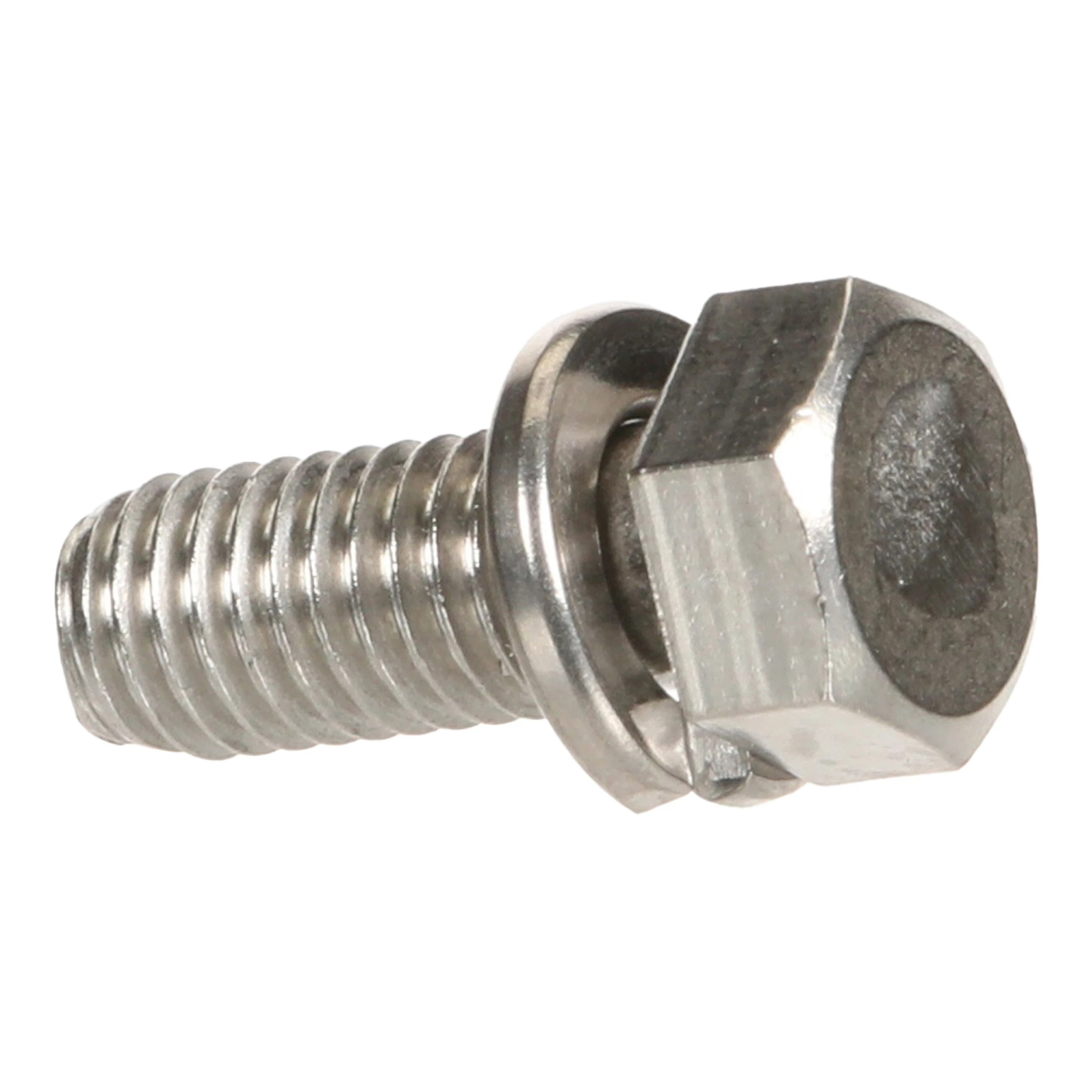

142CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 1.25 x 20, G5
-
162BOLT M8 x 50mm; Carbon Steel M8 x 50
-
162SCREW; Bolt, Stainless Steel
-
171GASKET;
-
181TUBE; Pipe, Oil
-
192BOLT;
-

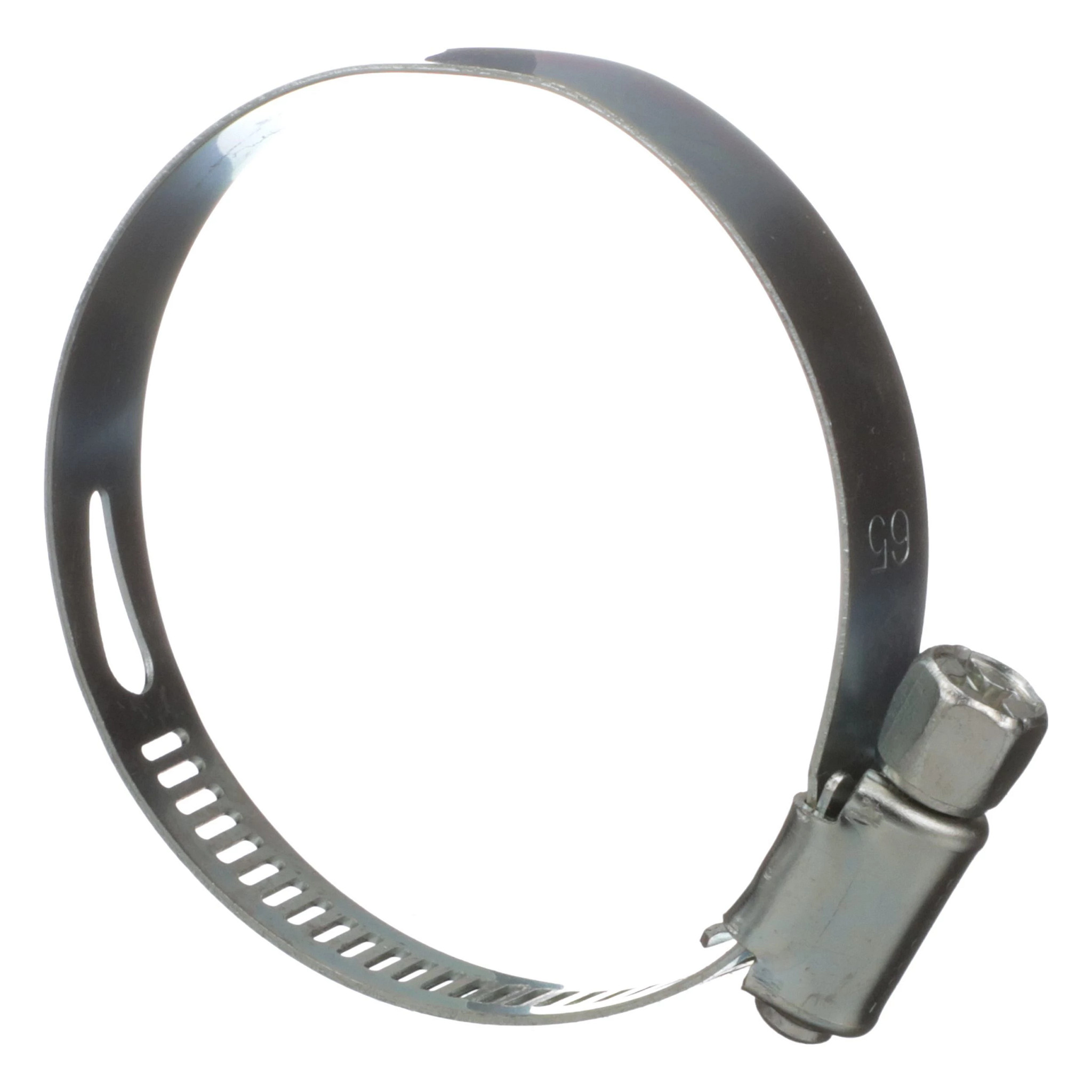

202HOSE CLAMP; Clamp
-
211HOSE; Tube, Rubber
-
221ELBOW; Pipe
-
231HOSE CLAMP; Clamp, Hose
-
241ELBOW; Tube, Rubber
-
251BAND; Clamp, Hose
-
261GASKET;
-
276LOCK WASHER M8; WASHER, LOCK, M8
-
282SCREW; Bolt, Stainless Steel
-
293SEAL; Washer, Sealing, White
-
301ADAPTER; Engine Block
-
312SEALING WASHER 9.2mm ID x 17mm OD x 1.8mm Thk;
-
321NUT;
-
331CHECK VALVE; Valve, Check
-
341TUBE; Line, Lower, Oil
-
351KIT UPPER OIL LINE, INCL TUBE, FITTING, SEAL; Line, Upper Oil
-
361CLAMP;
-
371BOLT Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd; HH, CL 8.8, M8 x 1.25 x 12, Full Thd
-
381BANJO BOLT; Bolt, Eye
Select All
Ref.
1Qty
1Availability
Part #
SBA135617240Description
EXHAUST MANIFOLD; Manifold, ExhaustImg
Alts
Ref.
4Qty
6Availability
Part #
331175Description
BOLT Hex, M8 x 1.25 x 75mm, Cl 8.8; Screw, Cap, HH, CL 8.8, M8 x 1.25 x 75Img
Alts
Ref.
6Qty
1Availability
Part #
SBA140607070Description
RIGID TUBE; Tube, Rocker Arm Shaft, See Service Bulletin 11/94-C4; (SN Break) Between 847851 and 852448Img
Alts
Ref.
7Qty
1Availability
Part #
SBA198486690Description
SCREW; Bolt, Short Banjo, See Service Bulletin 11/94-C4; (SN Break) Between 847851 and 852448Img
Alts
Ref.
10Qty
1Availability
Part #
SBA135756151Description
TURBOCHARGER; 4 Bolt Mounting, Turbocharger, See Service Bulletin 8/95-I11Img
Alts
Ref.
10Qty
1Availability
Part #
SBA135756151CDescription
CORE-TURBOCHARGER TURBOCHARGER; 4 Bolt Mounting, Turbocharger, See Service Bulletin 8/95-I11Img
Alts
Ref.
10Qty
1Availability
Part #
SBA135756151RDescription
REMAN-TURBOCHARGER TURBOCHARGER; 4 Bolt Mounting, Turbocharger, See Service Bulletin 8/95-I11Img
Alts
Ref.
14Qty
2Availability
Part #
SBA011510820Description
CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 1.25 x 20, G5Img
Alts
Ref.
16Qty
2Availability
Part #
SBA011510850Description
BOLT M8 x 50mm; Carbon Steel M8 x 50Img
Alts
Ref.
31Qty
2Availability
Part #
SBA025100010Description
SEALING WASHER 9.2mm ID x 17mm OD x 1.8mm Thk;Img
Alts
Ref.
35Qty
1Availability
Part #
SBA140607180Description
KIT UPPER OIL LINE, INCL TUBE, FITTING, SEAL; Line, Upper OilImg
Alts
Ref.
37Qty
1Availability
Part #
336199Description
BOLT Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd; HH, CL 8.8, M8 x 1.25 x 12, Full ThdImg
Alts
