03B01 - CONTROL VALVE HYDRAULICS, L565
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    86604770
    CONTROL VALVE; Assy., See Figure 03B04 & 5
  • 2
    1
    781221
    CLAMP; .625'' Tube
  • 3
    3
    86509354
    PLATE 9/32'' ID x 3/4'' W x 2'' L; Tab, Tube Clamp
  • 4
    3
    280164
    BOLT Hex, 1/4'' - 20 x 1 3/4'', Gr 5; Screw, Cap, HH, G5, 1/4''-20 x 1-3/4''
  • 5
    3
    280129
    NUT 1/4''-20; Nut, Lock, 1/4''-20, GC
  • 8
    2
    325059
    HYD CONNECTOR 7/8''-14, 37 Degree x 7/8''-14, O-Ring; Connector, Male, 7/8''-14, Flare x 7/8''-14, W/O-Ring, Includes: Ref. 9
  • 9
    4
    167269
    O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk
  • 10
    2

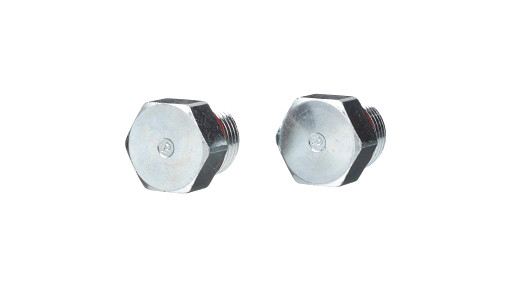

    86512512
    HEX PLUG 7/8'' - 14 ORB; Hex, 7/8''-14 x 1'', Includes: Ref. 9
  • 11
    2
    280161
    BOLT Hex, 3/8'' - 16 x 3'', Gr 5;
  • 12
    2
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk; WASHER, BELLEVILLE, M10
  • 13
    3

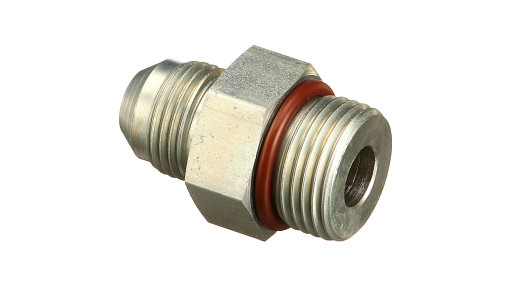

    128819
    HYD CONNECTOR 7/8'' - 14 ORB x 3/4'' - 16 JIC; Connector Assy., Includes: Ref. 14
  • 14
    3

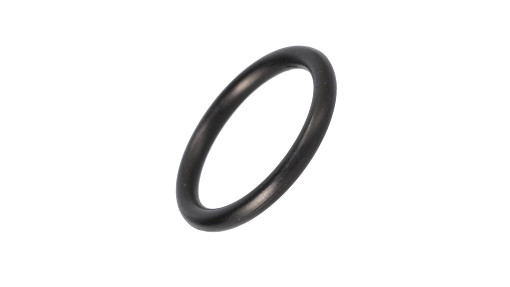

    122057
    O-RING 0.103'' Thk x 0.737'' ID, -116, Cl 6, 90 Duro; 90 Duro, .737'' ID x .103'' Thick
  • 15
    1

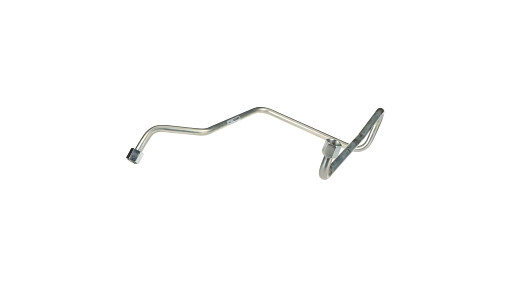

    86555026
    HYD TUBE 15.90 mm OD; Tube Assy., Shaft End Bucket Cylinder, Includes: Ref. 32 & 33, calculated length = 1208.1

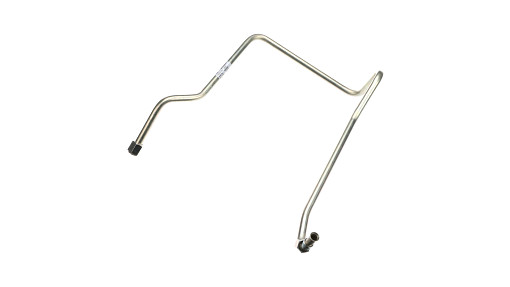

  • 16
    1
    86555027
    HYD TUBE 15.90 mm OD; Tube Assy., Piston End Bucket Cylinder, Includes: Ref. 32 & 33, calculated length = 1372.4
  • 17
    1
    9849595
    ORIFICE; Plate, Orifice
  • 18
    1
    322896
    HYD CONNECTOR 1-1/16'' - 12 ORB x 1-1/16'' - 12 JIC; CONNECTOR, HYD, , Assy, Incl Ref 19 1 1/16''-12, 37? x 1 1/16''-12, O-Ring
  • 19
    1

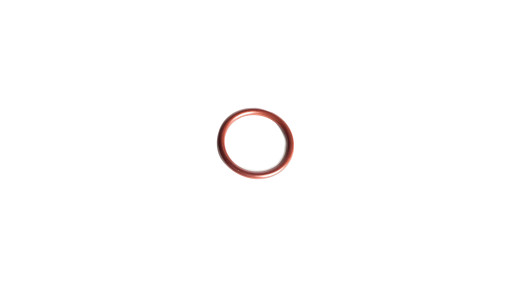

    167266
    O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 6, 90 Duro; 12-1, 90 Duro, .924 ID x .116'' Thk
  • 20
    1
    86515602
    HYD TUBE 12.70 mm OD x 80.3, 114 mm L; Tube Assy., Piston End Boom Cylinders, Includes: Ref. 34 & 35
  • 21
    1
    9804360
    TUBE; Assy., Shaft End Boom Cylinders, Includes: Ref. 34 & 35
  • 22
    1
    9804364
    PIPE; Tube Assy., RH Piston End Boom Cylinder, Includes: Ref. 34 & 35
  • 23
    1
    9804363
    HYD TUBE; Tube Assy., RH Shaft End Boom Cylinder, Includes: Ref. 34 & 35
  • 24
    2

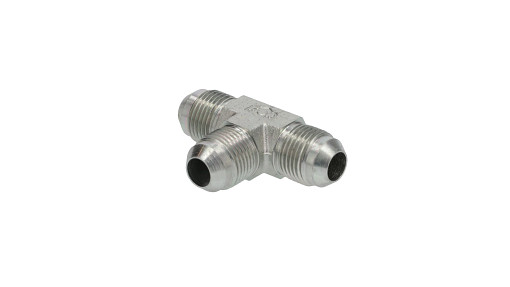

    128996
    TEE 3/4'' - 16 JIC x 3/4'' - 16 JIC x 3/4'' - 16 JIC; -8, Male 37? Flr, 3/4''-16, SAE
  • 25
    2
    625822
    CLAMP 1/2'' Tube; 1/2'' Tube
  • 26
    1
    9804365
    TUBE; Assy., LH Piston End Boom Cylinder, Includes: Ref. 34 & 35
  • 27
    1

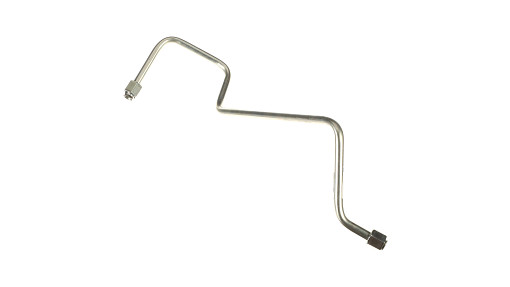

    9804362
    HYD TUBE; Tube Assy., LH Shaft End Boom Cylinder, Includes: Ref. 34 & 35
  • 31
    2
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
  • 32
    2
    235672
    SLEEVE 37 Degree, 5/8'' Tube;
  • 33
    2
    9626918
    TUBE NUT 37 Degree, 7/8''-14, Type B; Nut, 5/8'' Tube, 37? FL
  • 34
    2

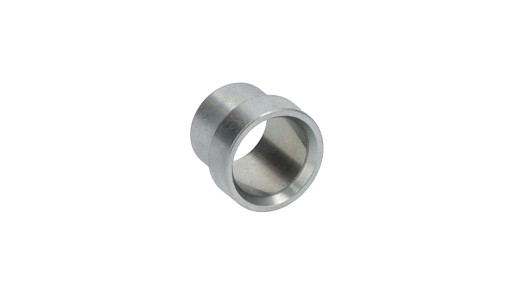

    235671
    SLEEVE 37 Degree, 1/2'' Tube; 37?, 1/2'' Tube
  • 35
    2
    129428
    TUBE NUT 37 Degree, 3/4''-16, Type B; Nut, Tube, 37?, 3/4''-16, Type B
  • 36
    1
    86553567
    ISOLATOR; Insulator, Rubber, Located Under Control Valve
