Ref.
Qty
Part #
Alts
Description
-
11ENGINE; Engine Assy., Modified Ford BSD 333 or 33H, Replaces 9604718;BSD 333 or BSD 33H has Headland Pistons (more horsepower), either engine can be used;DO NOT use a standard BSD engine. The injection pump, injectors and water pump are different.
-
21MOUNTING PLATE; Rear Mount Assy.
-
4BOLT Hex, 3/4'' - 10 x 2 3/4'', Gr 5; Screw, Cap, HH, G5, 3/4''-10 x 2-3/4''
-
4NUT 3/4'' - 10, Gr 5; Nut, G5, 3/4''-10
-
4LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''
-
1BOLT Hex, 5/8'' - 18 x 4'', Gr 8; Screw, Cap, HH, G8, 5/8''-18 x 4''
-
1LOCK NUT 5/8''-18, GC; NUT, LOCK, 5/8''-18, GC
-
6WASHER 16.28mm ID x 38.35mm OD x 4.11mm Thk; Washer, Hardened, 5/8''
-
32SUPPORT; Front Mount Assy.
-
4BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5; BOLT, Hex, 1/2''-13 x 1 1/4'', G5, Full Thd
-
2BOLT Hex, 5/8'' - 18 x 4'', Gr 8; Screw, Cap, HH, G8, 5/8''-18 x 4''
-
2LOCK NUT 5/8''-18, GC; NUT, LOCK, 5/8''-18, GC
-
4WASHER 16.28mm ID x 38.35mm OD x 4.11mm Thk; Washer, Hardened, 5/8''
-
42INSULATOR 76.2mm OD x 57.15mm L; Isolator, Rear
-

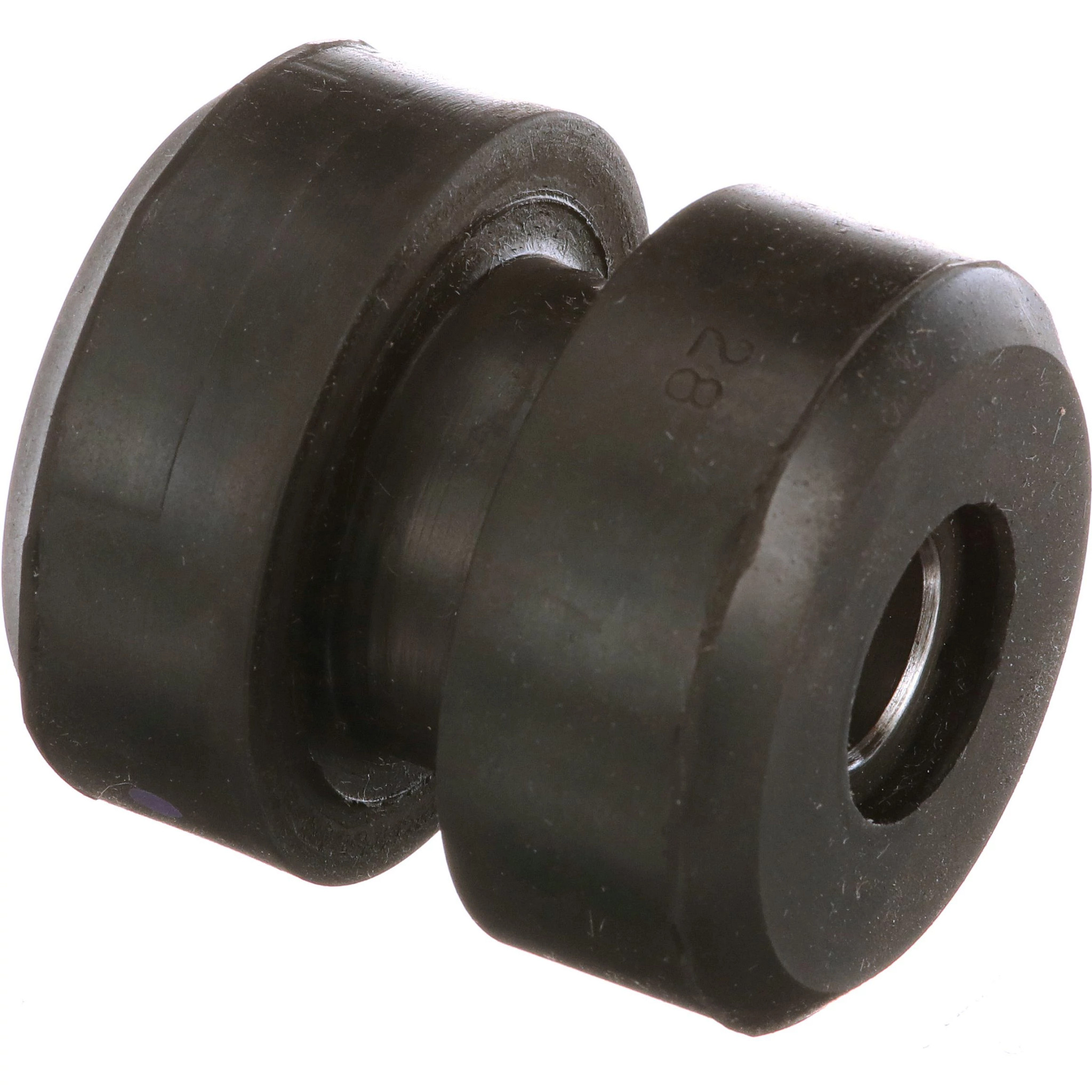

41INSULATOR; Isolator, Front
-

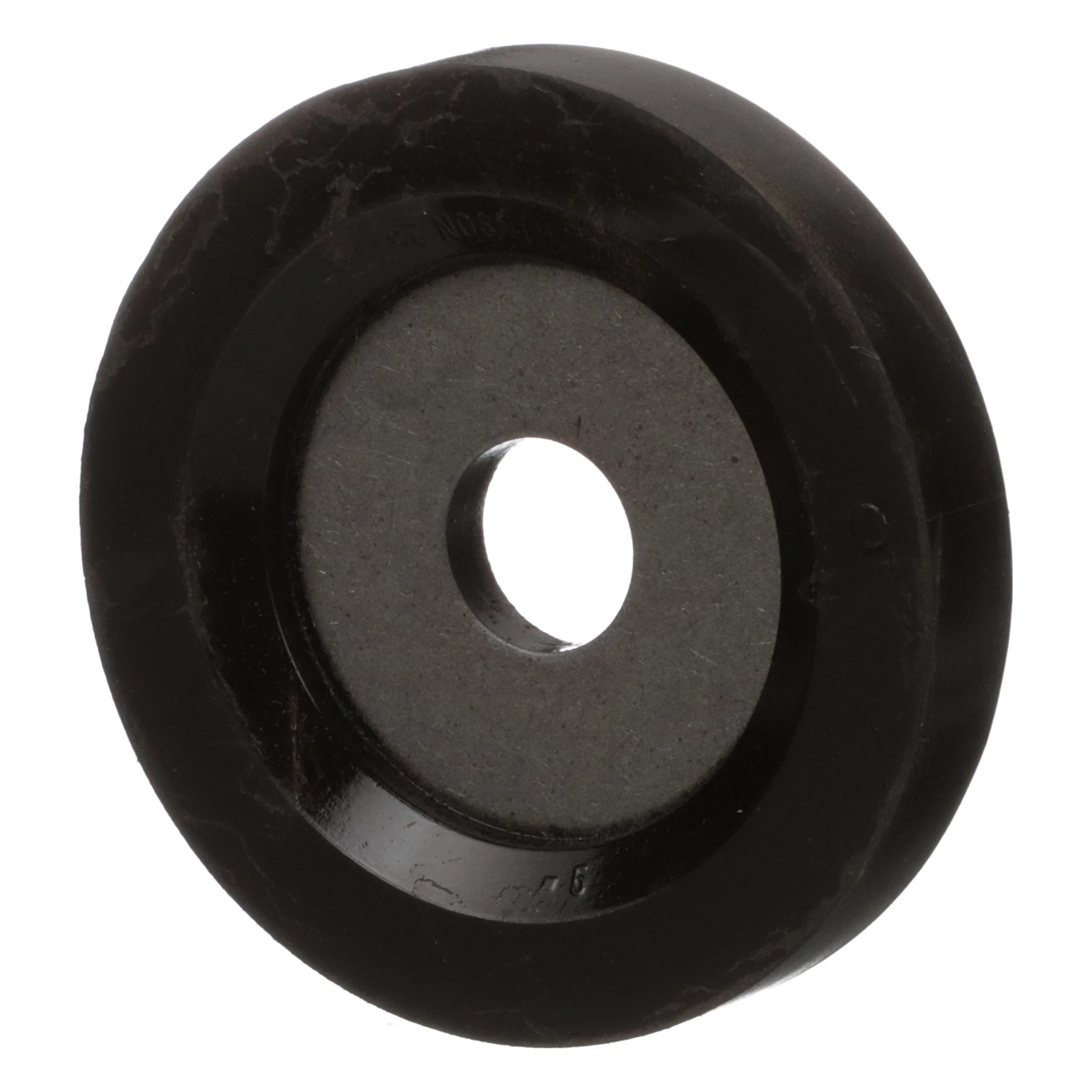

53SUPPORT; Snubber
-
63PLATE; Plate, Snubber
-
6BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 1-1/2''
-
6WASHER 10.3mm ID x 25.4mm OD x 2.67mm Thk; Washer, Hardened, 3/8''
-
71PLATE; Plate, Rear Motor Mount Only
-
81COVER; Cover
-
91HOUSING; Housing
-
2HEX SOC SCREW 3/4'' - 16 x 2.12''; Screw, Cap, HS, 3/4''-16 x 2-1/8''
-
2LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''
-
2SERRATED BOLT Hex Serr Flg, 3/8'' - 16 x 1 1/4''; Screw, Cap, Flg Hd, USR, 3/8''-16 x 1-1/4''
-
1SERRATED BOLT Hex Serr Flg, 3/8'' - 16 x 1 1/2''; Screw, Cap, Flg Hd, USR, 3/8''-16 x 1-1/2''
-
1SERRATED NUT Flg, USR, 3/8'' - 16; Nut, Flg, USR, 3/8''-16
-
2BOLT Hex, 7/16'' - 14 x 3/4'', Gr 5, Full Thd; Screw, Cap, HH, G5, 7/16''-14 x 3/4''
-
2LOCK WASHER 7/16''; WASHER, LOCK, 7/16''
-
2WASHER 0.5'' ID x 1.25'' OD x 0.08'' Thk; WASHER, 7/16''
-
4BOLT Hex, 5/8'' - 11 x 2 1/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2-1/4''
-
4LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''
-
101RING; V-Ring
-
111PLATE; Plate, Engine
-
121MUFFLER; Muffler, Includes: 3/8'' Brass Plug, Not Serviced Separately
-
1CLAMP; Clamp
-
131EXHAUST SYSTEM PIPE; Pipe, Exhaust
-
3BOLT Hex, 3/8'' - 16 x 1'', Gr 5; BOLT, Hex, 3/8''-16 x 1'', G5, Full Thd
-
3WASHER 10.3mm ID x 22.2mm OD x 2.7mm Thk, HTS, ZND; WASHER, (3/8'') M10 x 22.2 x 2.87 Thk, HT
-
141GASKET; Gasket
-
151SUPPORT; Support
-
2BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; BOLT, Hex, 3/8''-16 x 1 1/4'', G5, Full Thd
-
4WASHER 0.44'' ID x 1'' OD x 0.08'' Thk; WASHER, 3/8''
-
2LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
161STRAP; Strap
-
4SPACER; Spacer
-
4BOLT Hex, 3/8'' - 16 x 2-1/2'', Gr 5; BOLT, Hex, 3/8''-16 x 2 1/2'', G5
-
171EXTENSION; Exhaust, Extension
-
4SERRATED BOLT Hex Serr, 3/8'' - 16 x 3/4'', 5SPL, Full Thd; Screw, Cap, Flg Hd, USR, 3/8''-16 x 3/4''
-
4SERRATED NUT Flg, USR, 3/8'' - 16; Nut, Flg, USR, 3/8''-16
-
181CAP; Cap
-
191AIR FILTER; Air Cleaner Assy., Includes: Ref. 20 thru 25
-
201AIR FILTER; Element
-
211AIR FILTER; Element, Safety
-
222NUT; Nut, Wing
-
232NUT; Washer
-
241FILTER COVER; Cover
-
251CHECK VALVE; Valve, Vacuator
-
261INDICATOR; Indicator, Restriction, Air Cleaner
-
271INTAKE AIR HOSE 2.50'' ID, 3.00'' ID x 6.00'', SAE J200-BC 710; Hose, Air
-
1HOSE CLAMP 68mm - 85mm, Worm Gear; Hose, Clamp
-
1HOSE CLAMP 50mm - 65mm, Worm Gear; CLAMP, HOSE, #40, 2.06/3.00 Type F Worm
-
281AIR HOSE 2.03'' ID, 2.50'' ID x 6.30'', SAE J200;
-
1HOSE CLAMP 1.59'' - 2.5'', Worm Gear; HOSE CLAMP, (1-9/16'' ID) #32, 1.56/2.50 Type F Worm
-
291TUBE; Tube, Air
-
302BAND; Band
-
4SERRATED BOLT Hex Flg, 5/16'' - 18 x 3/4'', Gr 5, Full Thd; Screw, Cap, Flg Hd, USR, 5/16''-18 x 3/4''
-
4SERRATED NUT 5/16'' - 18 Gr 5 ZND; Nut, Flg, USR, 5/16''-18
-
311STARTER MOTOR; Starter Assy., Magneti- Marelli, Refer to Fig. 54 ' Starting Motor Assy., Ford Powered Units' for Components
-
31A1REMAN-STARTER STARTER; Starter Assy, Bosch, Requires new battery cables 86508635 and 86508636 if replacing Magneti-Marelli starter, Refer to Bulletin 5/96 I9;Refer to Component Breakdown
-
31A1CORE-STARTER STARTER; Starter Assy, Bosch, Requires new battery cables 86508635 and 86508636 if replacing Magneti-Marelli starter, Refer to Bulletin 5/96 I9;Refer to Component Breakdown
-
31A1STARTER MOTOR; Starter Assy, Bosch, Requires new battery cables 86508635 and 86508636 if replacing Magneti-Marelli starter, Refer to Bulletin 5/96 I9;Refer to Component Breakdown
-

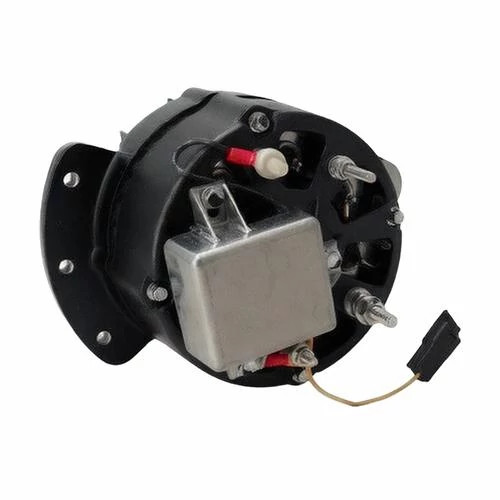

321CORE-ALTERNATOR ALTERNATOR; Prestolite Alternator Assy., Replaces 9609165
-
321ALTERNATOR; Prestolite Alternator Assy., Replaces 9609165
-
321REMAN-ALTERNATOR ALTERNATOR; Prestolite Alternator Assy., Replaces 9609165
-
321REMAN-ALTERNATOR ALTERNATOR; Magnetti-Marelli Alternator Assy.
-
321CORE-ALTERNATOR ALTERNATOR; Magnetti-Marelli Alternator Assy.
-
321ALTERNATOR; Magnetti-Marelli Alternator Assy.
-
1BOLT Hex, 1/2'' - 13 x 4 1/2'', Gr 5; Bolt, Hex, 1/2''-13 x 4 1/2'', G5;Used w/Prestolite Alternator
-
1BOLT Hex, 5/16'' - 18 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 5/16''-18 x 1-1/2'';Used w/Magnietti-Marelli Alternator
-
2LOCK NUT 5/16'' - 18, Gr C; NUT, LOCK, 5/16''-18, GC;Used w/Magnietti-Marelli Alternator
-
1BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5; BOLT, Hex, 5/16''-18 x 1'', G5, Full Thd
-
1LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
-
5WASHER 0.34'' ID x 0.75'' OD x 0.09'' Thk; Washer
-
331STRAP; Strap, Replaces 9619751, Used on Old Leaf Loaders Only;Used w/Prestolite Alternator
-
331ARM; Strap, Assy.;Used w/Magnietti-Marelli Alternator
-
1BOLT Hex, 3/8'' - 16 x 3'', Gr 5; BOLT, Hex, 3/8''-16 x 3'', G5
-
1LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
341PULLEY; Sheave;Used w/Prestolite Alternator
-
341PULLEY 17mm ID x 75mm OD x 18mm W; Sheave;Used w/Magnietti-Marelli Alternator
-
351BRACKET; Bracket;Used w/Prestolite Alternator
-
351BRACKET; Bracket;Used w/Magnietti-Marelli Alternator
-
361SPACER; Spacer
-
371FAN; Fan
-
4BOLT Hex, 5/16'' - 24 x 3/4'', Gr 5, Full Thd; Screw, Cap, HH, G5, 5/16''-24 x 3/4''
-
4LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
-
381BELT V-Belt, 13mm W x 1400mm L; Used w/Prestolite Alternator
-
381V-BELT V-Belt, 12.7mm W x 1490.7mm L; Used w/Magnietti-Marelli Alternator
-
1BOLT Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8, ZND; BOLT, Hex, M8 x 30, 8.8
-
391COUNTERWEIGHT; Weight, Crankshaft, Sheave Balance
-
3BOLT Hex, 7/16'' - 14 x 1 1/4'', Gr 5, Full Thd; BOLT, Hex, 7/16''-14 x 1 1/4'', G5, Full Thd
-
3LOCK WASHER 7/16''; WASHER, LOCK, 7/16''
-
401SENDER UNIT; Unit, Oil Temp Sending
-
411BUSHING; Bushing; (SN Break) Between 3/8'' and 1/4''
-
421PRESSURE SWITCH; Switch, Pressure
-
431REDUCER; Bushing; (SN Break) Between 1/4'' and 1/8''
-
441SUPPORT; Tray, Battery
-
4SERRATED BOLT Hex Flg, 5/16'' - 18 x 3/4'', Gr 5, Full Thd; Screw, Cap, Flg Hd, USR, 5/16''-18 x 3/4''
-
4SERRATED NUT 5/16'' - 18 Gr 5 ZND; Nut, Flg, USR, 5/16''-18
-
452BOLT; Bolt, J, 3/8''-16 x 10''
-
2WASHER 0.38'' ID x 0.88'' OD x 0.08'' Thk; WASHER, 5/16''
-
461SUPPORT; Strap
-
471COVER; Cover
-
1BOLT Hex, 3/8'' - 16 x 4 1/2'', Gr 5; BOLT, Hex, 3/8''-16 x 4 1/2'', G5
-
1LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
-
481COVER; Cover, Starter Solenoid
-
1NUT; Nut, M8
-
491BRACKET; Bracket;Used w/Magnietti-Marelli Alternator
-
2CARRIAGE BOLT Sq Nk, 5/16'' - 18 x 3/4'', Gr 5, Full Thd; Bolt, Carriage, Short NK, 5/16''-18 x 3/4'', G5
-
2SERRATED NUT 5/16'' - 18 Gr 5 ZND; Nut, Flg, USR, 5/16''-18;Used w/Magnietti-Marelli Alternator
-
501SENSOR; Sensor, Battery Temp;Used w/Magnietti-Marelli Alternator
-
512PROCURE LOCALLY; Plug, Cap
-
1NUT 1/2''-13, G5; NUT, 1/2''-13, G5
-
ARBOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 3/4''
-
6LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16
-
4LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16
-
2LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16
-
4LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
4LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
Select All
Ref.
1Qty
1Availability
Part #
82841436Description
ENGINE; Engine Assy., Modified Ford BSD 333 or 33H, Replaces 9604718;BSD 333 or BSD 33H has Headland Pistons (more horsepower), either engine can be used;DO NOT use a standard BSD engine. The injection pump, injectors and water pump are different.Img
Alts
Ref.
Qty
4Availability
Part #
80280173Description
BOLT Hex, 3/4'' - 10 x 2 3/4'', Gr 5; Screw, Cap, HH, G5, 3/4''-10 x 2-3/4''Img
Alts
Ref.
Qty
4Availability
Part #
87340Description
LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''Img
Alts
Ref.
Qty
1Availability
Part #
280621Description
BOLT Hex, 5/8'' - 18 x 4'', Gr 8; Screw, Cap, HH, G8, 5/8''-18 x 4''Img
Alts
Ref.
Qty
1Availability
Part #
9602227Description
LOCK NUT 5/8''-18, GC; NUT, LOCK, 5/8''-18, GCImg
Alts
Ref.
Qty
6Availability
Part #
130358Description
WASHER 16.28mm ID x 38.35mm OD x 4.11mm Thk; Washer, Hardened, 5/8''Img
Alts
Ref.
Qty
4Availability
Part #
87670Description
BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5; BOLT, Hex, 1/2''-13 x 1 1/4'', G5, Full ThdImg
Alts
Ref.
Qty
2Availability
Part #
280621Description
BOLT Hex, 5/8'' - 18 x 4'', Gr 8; Screw, Cap, HH, G8, 5/8''-18 x 4''Img
Alts
Ref.
Qty
2Availability
Part #
9602227Description
LOCK NUT 5/8''-18, GC; NUT, LOCK, 5/8''-18, GCImg
Alts
Ref.
Qty
4Availability
Part #
130358Description
WASHER 16.28mm ID x 38.35mm OD x 4.11mm Thk; Washer, Hardened, 5/8''Img
Alts
Ref.
4Qty
2Availability
Part #
9803221Description

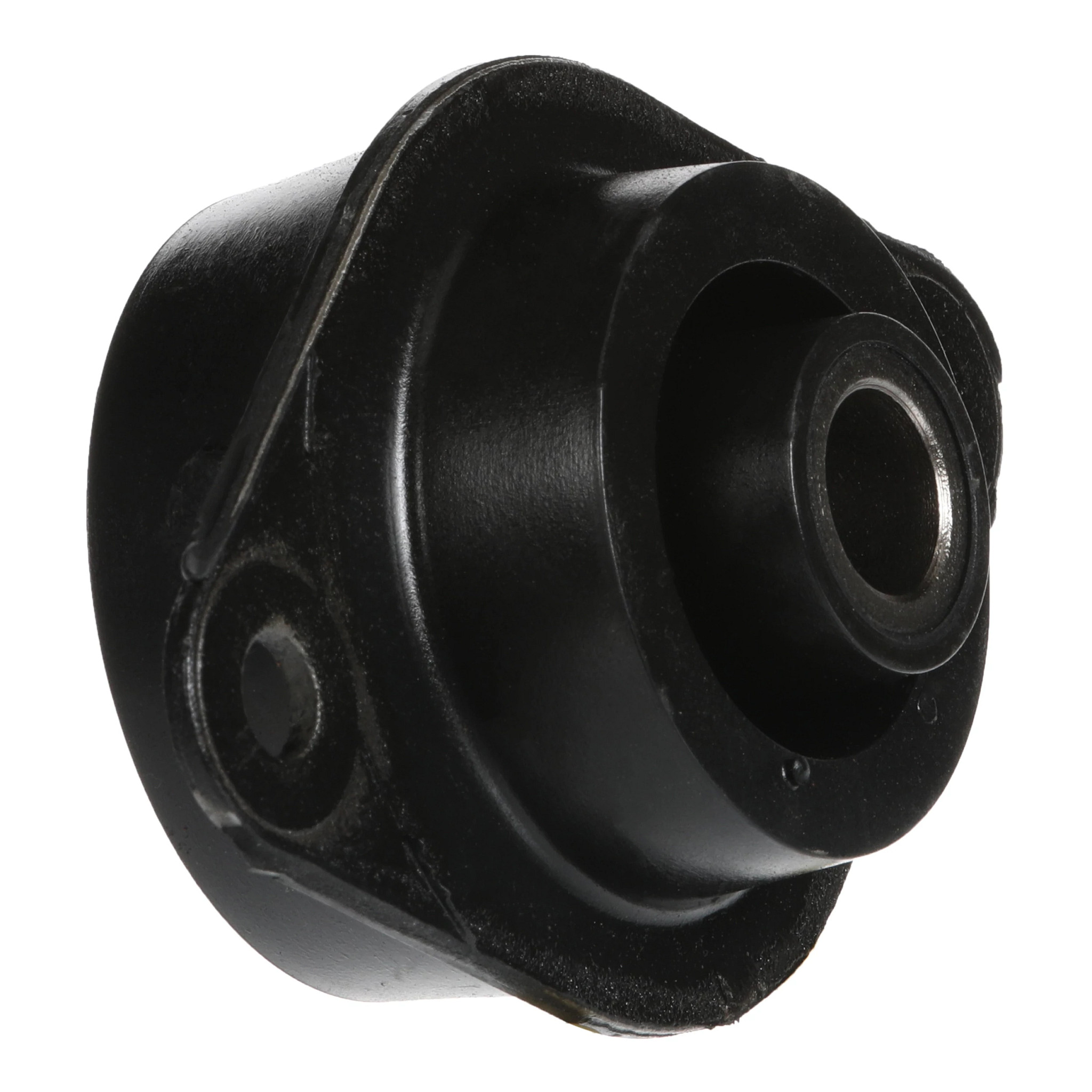

INSULATOR 76.2mm OD x 57.15mm L; Isolator, RearImg
Alts
Ref.
Qty
6Availability
Part #
88044Description
BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 1-1/2''Img
Alts
Ref.
Qty
6Availability
Part #
9827956Description
WASHER 10.3mm ID x 25.4mm OD x 2.67mm Thk; Washer, Hardened, 3/8''Img
Alts
Ref.
Qty
2Availability
Part #
86565805Description
HEX SOC SCREW 3/4'' - 16 x 2.12''; Screw, Cap, HS, 3/4''-16 x 2-1/8''Img
Alts
Ref.
Qty
2Availability
Part #
87340Description
LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4''Img
Alts
Ref.
Qty
2Availability
Part #
86512174Description
SERRATED BOLT Hex Serr Flg, 3/8'' - 16 x 1 1/4''; Screw, Cap, Flg Hd, USR, 3/8''-16 x 1-1/4''Img
Alts
Ref.
Qty
1Availability
Part #
86512175Description
SERRATED BOLT Hex Serr Flg, 3/8'' - 16 x 1 1/2''; Screw, Cap, Flg Hd, USR, 3/8''-16 x 1-1/2''Img
Alts
Ref.
Qty
1Availability
Part #
247780Description
SERRATED NUT Flg, USR, 3/8'' - 16; Nut, Flg, USR, 3/8''-16Img
Alts
Ref.
Qty
2Availability
Part #
280244Description
BOLT Hex, 7/16'' - 14 x 3/4'', Gr 5, Full Thd; Screw, Cap, HH, G5, 7/16''-14 x 3/4''Img
Alts
Ref.
Qty
2Availability
Part #
81541Description
WASHER 0.5'' ID x 1.25'' OD x 0.08'' Thk; WASHER, 7/16''Img
Alts
Ref.
Qty
4Availability
Part #
88556Description
BOLT Hex, 5/8'' - 11 x 2 1/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2-1/4''Img
Alts
Ref.
Qty
4Availability
Part #
86729275Description
LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''Img
Alts
Ref.
12Qty
1Availability
Part #
9621850Description
MUFFLER; Muffler, Includes: 3/8'' Brass Plug, Not Serviced SeparatelyImg
Alts
Ref.
Qty
3Availability
Part #
88206Description
BOLT Hex, 3/8'' - 16 x 1'', Gr 5; BOLT, Hex, 3/8''-16 x 1'', G5, Full ThdImg
Alts
Ref.
Qty
3Availability
Part #
285072Description
WASHER 10.3mm ID x 22.2mm OD x 2.7mm Thk, HTS, ZND; WASHER, (3/8'') M10 x 22.2 x 2.87 Thk, HTImg
Alts
Ref.
Qty
2Availability
Part #
88011Description
BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5; BOLT, Hex, 3/8''-16 x 1 1/4'', G5, Full ThdImg
Alts
Ref.
Qty
4Availability
Part #
80702Description
WASHER 0.44'' ID x 1'' OD x 0.08'' Thk; WASHER, 3/8''Img
Alts
Ref.
Qty
2Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Ref.
Qty
4Availability
Part #
87936Description
BOLT Hex, 3/8'' - 16 x 2-1/2'', Gr 5; BOLT, Hex, 3/8''-16 x 2 1/2'', G5Img
Alts
Ref.
Qty
4Availability
Part #
255918Description
SERRATED BOLT Hex Serr, 3/8'' - 16 x 3/4'', 5SPL, Full Thd; Screw, Cap, Flg Hd, USR, 3/8''-16 x 3/4''Img
Alts
Ref.
Qty
4Availability
Part #
247780Description
SERRATED NUT Flg, USR, 3/8'' - 16; Nut, Flg, USR, 3/8''-16Img
Alts
Ref.
19Qty
1Availability
Part #
266221Description
AIR FILTER; Air Cleaner Assy., Includes: Ref. 20 thru 25Img
Alts
Ref.
26Qty
1Availability
Part #
239475Description
INDICATOR; Indicator, Restriction, Air CleanerImg
Alts
Ref.
27Qty
1Availability
Part #
573075Description
INTAKE AIR HOSE 2.50'' ID, 3.00'' ID x 6.00'', SAE J200-BC 710; Hose, AirImg
Alts
Ref.
Qty
1Availability
Part #
82012730Description
HOSE CLAMP 68mm - 85mm, Worm Gear; Hose, ClampImg
Alts
Ref.
Qty
1Availability
Part #
82012728Description
HOSE CLAMP 50mm - 65mm, Worm Gear; CLAMP, HOSE, #40, 2.06/3.00 Type F WormImg
Alts
Ref.
28Qty
1Availability
Part #
9610527Description
AIR HOSE 2.03'' ID, 2.50'' ID x 6.30'', SAE J200;Img
Alts
Ref.
Qty
1Availability
Part #
86050202Description
HOSE CLAMP 1.59'' - 2.5'', Worm Gear; HOSE CLAMP, (1-9/16'' ID) #32, 1.56/2.50 Type F WormImg
Alts
Ref.
Qty
4Availability
Part #
145913Description
SERRATED BOLT Hex Flg, 5/16'' - 18 x 3/4'', Gr 5, Full Thd; Screw, Cap, Flg Hd, USR, 5/16''-18 x 3/4''Img
Alts
Ref.
Qty
4Availability
Part #
145458Description
SERRATED NUT 5/16'' - 18 Gr 5 ZND; Nut, Flg, USR, 5/16''-18Img
Alts
Ref.
31Qty
1Availability
Part #
D8NN11000CEDescription
STARTER MOTOR; Starter Assy., Magneti- Marelli, Refer to Fig. 54 ' Starting Motor Assy., Ford Powered Units' for ComponentsImg
Alts
Ref.
31AQty
1Availability
Part #
86513093RDescription
REMAN-STARTER STARTER; Starter Assy, Bosch, Requires new battery cables 86508635 and 86508636 if replacing Magneti-Marelli starter, Refer to Bulletin 5/96 I9;Refer to Component BreakdownImg
Alts
Ref.
31AQty
1Availability
Part #
86513093CDescription
CORE-STARTER STARTER; Starter Assy, Bosch, Requires new battery cables 86508635 and 86508636 if replacing Magneti-Marelli starter, Refer to Bulletin 5/96 I9;Refer to Component BreakdownImg
Alts
Ref.
31AQty
1Availability
Part #
86513093Description
STARTER MOTOR; Starter Assy, Bosch, Requires new battery cables 86508635 and 86508636 if replacing Magneti-Marelli starter, Refer to Bulletin 5/96 I9;Refer to Component BreakdownImg
Alts
Ref.
32Qty
1Availability
Part #
86520116CDescription
CORE-ALTERNATOR ALTERNATOR; Prestolite Alternator Assy., Replaces 9609165Img
Alts
Ref.
32Qty
1Availability
Part #
86520116Description
ALTERNATOR; Prestolite Alternator Assy., Replaces 9609165Img
Alts
Ref.
32Qty
1Availability
Part #
86520116RDescription
REMAN-ALTERNATOR ALTERNATOR; Prestolite Alternator Assy., Replaces 9609165Img
Alts
Ref.
32Qty
1Availability
Part #
E3NN10B376ADRDescription
REMAN-ALTERNATOR ALTERNATOR; Magnetti-Marelli Alternator Assy.Img
Alts
Ref.
32Qty
1Availability
Part #
E3NN10B376ADCDescription
CORE-ALTERNATOR ALTERNATOR; Magnetti-Marelli Alternator Assy.Img
Alts
Ref.
32Qty
1Availability
Part #
E3NN10B376ADDescription
ALTERNATOR; Magnetti-Marelli Alternator Assy.Img
Alts
Ref.
Qty
1Availability
Part #
87996Description
BOLT Hex, 1/2'' - 13 x 4 1/2'', Gr 5; Bolt, Hex, 1/2''-13 x 4 1/2'', G5;Used w/Prestolite AlternatorImg
Alts
Ref.
Qty
1Availability
Part #
88275Description
BOLT Hex, 5/16'' - 18 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 5/16''-18 x 1-1/2'';Used w/Magnietti-Marelli AlternatorImg
Alts
Ref.
Qty
2Availability
Part #
280736Description
LOCK NUT 5/16'' - 18, Gr C; NUT, LOCK, 5/16''-18, GC;Used w/Magnietti-Marelli AlternatorImg
Alts
Ref.
Qty
1Availability
Part #
9635884Description
BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5; BOLT, Hex, 5/16''-18 x 1'', G5, Full ThdImg
Alts
Ref.
Qty
1Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''Img
Alts
Ref.
Qty
5Availability
Part #
252687Description
WASHER 0.34'' ID x 0.75'' OD x 0.09'' Thk; WasherImg
Alts
Ref.
33Qty
1Availability
Part #
9604937Description
STRAP; Strap, Replaces 9619751, Used on Old Leaf Loaders Only;Used w/Prestolite AlternatorImg
Alts
Ref.
33Qty
1Availability
Part #
E6NN10145DADescription
ARM; Strap, Assy.;Used w/Magnietti-Marelli AlternatorImg
Alts
Ref.
Qty
1Availability
Part #
280161Description
BOLT Hex, 3/8'' - 16 x 3'', Gr 5; BOLT, Hex, 3/8''-16 x 3'', G5Img
Alts
Ref.
Qty
1Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Ref.
34Qty
1Availability
Part #
271348Description
PULLEY; Sheave;Used w/Prestolite AlternatorImg
Alts
Ref.
34Qty
1Availability
Part #
E7NN10344AADescription
PULLEY 17mm ID x 75mm OD x 18mm W; Sheave;Used w/Magnietti-Marelli AlternatorImg
Alts
Ref.
35Qty
1Availability
Part #
9604934Description
BRACKET; Bracket;Used w/Prestolite AlternatorImg
Alts
Ref.
35Qty
1Availability
Part #
D3NN10239ADescription
BRACKET; Bracket;Used w/Magnietti-Marelli AlternatorImg
Alts
Ref.
Qty
4Availability
Part #
280559Description
BOLT Hex, 5/16'' - 24 x 3/4'', Gr 5, Full Thd; Screw, Cap, HH, G5, 5/16''-24 x 3/4''Img
Alts
Ref.
Qty
4Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''Img
Alts
Ref.
38Qty
1Availability
Part #
9604339Description
BELT V-Belt, 13mm W x 1400mm L; Used w/Prestolite AlternatorImg
Alts
Ref.
38Qty
1Availability
Part #
626657Description
V-BELT V-Belt, 12.7mm W x 1490.7mm L; Used w/Magnietti-Marelli AlternatorImg
Alts
Ref.
Qty
1Availability
Part #
43128Description
BOLT Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8, ZND; BOLT, Hex, M8 x 30, 8.8Img
Alts
Ref.
39Qty
1Availability
Part #
86534743Description
COUNTERWEIGHT; Weight, Crankshaft, Sheave BalanceImg
Alts
Ref.
Qty
3Availability
Part #
9627887Description
BOLT Hex, 7/16'' - 14 x 1 1/4'', Gr 5, Full Thd; BOLT, Hex, 7/16''-14 x 1 1/4'', G5, Full ThdImg
Alts
Ref.
41Qty
1Availability
Part #
87628Description
BUSHING; Bushing; (SN Break) Between 3/8'' and 1/4''Img
Alts
Ref.
43Qty
1Availability
Part #
126787Description
REDUCER; Bushing; (SN Break) Between 1/4'' and 1/8''Img
Alts
Ref.
Qty
4Availability
Part #
145913Description
SERRATED BOLT Hex Flg, 5/16'' - 18 x 3/4'', Gr 5, Full Thd; Screw, Cap, Flg Hd, USR, 5/16''-18 x 3/4''Img
Alts
Ref.
Qty
4Availability
Part #
145458Description
SERRATED NUT 5/16'' - 18 Gr 5 ZND; Nut, Flg, USR, 5/16''-18Img
Alts
Ref.
Qty
2Availability
Part #
80664Description
WASHER 0.38'' ID x 0.88'' OD x 0.08'' Thk; WASHER, 5/16''Img
Alts
Ref.
Qty
1Availability
Part #
86505980Description
BOLT Hex, 3/8'' - 16 x 4 1/2'', Gr 5; BOLT, Hex, 3/8''-16 x 4 1/2'', G5Img
Alts
Ref.
Qty
1Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''Img
Alts
Ref.
49Qty
1Availability
Part #
9807596Description
BRACKET; Bracket;Used w/Magnietti-Marelli AlternatorImg
Alts
Ref.
Qty
2Availability
Part #
280327Description
CARRIAGE BOLT Sq Nk, 5/16'' - 18 x 3/4'', Gr 5, Full Thd; Bolt, Carriage, Short NK, 5/16''-18 x 3/4'', G5Img
Alts
Ref.
Qty
2Availability
Part #
145458Description
SERRATED NUT 5/16'' - 18 Gr 5 ZND; Nut, Flg, USR, 5/16''-18;Used w/Magnietti-Marelli AlternatorImg
Alts
Ref.
50Qty
1Availability
Part #
D3NN10N311ADescription
SENSOR; Sensor, Battery Temp;Used w/Magnietti-Marelli AlternatorImg
Alts
Ref.
Qty
ARAvailability
Part #
88434Description
BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 3/4''Img
Alts
Ref.
Qty
6Availability
Part #
88902Description
LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16Img
Alts
Ref.
Qty
4Availability
Part #
88902Description
LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16Img
Alts
Ref.
Qty
2Availability
Part #
88902Description
LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16Img
Alts
Ref.
Qty
4Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Ref.
Qty
4Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
