TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
A14HOSE 9.5mm ID x 16.9mm OD x 1050mm L;
-
A22HOSE 6.3mm ID x 10.6mm OD x 1100mm L;
-
A42HOSE 5.1mm ID x 8.8mm OD x 1200mm L;
-
A51TUBE 11mm ID x 15mm OD x 356mm L;
-
A61TUBE 11mm ID x 15mm OD x 356mm L;
-
A72HOSE 9.5mm ID x 16.9mm OD x 400mm L;
-
A82PROTECTIVE SLEEVE 45mm ID x 50mm OD x 730mm L;
-
A94GROMMET 52mm ID x 82mm OD x 33mm Thk;
-
A102CLAMP;
-
A112WASHER 8.5mm ID x 25mm OD x 2.3mm Thk;
-
A122LOCK WASHER 8mm ID x 15mm OD x 2.0mm Thk; Lock
-
A132SCREW Hex, M8 x 1.25 x 35mm; CAP
-
B16HYD CONNECTOR PF 3/8'' x PF 3/8'' x 36mm L;
-
B1-26O-RING 13.8mm ID x 18.6mm OD x 2.4mm Thk;
-
B2245 ELBOW PF 1/4'' x PF 1/4'';
-
B2-22O-RING 10.8mm ID x 15.6mm OD x 2.4mm Thk;
-
B3290 ELBOW PF 1/4'' x PF 1/4'';
-
B3-22O-RING 10.8mm ID x 15.6mm OD x 2.4mm Thk;
-
C14HYD CONNECTOR PF 3/8'' x PF 3/8'' x 36mm L;
-
C1-24O-RING 13.8mm ID x 18.6mm OD x 2.4mm Thk;
-
C22HYD CONNECTOR PF 1/4'' x PF 1/4'' x 34mm L;
-
C2-22O-RING 10.8mm ID x 15.6mm OD x 2.4mm Thk;
-
D12HYD CONNECTOR PF 3/8'' x PF 3/8'' x 36mm L;
-
D1-22O-RING 13.8mm ID x 18.6mm OD x 2.4mm Thk;
Select All

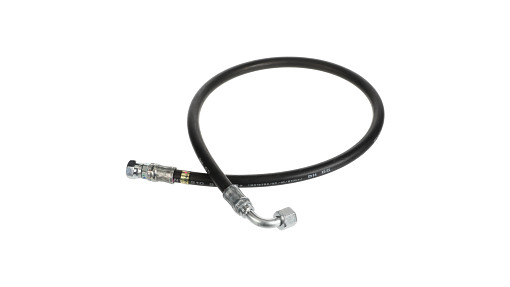

Select
Ref.
A1Qty
4Availability
Part #
PM02H01011D4Description
HOSE 9.5mm ID x 16.9mm OD x 1050mm L;Img
Alts
Select
Ref.
A2Qty
2Availability
Part #
HX23L04110DXDescription
HOSE 6.3mm ID x 10.6mm OD x 1100mm L;Img
Alts

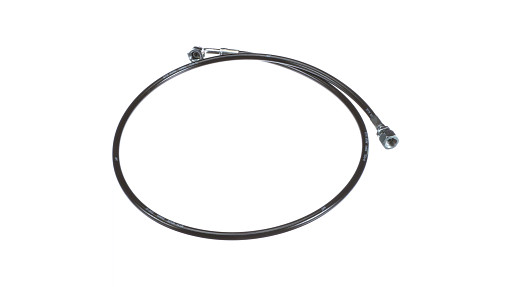

Select
Ref.
A4Qty
2Availability
Part #
PM02H01009D4Description
HOSE 5.1mm ID x 8.8mm OD x 1200mm L;Img
Alts
Select
Ref.
A5Qty
1Availability
Part #
PV02H01015P1Description
TUBE 11mm ID x 15mm OD x 356mm L;Img
Alts
Select
Ref.
A6Qty
1Availability
Part #
PV02H01016P1Description
TUBE 11mm ID x 15mm OD x 356mm L;Img
Alts
Select
Ref.
A7Qty
2Availability
Part #
PV02H01012D1Description
HOSE 9.5mm ID x 16.9mm OD x 400mm L;Img
Alts
Select
Ref.
A8Qty
2Availability
Part #
PW01P01003DCDescription
PROTECTIVE SLEEVE 45mm ID x 50mm OD x 730mm L;Img
Alts
Select
Ref.
A9Qty
4Availability
Part #
PX02H01001P1Description
GROMMET 52mm ID x 82mm OD x 33mm Thk;Img
Alts
Select
Ref.
A11Qty
2Availability
Part #
PV01P01007P1Description
WASHER 8.5mm ID x 25mm OD x 2.3mm Thk;Img
Alts
Select
Ref.
A12Qty
2Availability
Part #
ZW26X08000Description
LOCK WASHER 8mm ID x 15mm OD x 2.0mm Thk; LockImg
Alts
Select
Ref.
A13Qty
2Availability
Part #
ZS18C08035Description
SCREW Hex, M8 x 1.25 x 35mm; CAPImg
Alts
Select
Ref.
B1Qty
6Availability
Part #
HH25S06006G1Description
HYD CONNECTOR PF 3/8'' x PF 3/8'' x 36mm L;Img
Alts
Select
Ref.
B1-2Qty
6Availability
Part #
ZD12P01400Description
O-RING 13.8mm ID x 18.6mm OD x 2.4mm Thk;Img
Alts
Select
Ref.
B2Qty
2Availability
Part #
HH45S04004G1Description
45 ELBOW PF 1/4'' x PF 1/4'';Img
Alts
Select
Ref.
B2-2Qty
2Availability
Part #
ZD12P01100Description
O-RING 10.8mm ID x 15.6mm OD x 2.4mm Thk;Img
Alts

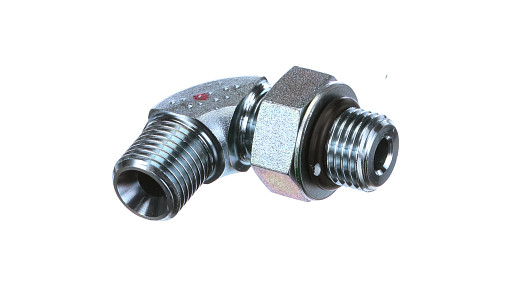

Select
Ref.
B3Qty
2Availability
Part #
HH35S04004G1Description
90 ELBOW PF 1/4'' x PF 1/4'';Img
Alts
Select
Ref.
B3-2Qty
2Availability
Part #
ZD12P01100Description
O-RING 10.8mm ID x 15.6mm OD x 2.4mm Thk;Img
Alts
Select
Ref.
C1Qty
4Availability
Part #
HH25S06006G1Description
HYD CONNECTOR PF 3/8'' x PF 3/8'' x 36mm L;Img
Alts
Select
Ref.
C1-2Qty
4Availability
Part #
ZD12P01400Description
O-RING 13.8mm ID x 18.6mm OD x 2.4mm Thk;Img
Alts
Select
Ref.

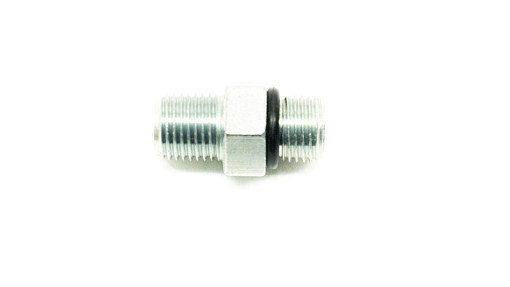

C2Qty
2Availability
Part #
HH25S04004G1Description
HYD CONNECTOR PF 1/4'' x PF 1/4'' x 34mm L;Img
Alts
Select
Ref.
C2-2Qty
2Availability
Part #
ZD12P01100Description
O-RING 10.8mm ID x 15.6mm OD x 2.4mm Thk;Img
Alts
Select
Ref.
D1Qty
2Availability
Part #
HH25S06006G1Description
HYD CONNECTOR PF 3/8'' x PF 3/8'' x 36mm L;Img
Alts
Select
Ref.
D1-2Qty
2Availability
Part #
ZD12P01400Description
O-RING 13.8mm ID x 18.6mm OD x 2.4mm Thk;Img
Alts
