06F03 - MANIFOLD, TURBOCHARGER & EXHAUST SYSTEM - A66
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    D4NN9424A
    DUCT; Manifold Assy., Intake, Includes: Ref. 2 & 2A
  • 1
    1
    E2NN9424BA
    MANIFOLD; Assy., Intake, Includes: Ref. 2 & 2A
  • 2
    1
    88071
    PLUG; Pipe, 1/8''-27
  • 2A
    1
    80781
    PLUG 3/8'' - 18 NPT; Pipe, Sq Hd, 3/8''-18
  • 3
    1
    C7NN9439D
    MANIFOLD GASKET; Intake Manifold
  • 3
    1
    E7NN9439AA
    GASKET; Intake Manifold
  • 4
    12
    34807S36
    LOCK WASHER; Washer, Lock, 3/8''
  • 5
    12
    88011
    BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
  • 6
    1
    C9NN9430B
    MANIFOLD; Exhaust, Front
  • 6
    1
    D8NN9430AB
    MANIFOLD; Exhaust, Front
  • 7
    1
    C9NN9431B
    MANIFOLD; Exhaust, Rear
  • 7
    1
    D5NN9431A
    MANIFOLD; Exhaust, Rear

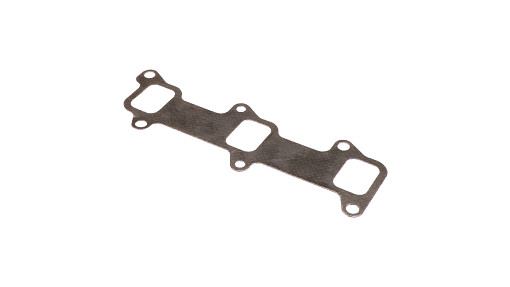

  • 8
    2
    E8NN9448AA
    GASKET 1.1mm Thk; Exhaust Manifold
  • 9
    12
    80702
    WASHER 0.44'' ID x 1'' OD x 0.08'' Thk;

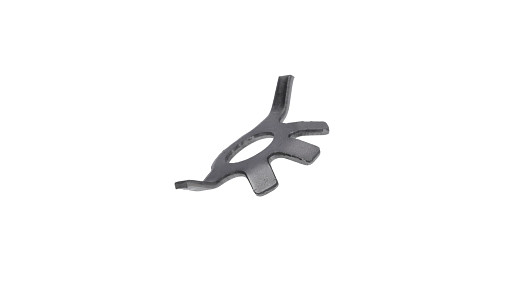

  • 10
    12
    378881S
    WASHER 10.67mm ID x 34.8mm OD x 1.52mm Thk; Lock, 3/8''
  • 11
    11
    354452S36
    BOLT; Hex, 3/8''-16 x 1-5/8''
  • 12
    1
    280177
    BOLT Hex, 3/8'' - 16 x 5'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 5''
  • 14
    1
    C9NN6N624D
    ADAPTER;
  • 15
    1
    C9NN5B209A
    GASKET; Adapter
  • 15A
    1
    D4NN9448A
    MANIFOLD GASKET; Gasket, Adapter
  • 16
    1
    83911642
    GASKET; Turbocharger
  • 17
    4
    87801551
    STUD; 3/8''-16-24 x 1-11/16''
  • 18
    4
    86531363
    STUD; 3/8''-24 x 1-7/16''
  • 19
    8
    86500310
    PANEL; Nut, Hex, 3/8''-24
  • 20
    1
    D1NN6N639A
    PIPE; Tube Assy., Oil Supply
  • 20
    1
    D8NN6N639AA
    TUBE 0.5'' OD; Assy., Oil Supply
  • 21
    1
    D3NN6N744A
    HYD CONNECTOR; Connector, Oil Supply Tube
  • 22
    1
    C9NN6N655A
    ADAPTER; Oil Supply Tube
  • 23
    1
    F2NN6N653AA
    SEAL; Adapter
  • 23
    1
    E6NN6N653AA
    GASKET; Adapter
  • 24
    2
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
  • 25
    1
    88275
    BOLT Hex, 5/16'' - 18 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 5/16''-18 x 1-1/2''
  • 26
    1
    9635884
    BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5;
  • 27
    1
    D1NN6N695A
    ELBOW; Oil Supply Tube
  • 27A
    1
    380961S7
    TUBE NUT 0.979'' Length; Nut & Seal Assy., Elbow
  • 28
    1
    D1NN6N626A
    TUBE; Assy., Oil Return
  • 28
    1
    D8NN6N626AA
    TUBE 0.75'' OD; Assy., Oil Return
  • 29
    1
    F2NN6N652AA
    GASKET 0.81mm Thk; Oil Return Tube
  • 29
    1
    E4NN6N652AB
    GASKET; Oil Return Tube
  • 30
    2
    34807S36
    LOCK WASHER; Washer, Lock, 3/8''
  • 31
    1
    280483
    BOLT Hex, 5/16'' - 24 x 1'', Full Thd, Gr 5; Screw, Cap, HH, G5, 5/16''-24 x 1''
  • 32
    1
    D0NN6N694A
    ELBOW; Oil Return Tube
  • 32A
    1
    251274
    NUT; & Seal Assy., Elbow
  • 33
    1
    C9NN6N625B
    TUBE; Turbocharger
  • 33
    1
    D5NN6N625C
    TUBE; Turbocharger (Replaces D5NN6N625C)
  • 34
    1
    D8NN6N650BA
    HOSE; Intake Manifold
  • 34
    1
    D8NN6N650AA
    INTAKE AIR HOSE 76.20 mm ID x 65.00 mm; Intake Manifold 76.20 mm ID x 65.00 mm
  • 35
    2
    82012732
    COLLAR; Clamp, Hose
  • 36
    1
    D1NN6N651A
    INTAKE AIR HOSE 50.80 mm ID x 49.50 mm; Turbocharger 50.80 mm ID x 49.50 mm
  • 36
    1
    D4NN6N651A
    INTAKE AIR HOSE 50.80 mm ID x 76.20 mm; Turbocharger 50.80 mm ID x 76.20 mm
  • 37
    2
    82012728
    HOSE CLAMP 50mm - 65mm, Worm Gear; CLAMP, HOSE, #40, 2.06/3.00 Type F Worm

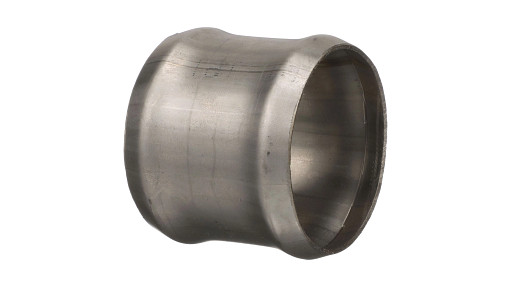

  • 38
    1
    C9NN6N649B
    RING 68.93mm ID x 77.8mm OD x 66.04mm L; Exhaust Seal
  • 38
    AR
    D5NN6N649A
    RING; Exhaust Seal, 3.061'' OD x 2.58''
  • 38
    AR
    D5NN6N649B
    RING; Exhaust Seal, 3.564'' OD x 2.08''
  • 39
    1
    C9NN6N632B
    FLANGE; Turbocharger Exhaust
  • 39
    1
    D8NN6N632AA
    FLANGE; Turbocharger Exhaust
  • 40
    1
    C9NN6N654A
    SHIELD; Heat, Valve Cover
  • 40
    1
    D5NN6N654A
    SHIELD; Heat, Valve Cover
  • 40
    1
    D8NN6N654AA
    SHIELD; Heat, Valve Cover
  • 41
    4
    34807S36
    LOCK WASHER; Washer, Lock, 3/8''
  • 42
    4
    378881S
    WASHER 10.67mm ID x 34.8mm OD x 1.52mm Thk; Lock, 3/8''
  • 43
    4
    88044
    BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 1-1/2''
  • 44
    1
    D3NN6N646B
    RIGID TUBE; Pipe Assy., Exhaust
  • 44A
    1
    D5NN6N646A
    PIPE; Pipe Assy., Exhaust
  • 44A
    1
    86548713
    PIPE; Pipe Assy., Exhaust
  • 44B
    1
    88044
    BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 1-1/2''
  • 44C
    1
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
  • 44D
    1
    80702
    WASHER 0.44'' ID x 1'' OD x 0.08'' Thk;
  • 44E
    1
    83912973
    CLAMP 8.9mm - 15.2mm; Assy., Exhaust Pipe
  • 45
    4
    34807S36
    LOCK WASHER; Washer, Lock, 3/8''
  • 45A
    4
    43000S36
    SCREW; Cap, HH, G8, Self-Locking, 3/8''-16 x 1-1/4''
  • 46
    4
    46008S36
    SCREW; Cap, HH, G5, Self-Locking, 3/8''-16 x 1''
  • 47
    1
    D3NN5D298A
    SUPPORT; Brace, Elbow, Exhaust Pipe
  • 47A
    1
    D5NN5D298A
    SUPPORT; Brace, Elbow, Exhaust Pipe
  • 48
    2
    80702
    WASHER 0.44'' ID x 1'' OD x 0.08'' Thk;
  • 48A
    1
    88902
    LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16
  • 49
    2
    88206
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
  • 49A
    1
    88011
    BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
  • 49B
    1
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
  • 49C
    1
    304724S36
    BOLT Hex, 7/16''-14 x 1 1/4'', G5; Screw, Cap, HH, G5, 7/16''-14 x 1-1/4''
  • 50
    1
    D4NN5230F
    MUFFLER; Assy., Vertical
  • 50
    1
    D6NN5230C
    MUFFLER; Assy., Vertical, France
  • 51
    1
    D5NN6N647A
    BODY; Pipe, Exhaust, 10-1/4'' Lg.
  • 51A
    1
    D4NN5N204A
    PIPE; Pipe, Extension, Muffler
  • 51A
    1
    86531501
    RIGID TUBE; Pipe, Extension, Muffler, ROPS or Noise Control
  • 51A
    1
    D6NN5N204A
    RIGID TUBE; Pipe, Extension, Muffler
  • 52
    2
    D8NN5252AA
    CLAMP 82.8mm ID; Assy.,, Exhaust Pipes
  • 53
    1
    C5NE9A462B
    SHIELD; Heat, Exhaust Manifold
  • 54
    2
    80664
    WASHER 0.38'' ID x 0.88'' OD x 0.08'' Thk;
  • 55
    2
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
  • 56
    2
    88731
    BOLT Hex, 5/16''- 18 x 3'', Gr 5;
