Ref.
Qty
Part #
Alts
Description
-
12O-RING 11.3mm ID x 2.4mm Thk, HNBR; Tap Off Valve
-
22O-RING 14mm ID x 2.62mm Thk, ACM; Tap Off Valve
-
32O-RING; Tap Off Valve
-
42HOSE; Power Steering
-
52PIN; Top Link Mounting
-
62LINK; Top Link 60 and Below
-
74CHAIN; Check
-
82O-RING 90.7mm ID x 100mm OD x 4.2mm Thk; Slipper
-
92O-RING 0.139'' Thk x 3.484'' ID, -238, Cl 5, 75 Duro;
-
102O-RING 17.12mm ID x 2.62'' Width; Cylinder Rear
-
112BALL BEARING 75mm ID x 130mm OD x 25mm W; Outer - Final Drive
-
122COVER; Input Shaft Seal
-
132CAM; Shuttle
-
144SPRING; Shifting, Levers
-
152SYNCHRONIZER; Assy, Forward and Reverse
-
168BRAKE DISC;
-
174OIL SEAL; Gear and Range Lever
-
182CABLE; Shuttle Interlock
-
192SEAL SEAL, CASSETE 45X70X17; Cassette, PTO Output Shaft
-
202SHAFT; PTO
-
212COVER; PTO
-
224SEAL; Oil
-
232COVER; Mud
-
242SEAL; Input Shaft
-
251CROWN WHEEL; Bevel Pinion Set, 9/38
-
262BALL BEARING 65mm ID x 120mm OD x 23mm W; Inner- Final Drive
-
272LOCK; Shuttle Interlock Pin
-
282O-RING 9.2mm ID x 1.78mm Thk, HNBR;
-
292BOOT; Parking Brake
-
302GASKET; Fill Between Hood
-
311BRACKET; Check Chain Mounting LH
-
321BRACKET; Check Chain Mounting RH
-
332PANEL; Side, LH
-
342PANEL; Side, RH
-
352GAS STRUT;
-
362SEAL; Hood Beading Lower
-
374BOOT; Gear Lever
-
386SCREW Phil Pan Hd, M8 x 25mm, Cl 4.8; Side Panels
-
3916STUD; Wheel
-
4016NUT; Wheel, Rear Tyre
-
412FENDER; Hood Rear Extension RH
-
422FENDER; Hood Rear Extension LH
-
432DECAL; Shuttler
-
444BUSHING 28mm ID x 32.09mm OD x 20.25mm L; Clutch and Brake Pedal
-
452CABLE; Throttle Lever
-
461SPECIAL TOOL; Stake For Pressing Outer
-
471SPECIAL TOOL; Stake For Pressing Outer
-
481SPECIAL TOOL; Tackle For Holding Gears
-
491SPECIAL TOOL; Slip, Dummy Guage
-
501SPECIAL TOOL; Pinion Nut Tigtening Tool
-
511SPECIAL TOOL; Gauge For Checking Roll
-
521SPECIAL TOOL; Open Ended Spanner For OC
-
531SPECIAL TOOL; Stake For Pinion
-
541SPECIAL TOOL; PTO Nut Tightening
-
551SPECIAL TOOL; PTO Shaft Rotation Socket
-
561TOOL; Dummy Distributor ? Hydraulics
-
571TOOL; Nut Tightening Tool For Coil Spring Pre-load
-
581TOOL; Seal Installer - Wheel Side - Heavy Duty Trumpets
-
591TOOL; Seal Installer - Wheel Side - Normal Trumpets
-
601TOOL; Seal Installer - Inner Side - HD Trumpet
-
611TOOL; Pto Seal in Hollow Shaft Installer
Select All
Ref.
1Qty
2Availability
Part #
14437785Description
O-RING 11.3mm ID x 2.4mm Thk, HNBR; Tap Off ValveImg
Alts
Ref.
2Qty
2Availability
Part #
5146468Description
O-RING 14mm ID x 2.62mm Thk, ACM; Tap Off ValveImg
Alts
Ref.
8Qty
2Availability
Part #
5126204Description
O-RING 90.7mm ID x 100mm OD x 4.2mm Thk; SlipperImg
Alts
Ref.
9Qty
2Availability
Part #
14465680Description

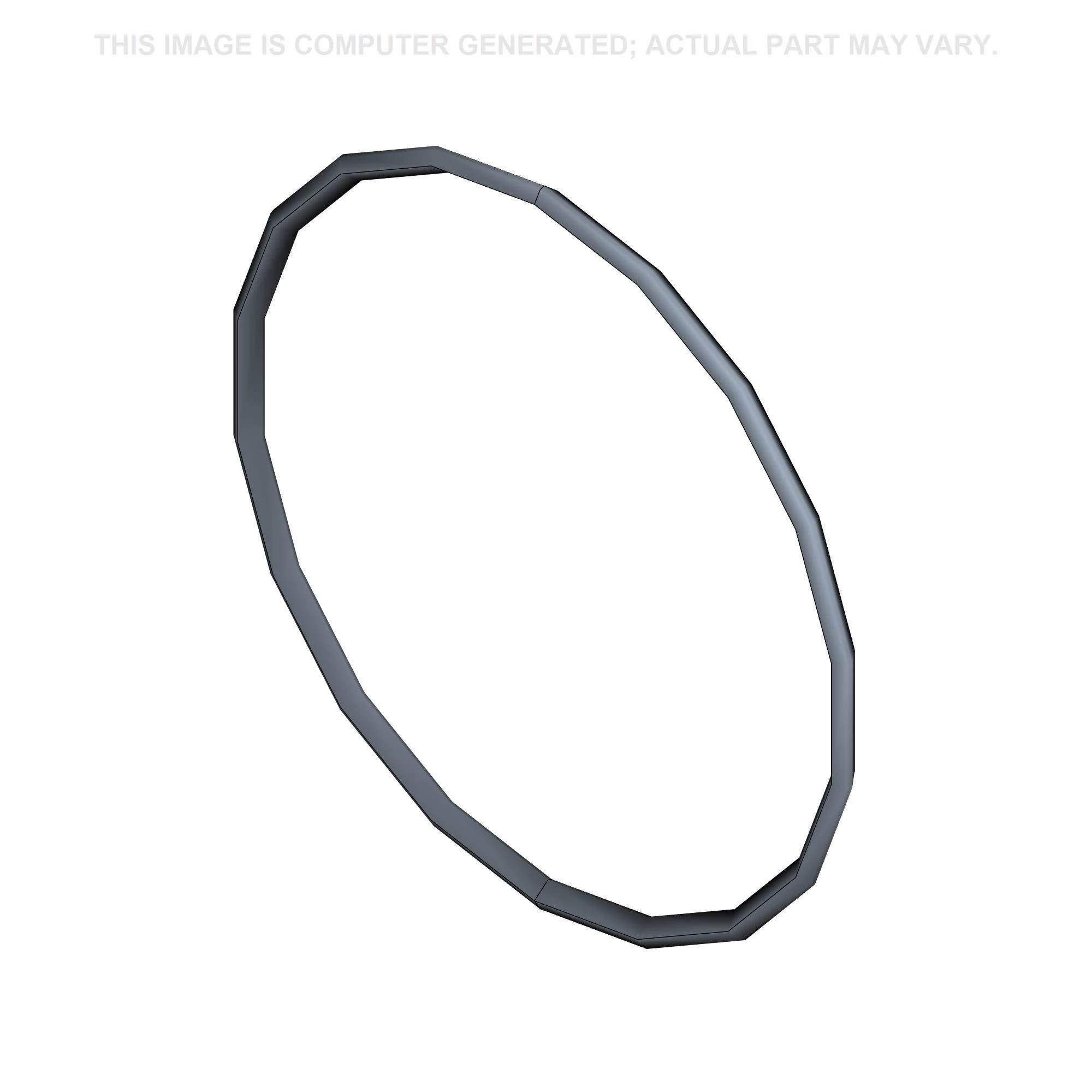

O-RING 0.139'' Thk x 3.484'' ID, -238, Cl 5, 75 Duro;Img
