00.00CX024[01] - MAINTENANCE PARTS, GRAIN ELEVATOR WEAR PLATES & BUBBLE-UP AUGER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    84441281
    WEAR PLATE; Grain flow sensor
  • 2
    1
    84334389
    WEAR PLATE; Grain elevator head, RH-side;STANDARD
  • 2
    1
    84433502
    WEAR PLATE; Grain elevator head, RH-side;FOR REINFORCED ONLY
  • 3
    1
    84334387
    WEAR PLATE; Grain elevator head, LH-side;STANDARD
  • 3

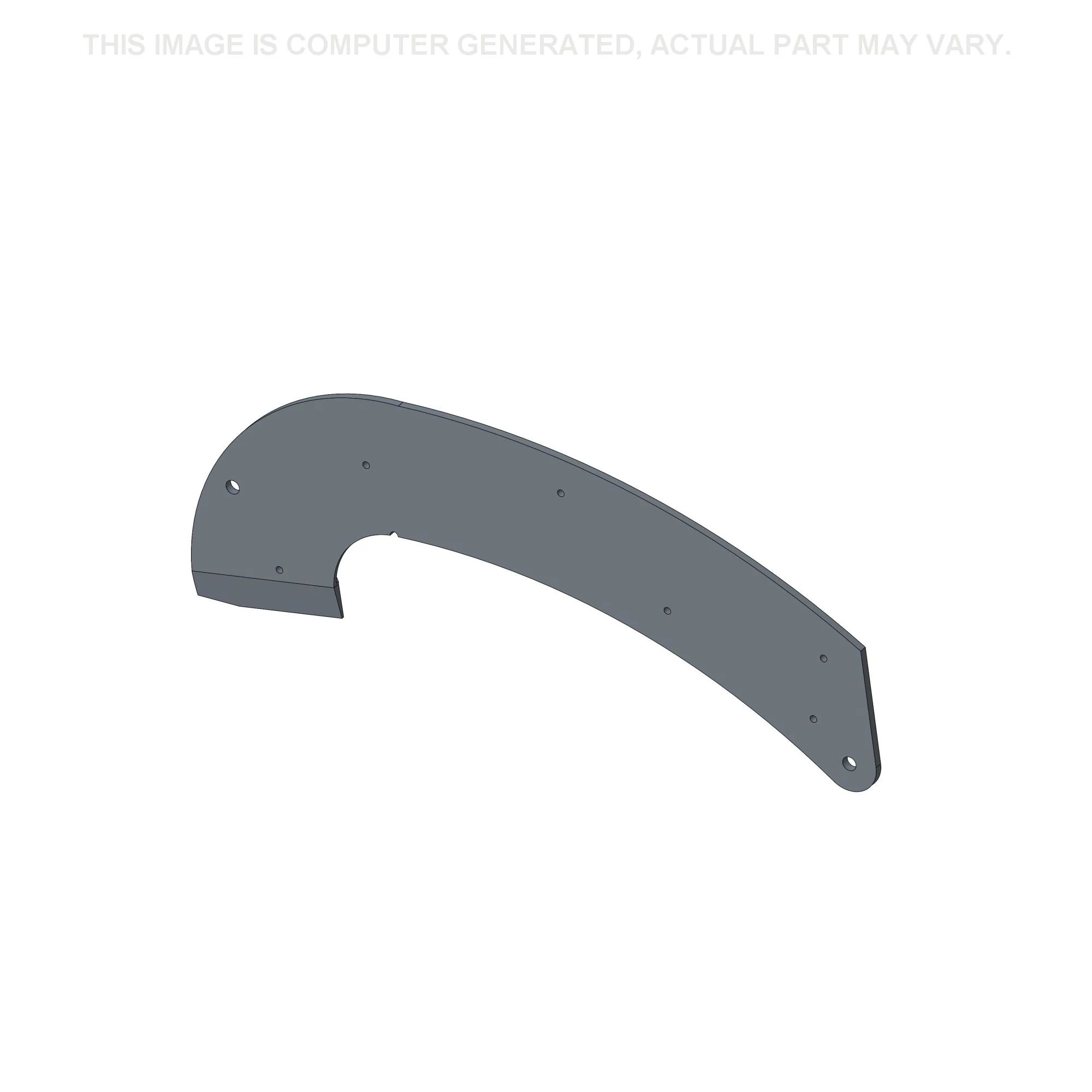

    1
    84433504
    WEAR PLATE; Grain elevator head, LH-side;FOR REINFORCED ONLY
  • 4
    1
    84439403
    WEAR PLATE;
  • 4
    1
    84439695
    WEAR PLATE; WITHOUT GRAIN FLOW SENSOR;STANDARD; (SN Break) Up to C659
  • 4
    1
    87736327
    WEAR PLATE; WITHOUT GRAIN FLOW SENSOR;STANDARD; (SN Break) From D660
  • 4
    1
    84441213
    WEAR PLATE; FOR REINFORCED ONLY; (SN Break) Up to C659
  • 4
    1
    87736327
    WEAR PLATE; FOR REINFORCED ONLY; (SN Break) From D660
  • 5
    2
    86548974
    FLANGE Bearing; ''Bubble-up'' tube
  • 6
    1
    84434989
    BALL BEARING 25mm ID x 52mm OD x 21.4mm W; ''Bubble-up'' tube
  • 7
    1
    84438582

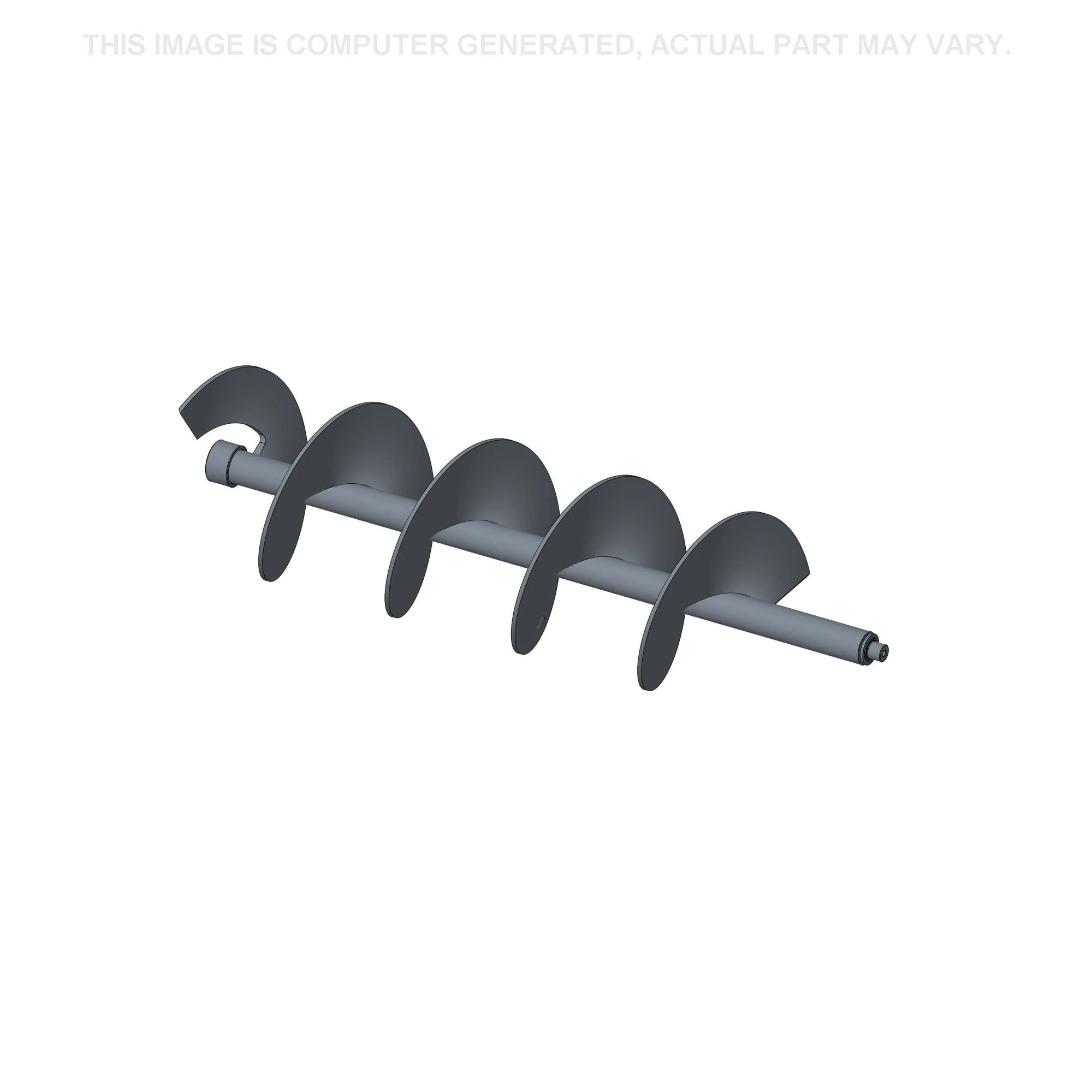

    AUGER; ''Bubble-up'' tube;FOR CX8060, CX8070, CX8080 AND CX8090 ONLY;FOR REINFORCED ONLY; (SN Break) Up to C615
  • 7
    1
    87283757
    AUGER; ''Bubble-up'' tube;FOR CX8060, CX8070, CX8080 AND CX8090 ONLY;FOR REINFORCED ONLY; (SN Break) From D616
  • 7
    1
    84438580

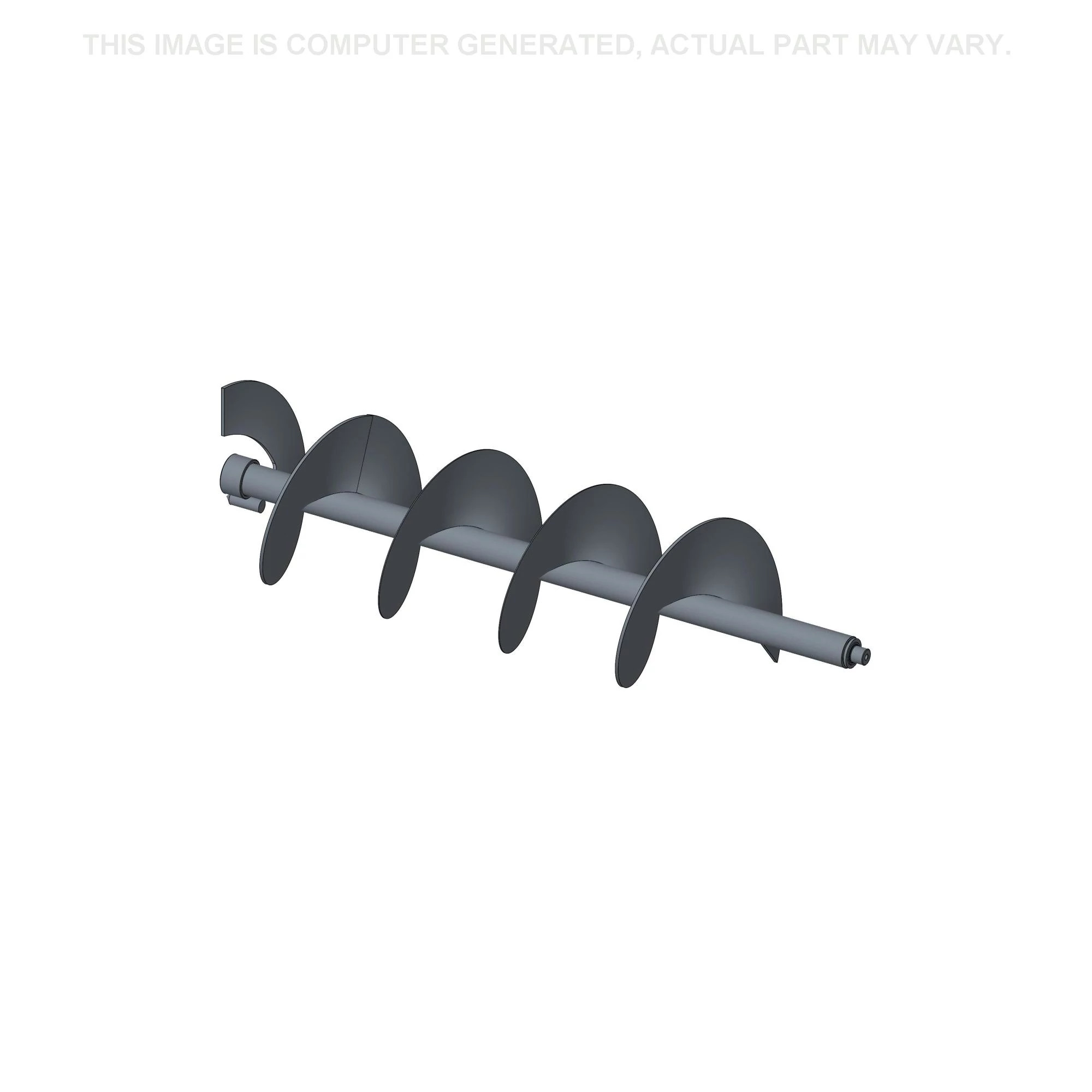

    AUGER; ''Bubble-up'' tube;FOR CX8040, CX8050, CX8060, CX8070, CX8080 AND CX8090 ONLY
  • 7
    1
    84438582
    AUGER; ''Bubble-up'' tube;FOR CX8040 AND CX8050 ONLY;FOR REINFORCED ONLY; (SN Break) Up to C659
  • 7
    1
    87283757
    AUGER; ''Bubble-up'' tube;FOR CX8040 AND CX8050 ONLY;FOR REINFORCED ONLY; (SN Break) From D660
  • 8
    1
    84438574
    AUGER; ''Bubble-up'' tube;FOR CX8040, CX8050, CX8060, CX8070, CX8080 AND CX8090 ONLY; (SN Break) Up to C615
  • 8
    1
    87283749
    AUGER; ''Bubble-up'' tube;FOR CX8040, CX8050, CX8060, CX8070, CX8080 AND CX8090 ONLY; (SN Break) Up to C615
  • 8
    1
    84438574
    AUGER; ''Bubble-up'' tube;FOR CX8040 AND CX8050 ONLY;FOR REINFORCED ONLY; (SN Break) Up to C659
  • 8
    1
    87283749
    AUGER; ''Bubble-up'' tube;FOR CX8040 AND CX8050 ONLY;FOR REINFORCED ONLY; (SN Break) From D660
