Ref.
Qty
Part #
Alts
Description
-
11BRACKET; CLAMP, outer shoe grass rod
-
21COMPRESSION SPRING; grass rod tension
-
1BOLT; 1/2 x 3 sq-hd mach
-
1WASHER; 17/32 x 1-1/4 x 16 ga
-
1NUT; 1/2-13 hex. lock
-
31ROD; outer shoe grass upper
-
41ROD; outer shoe grass center
-
51ROD; outer shoe grass lower
-
61CHANNEL; CLIP, outer shoe grass rod
-
2LOCK NUT 7/16''-14, GB; NUT, 7/16-14 hex. lock
-
71ROD; inner shoe grass
-
81CLAMP; CLIP, inner shoe grass rod
-
1CARRIAGE BOLT Short Sq Nk, 1/2'' - 13 x 1 1/2''; BOLT, 1/2 x 1-1/2 sq-nk crg
-
1LOCK WASHER 1/2''; WASHER, LOCK, 1/2''
-
1WASHER; 17/32 x 1-1/2 x 11 ga
-
1NUT 1/2''-13, G5;
-
91SHOE; SOLE, inner shoe
-
1BOLT (SPREADER); BOLT, 1/2 x 1-1/4 hex-hd mach
-
1CARRIAGE BOLT Short Sq Nk, 1/2'' - 13 x 1 1/2''; BOLT, 1/2 x 1-1/2 sq-nk crg
-
1CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1 3/4'', Gr 5; BOLT, 1/2 x 1-3/4 sq-nk crg
-
3LOCK WASHER 1/2''; WASHER, LOCK, 1/2''
-
1WASHER; 17/32 x 1-1/2 x 11 ga
-
1WASHER; 17/32 x 1 x 11 ga
-
3NUT 1/2''-13, G5;
-
2PLOW BOLT; BOLT, 3/8-16 x 1-3/8 t-hd plow
-
2LOCK NUT 3/8''-16, GB; NUT, 3/8-16 hex. MC-Lean-Fogg lock
-
1CARRIAGE BOLT #4, 5/8'' - 11 x 2'', Gr 2; BOLT, 5/8-11 x 2 no. 4 plow
-
2CARRIAGE BOLT #4, 5/8'' - 11 x 2 1/2'', Gr 2; BOLT, 5/8-11 x 2-1/2 no. 4 plow
-
3LOCK NUT 5/8''-11, GB; NUT, 5/8-11 hex. MC-Lean-Fogg lock
-
111PLATE; PLATE, knife head cap front wearing
-
124SHIM .0179'' Thk; Knife head cap (or as required) .0179'' Thk
-
131BAR; CAP, knife head rear upper
-
141BAR; CAP, knife head rear lower
-
151BAR; PLATE, knife head cap rear wearing
-
13NO LONGER SERVICED; 7/16-14 hex.
-
14PLOW BOLT 7/16'' - 14 x 1 5/8'', Gr 5; BOLT, 7/16-14 x 1-21/32 no. 3 plow guard, long guard
-
14NO LONGER SERVICED; 7/16-14 hex.
-
171PLATE; CAP, knife head front
-
4WASHER 13/32'' x 3/4'' x 16 ga; 13/32 x 3/4 x 16 ga
-
1824GUARD; GUARD W/LEDGER PLATE, heavy
-
191PLATE; LEDGER PLATE, 1 per guard, 2 for double pointed guard
-
1RIVET Countersunk, 4.76mm OD x 25.4mm L; 3/16 x 1 74 deg csk-hd tubular, 2 per ledger plate, one pound package
-
1RIVET; 3/16 x 1-3/8 74 deg csk-hd
-
2012GUARD; double steel Windrower;REF: #20 - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.
-
213GUARD; plain, used w/double pointed guard, 2 used with MC2041Z & 484000R11
-
221GUARD; W/PLAIN SERR. LEDGER PLATE, inner, used w/guard MC2041Z
-
221GUARD; W/PLAIN SERRATED LEDGER PLATE, 455634R1, knife, for cutter bar w/3 in. row spacing
-
231GUARD; W/LEDGER PLATE, outer, used w/guard, MC2041Z
-
247PLATE ASSY.; PLATE, wearing
-
256SUPPORT; HOLDER, low arch knife
-
261CLAMP; HOLDER, high arch knife
-
271SHOE; W/LEDGER PLATE, outer
-
2NO LONGER SERVICED; 7/16-14 hex.
-
2LOCK WASHER 7/16''; WASHER, LOCK, 7/16''
-
281PLATE; LEDGER PLATE, outer shoe serrated
-
291SOLE; W/BRACKET, outer shoe
-
1BOLT (SPREADER); BOLT, 1/2-13 x 1-3/16 special sq-hd
-
1NUT 1/2''-13, G5;
-
301KNIFE; W/HEAVY SMOOTH SECTION
-
301KNIFE; W/HEAVY UNDERSERRATED SECTION
-
301KNIFE ASSY; KNIFE W/HEAVY UNDERSERRATED SECTION
-
311HEAD; knife, for knives w/heavy sections
-
311HEAD; knife, for knives w/regular sections
-
10RIVET; no. 5-1/2 x 15/16 small ov-hd
-
3327KNIFE SECTION; SECTION, heavy smooth knive, replaces M3331/2
-
3327KNIFE SECTION; SECTION, heavy underserrated knife, replaces M22831
-
3327KNIFE SECTION; SECTION, underserrated knive, replaces ME333
-
1RIVET; no. 6 x 5/8 pln o/hd, 2 per section, two pound package
-
341VALVE; SECTION W/RIVETS, smooth heavy triplet end cr-pltd
-
341KNIFE SECTION; SECTION W/RIVETS, underserrated heavy triplet end cr-pltd
-
341KNIFE SECTION; SECTION W/RIVETS, regular underserrated triplet end cr-pltd
-
2RIVET; no. 5-1/2 x 5/8 small ov-hd cd-pltd, one pound package
-
352PIN; sector outer
-
2PIN; 1/4 x 2 slt spring
-
361BAR; BACK, 7 foot knive
-
1GAUGE; ledger plate
Select All
Select
Ref.
1Qty
1Availability
Part #
471475R1Description
BRACKET; CLAMP, outer shoe grass rodImg
Alts
Select
Ref.
2Qty
1Availability
Part #
M1015Description
COMPRESSION SPRING; grass rod tensionImg
Alts
Select
Ref.
6Qty
1Availability
Part #
471479R1Description
CHANNEL; CLIP, outer shoe grass rodImg
Alts
Select
Ref.
Qty
2Availability
Part #
664646R1Description
LOCK NUT 7/16''-14, GB; NUT, 7/16-14 hex. lockImg
Alts
Select
Ref.
8Qty
1Availability
Part #
461383R1Description
CLAMP; CLIP, inner shoe grass rodImg
Alts
Select
Ref.
Qty
1Availability
Part #
15041R1Description
CARRIAGE BOLT Short Sq Nk, 1/2'' - 13 x 1 1/2''; BOLT, 1/2 x 1-1/2 sq-nk crgImg
Alts
Select
Ref.
Qty
1Availability
Part #
103323Description
LOCK WASHER 1/2''; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
Qty
1Availability
Part #
17448R1Description
BOLT (SPREADER); BOLT, 1/2 x 1-1/4 hex-hd machImg
Alts
Select
Ref.
Qty
1Availability
Part #
15041R1Description
CARRIAGE BOLT Short Sq Nk, 1/2'' - 13 x 1 1/2''; BOLT, 1/2 x 1-1/2 sq-nk crgImg
Alts
Select
Ref.
Qty
1Availability
Part #

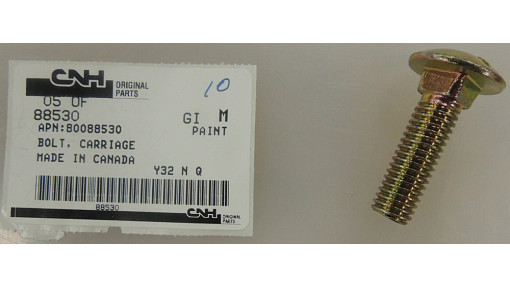

88530Description
CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1 3/4'', Gr 5; BOLT, 1/2 x 1-3/4 sq-nk crgImg
Alts
Select
Ref.
Qty
3Availability
Part #
103323Description
LOCK WASHER 1/2''; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
Qty
2Availability
Part #
Q701Description
PLOW BOLT; BOLT, 3/8-16 x 1-3/8 t-hd plowImg
Alts
Select
Ref.
Qty
2Availability
Part #
664645R1Description
LOCK NUT 3/8''-16, GB; NUT, 3/8-16 hex. MC-Lean-Fogg lockImg
Alts
Select
Ref.
Qty
1Availability
Part #
15783R1Description
CARRIAGE BOLT #4, 5/8'' - 11 x 2'', Gr 2; BOLT, 5/8-11 x 2 no. 4 plowImg
Alts
Select
Ref.
Qty
2Availability
Part #

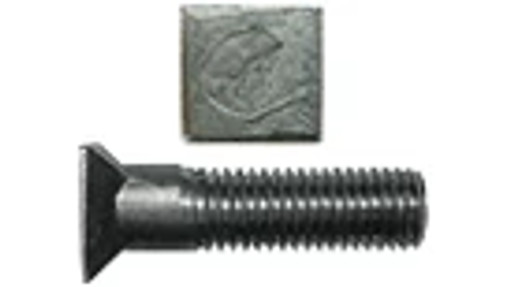

15796R1Description
CARRIAGE BOLT #4, 5/8'' - 11 x 2 1/2'', Gr 2; BOLT, 5/8-11 x 2-1/2 no. 4 plowImg
Alts
Select
Ref.
Qty
3Availability
Part #
667927R1Description
LOCK NUT 5/8''-11, GB; NUT, 5/8-11 hex. MC-Lean-Fogg lockImg
Alts
Select
Ref.
11Qty
1Availability
Part #
MB1263Description
PLATE; PLATE, knife head cap front wearingImg
Alts
Select
Ref.
12Qty
4Availability
Part #
MB1136Description
SHIM .0179'' Thk; Knife head cap (or as required) .0179'' ThkImg
Alts
Select
Ref.
13Qty
1Availability
Part #
M22161Description
BAR; CAP, knife head rear upperImg
Alts
Select
Ref.
14Qty
1Availability
Part #
M22162Description
BAR; CAP, knife head rear lowerImg
Alts
Select
Ref.
15Qty
1Availability
Part #
MB22863Description
BAR; PLATE, knife head cap rear wearingImg
Alts
Select
Ref.
Qty
14Availability
Part #
Q3596Description
PLOW BOLT 7/16'' - 14 x 1 5/8'', Gr 5; BOLT, 7/16-14 x 1-21/32 no. 3 plow guard, long guardImg
Alts
Select
Ref.
Qty
4Availability
Part #
Q1597Description
WASHER 13/32'' x 3/4'' x 16 ga; 13/32 x 3/4 x 16 gaImg
Alts
Select
Ref.
18Qty
24Availability
Part #
MC2041ZDescription
GUARD; GUARD W/LEDGER PLATE, heavyImg
Alts
Select
Ref.
19Qty
1Availability
Part #
455634R1Description
PLATE; LEDGER PLATE, 1 per guard, 2 for double pointed guardImg
Alts
Select
Ref.
Qty
1Availability
Part #
407039R91Description
RIVET Countersunk, 4.76mm OD x 25.4mm L; 3/16 x 1 74 deg csk-hd tubular, 2 per ledger plate, one pound packageImg
Alts
Select
Ref.
Qty
1Availability
Part #
14022R1Description
RIVET; 3/16 x 1-3/8 74 deg csk-hdImg
Alts
Select
Ref.
20Qty
12Availability
Part #
483500R3Description
GUARD; double steel Windrower;REF: #20 - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.Img
Alts
Select
Ref.
21Qty
3Availability
Part #

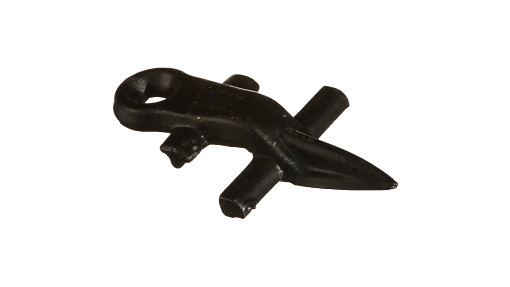

472717R2Description
GUARD; plain, used w/double pointed guard, 2 used with MC2041Z & 484000R11Img
Alts
Select
Ref.
22Qty
1Availability
Part #
MC2042ZDescription
GUARD; W/PLAIN SERR. LEDGER PLATE, inner, used w/guard MC2041ZImg
Alts
Select
Ref.
22Qty
1Availability
Part #
484000R11Description
GUARD; W/PLAIN SERRATED LEDGER PLATE, 455634R1, knife, for cutter bar w/3 in. row spacingImg
Alts
Select
Ref.
23Qty
1Availability
Part #
MC2043ZDescription
GUARD; W/LEDGER PLATE, outer, used w/guard, MC2041ZImg
Alts
Select
Ref.
Qty
2Availability
Part #
103322Description
LOCK WASHER 7/16''; WASHER, LOCK, 7/16''Img
Alts
Select
Ref.
28Qty
1Availability
Part #

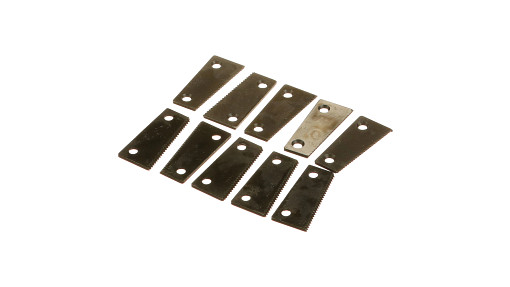

MA330Description
PLATE; LEDGER PLATE, outer shoe serratedImg
Alts
Select
Ref.
Qty
1Availability
Part #
D266Description
BOLT (SPREADER); BOLT, 1/2-13 x 1-3/16 special sq-hdImg
Alts
Select
Ref.
30Qty
1Availability
Part #
MA22837Description
KNIFE; W/HEAVY UNDERSERRATED SECTIONImg
Alts
Select
Ref.
30Qty
1Availability
Part #
MA22670Description
KNIFE ASSY; KNIFE W/HEAVY UNDERSERRATED SECTIONImg
Alts
Select
Ref.
31Qty
1Availability
Part #
MA999Description
HEAD; knife, for knives w/heavy sectionsImg
Alts
Select
Ref.
31Qty
1Availability
Part #
MC139Description
HEAD; knife, for knives w/regular sectionsImg
Alts
Select
Ref.
Qty
10Availability
Part #
12712R1Description
RIVET; no. 5-1/2 x 15/16 small ov-hdImg
Alts
Select
Ref.
33Qty
27Availability
Part #
826724C1Description
KNIFE SECTION; SECTION, heavy smooth knive, replaces M3331/2Img
Alts
Select
Ref.
33Qty
27Availability
Part #
826722C1Description
KNIFE SECTION; SECTION, heavy underserrated knife, replaces M22831Img
Alts
Select
Ref.
33Qty
27Availability
Part #
826723C1Description
KNIFE SECTION; SECTION, underserrated knive, replaces ME333Img
Alts
Select
Ref.
Qty
1Availability
Part #
991059R91Description
RIVET; no. 6 x 5/8 pln o/hd, 2 per section, two pound packageImg
Alts
Select
Ref.
34Qty
1Availability
Part #
467455R11Description
VALVE; SECTION W/RIVETS, smooth heavy triplet end cr-pltdImg
Alts
Select
Ref.
34Qty
1Availability
Part #
467456R11Description
KNIFE SECTION; SECTION W/RIVETS, underserrated heavy triplet end cr-pltdImg
Alts
Select
Ref.
34Qty
1Availability
Part #
467458R11Description
KNIFE SECTION; SECTION W/RIVETS, regular underserrated triplet end cr-pltdImg
Alts
Select
Ref.
Qty
2Availability
Part #
MB133Description
RIVET; no. 5-1/2 x 5/8 small ov-hd cd-pltd, one pound packageImg
Alts
