88.100.35[02] - HYDRAULIC WEIGHT TRANSFER ATTACHMENT 12/16 ROW
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    47525652

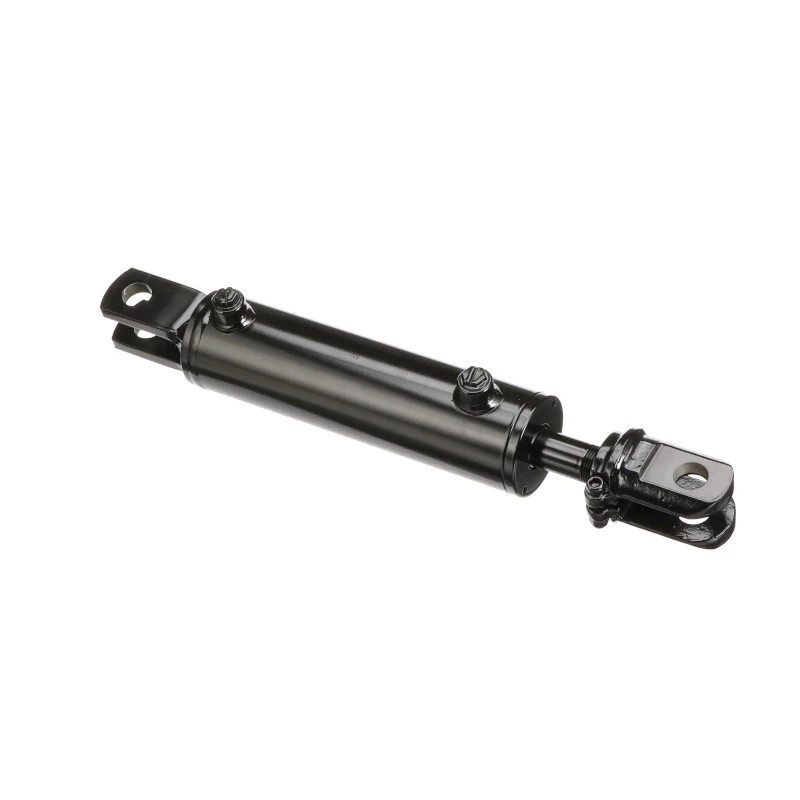

    HYDRAULIC CYLINDER; 3000 PSI
  • 2
    4
    87023161
    HEADED PIN 1'' x 3'';
  • 3
    4
    86632592
    WASHER 1.06'' ID x 2'' OD x 0.13'' Thk;
  • 4
    4
    87041
    COTTER PIN 1/4'' x 1 3/4'';
  • 5
    1
    47811408
    BRACKET; Weight Management Red
  • 6
    1
    47666427
    VALVE BODY; Hydraulic
  • 7
    1
    277961A1
    VALVE; To Port 3
  • 8
    2
    84390792
    90 ELBOW 11/16''-16 ORFS x 3/4''-16 ORB; 3/8''
  • 9
    1
    87305436
    HYD CONNECTOR 11/16-16 ORFS, 9/16-18 ORB; To Port 1
  • 10
    2
    87610706
    REDUCER 1''-14 UNF-2A - 11/16-16 UNF-2A; 5/8''x3/8''
  • 11
    2
    86624028
    TUBE NUT 1''-14 ORFS;
  • 12
    1
    9840543
    90 ELBOW 90 Degree, 11/16''-16 x 9/16''-18 Adj, ORFS; To Port 2
  • 13
    1
    47745767
    HOSE; 10 mm ID x 1020 mm To Port 2
  • 14
    1
    47867183
    HOSE; 10 mm ID x 1090 mm To Port 3
  • 15
    1
    47745769
    HOSE; 6 mm ID x 560 mm
  • 16
    1
    47865688
    HOSE; 6 mm ID x 4250 mm To Right Wing Cylinder
  • 17
    2
    86507486
    CARRIAGE BOLT M8 x 1.25 x 20mm, Cl 8.8;
  • 18
    2
    86505868
    SERRATED NUT Hex, M8 x 1.25, Cl 8;
  • 19
    2
    15212821
    BOLT Hex, M6 x 1 x 45mm, Cl 8.8, Full Thd, ZND;
  • 20
    2
    86511444
    FLANGE NUT Hex, M6 x 1;
  • 21
    2
    47773907
    HYD CONNECTOR; Breather
  • 22
    1
    47773391
    SENSOR; To Port 4 Pressure
  • 23
    1
    83962539
    HYD CONNECTOR 1'' - 14 ORFS x 1-1/16 - 12 ORB;
  • 24
    1
    87610720
    HYD CONNECTOR 7/8'' - 14 ORB x 13/16'' - 16 ORFS;
  • 25
    2
    47728105
    UNION TEE; Hex
  • 26
    2
    86624133
    TEE 1''-14 ORFS x 1''-14 Sw Run;
  • 27
    1
    47744772

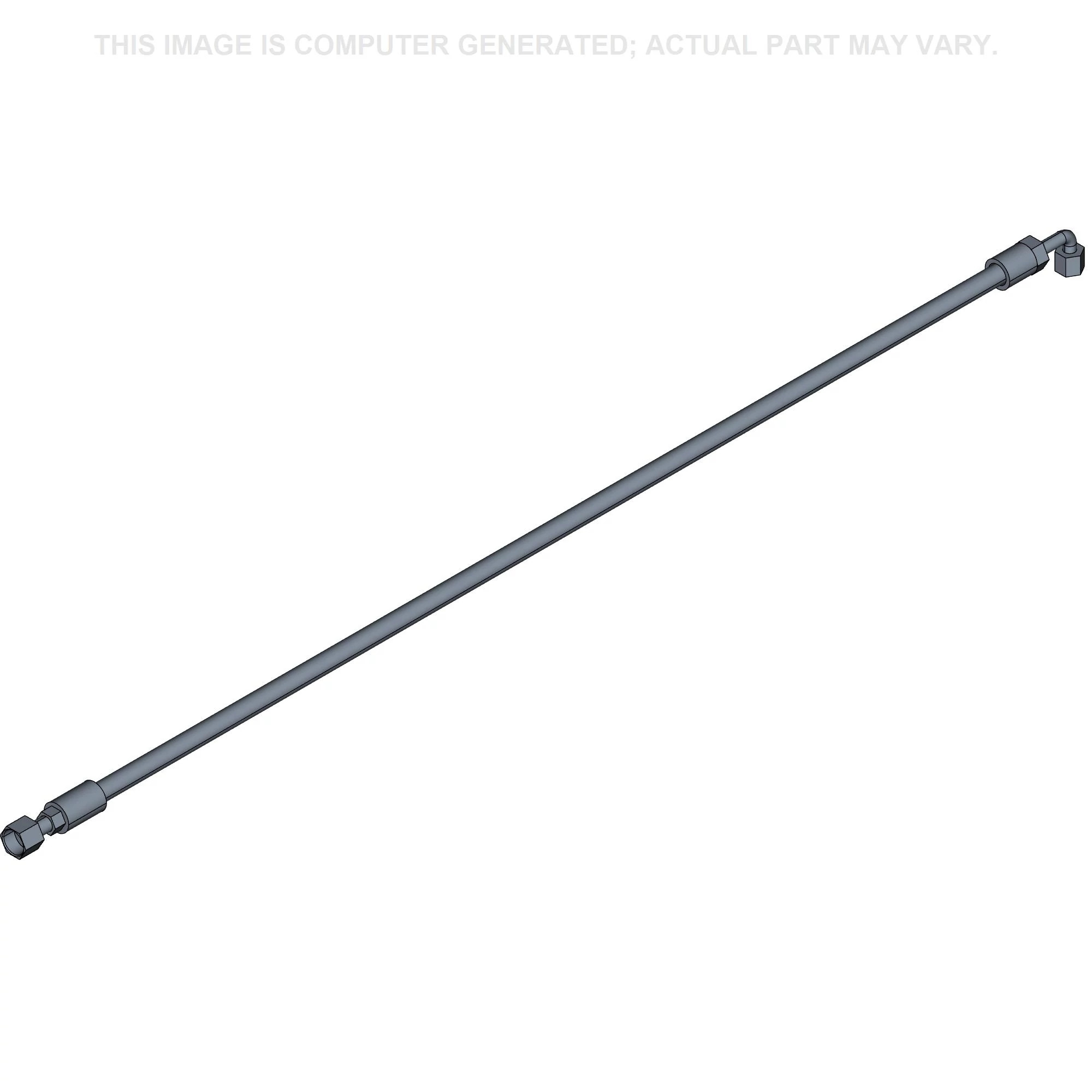

    HOSE; 13mm ID x 1330 mm To Port PBY
  • 28
    2
    47744774

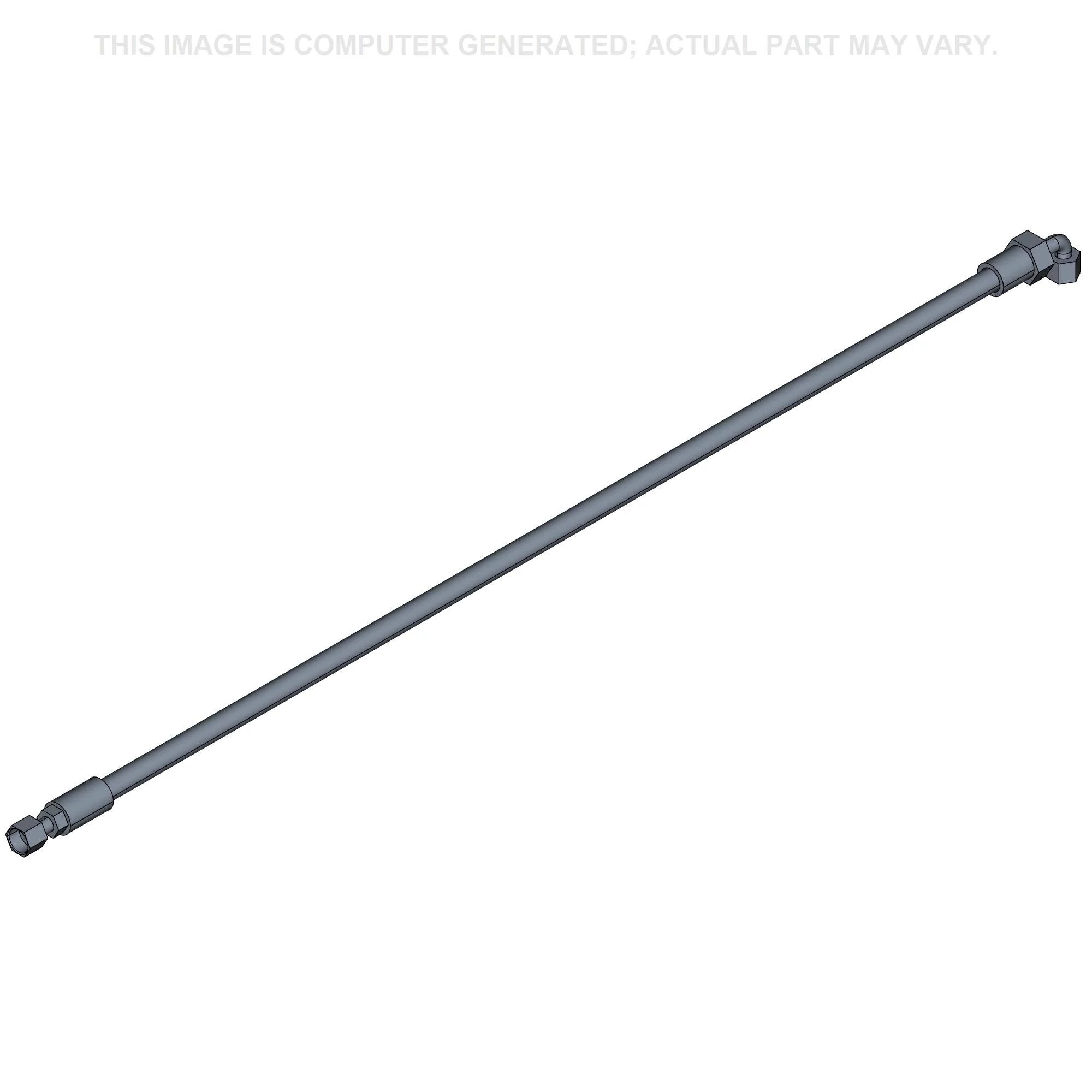

    HOSE; 16 mm ID x 1380 mm To Port TBY
  • 29
    2
    47818474
    CAP; 5/8''
  • 30
    2
    87381294
    LOCK NUT Hex, M16 x 0.625, 10.5mm High; 5/8''
