M-07 - FLYWHEEL PULLEY, BALANCED HEAD HOUSING
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    478785R92
    HOUSING; ASSY, balance head, consists of all parts listed below
  • 1
    1
    478787R11
    PULLEY; ASSY, flywheel
  • 1
    478789R1
    WASHER; pulley
  • 2
    1

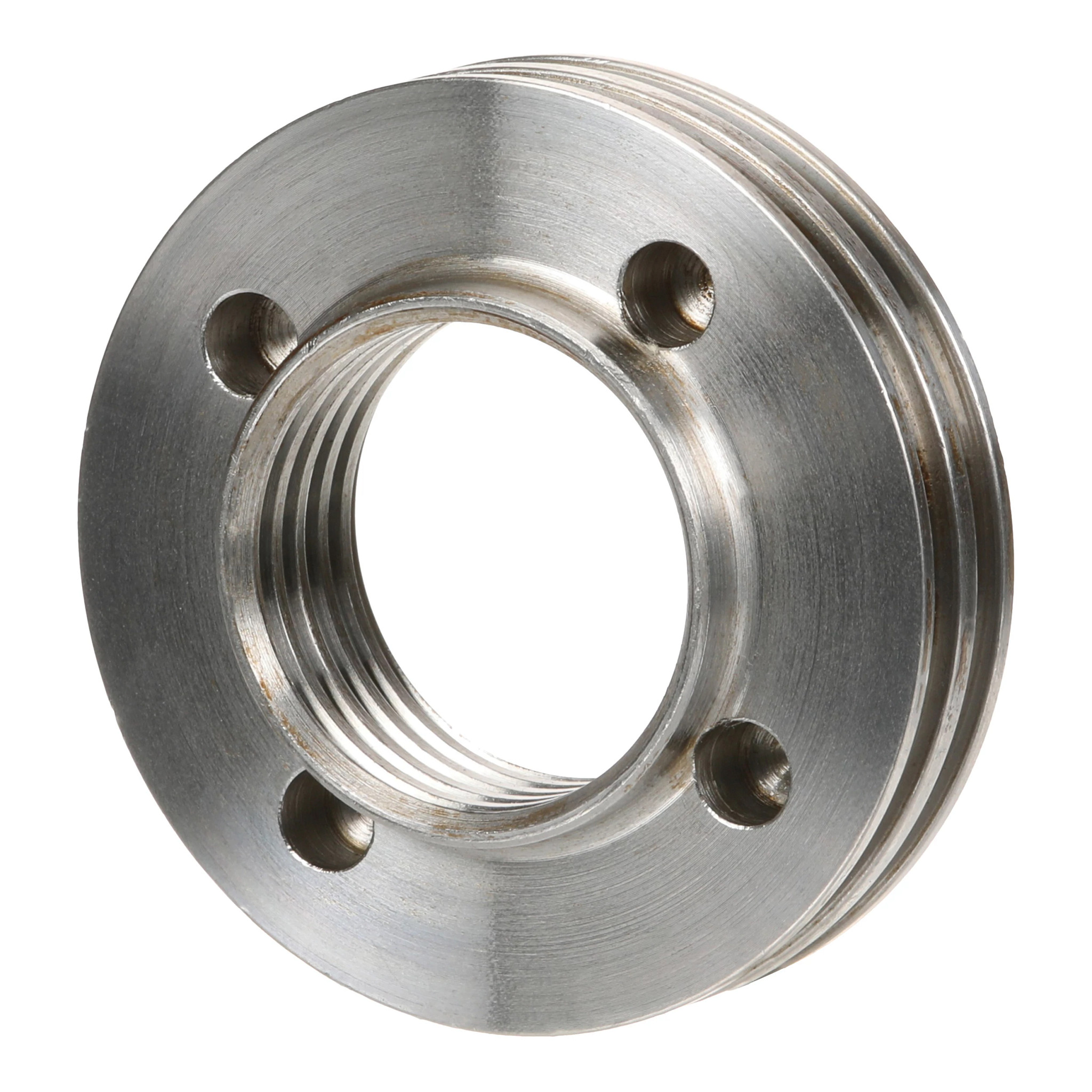

    478788R1
    LOCK NUT; lock;There is no seal, although there was one previously, now the nut itself acts as a seal
  • 3
    1
    651818R91
    ROLLER BEARING 31.77 mm ID x 16.08 mm; BEARING ASSY, housing cone
  • 4
    1
    651817R1
    BEARING CUP; BEARING, housing cup
  • 4
    1
    651817R1GV
    BEARING CUP; Value, Bearing Cup
  • 5
    2
    478790R91
    BEARING ASSY 38.1mm ID x 72.02mm OD x 20.64mm W; BEARING W/SEAL, wobble shaft housing
  • 6
    1
    Q53
    KEY 1/4'' Sq x 1'', Par;
  • 7
    1
    478786R11
    SHAFT; ASSY, wobble, consists of Ref. 2 and 5
  • 2
    254771R1
    NUT; 3/4-16 special hex.
  • 1
    21211R1
    WASHER; 25/32 x 1-1/2 x 7 ga C-Z
  • 8
    2
    458958R1
    COVER; CAP, yoke brg
  • 6
    26329R1
    BOLT 1/4'' x 1'', Gr 5; SCREW W/NYLON PELLET INSERT, 1/4-20 x 1 hex hd
  • 9
    2
    458955R1
    SHIM 50.8mm ID x 76.2mm OD x 0.05mm Thk; yoke bearing cap .002
  • 9
    6
    458956R1
    SHIM; yoke bearing cap .006, or as required
  • 9
    6
    458957R1
    SHIM 50.8mm ID x 63.5mm OD x 0.25mm Thk; yoke bearing cap .010, or as required
  • 10
    2
    458952R91
    BEARING, ROLLER, CYL; W/SEAL, balance yoke roller
  • 11
    1
    458953R3
    COVER; balanced head brg
  • 12
    1
    13019R1
    FITTING; 1/8-27 ptf str vented lub
  • 13
    1
    317596R1
    HOSE CLAMP #42, 2 5/8'', Spring; CLAMP, bearing housing cap
  • 14
    1
    371883R1
    BEARING CUP; Balanced head housing
  • 15
    1

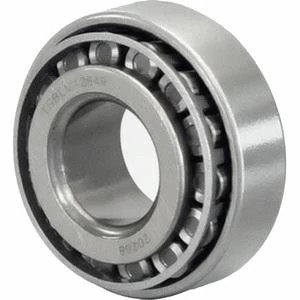

    371882R91
    ROLLER CAGE BEARING 20.64mm ID x 49.23mm OD x 19.84mm W; Assy, Balanced head housing
  • 16
    1
    458954R1
    CYLINDER END CAP; CAP, crankshaft brg housing
  • 1
    461678R1
    SEAL; SEALER, crankshaft brg housing cap
  • 17
    1
    487047R1
    HOUSING; wobble
  • 4
    143865C1
    BOLT Hex, 1/2'' - 13 x 1 1/4'', Gr 5, Nylon Pellet; SCREW W/NYLON PELLET INSERT, 1/2-13 x 1-1/4 hex-hd cap
  • 1
    143866C1
    BOLT Hex, 1/2'' - 13 x 1 3/4'', Gr 5, Nylon Pellet; SCREW W/NYLON PELLET INSERT, 1/2-13 x 1-3/4 hex-hd cap
  • 1
    181461
    BOLT Hex, 9/16'' - 18 x 2 1/2'', Gr 5; SCREW, 9/16-18 x 2-1/2 hex-hd cap, front hinge in pin clamp bolt
  • 1
    472215R1
    LOCK NUT 9/16''-12, GB; NUT, 9/16-18 hex. two-way lock
  • 18
    2

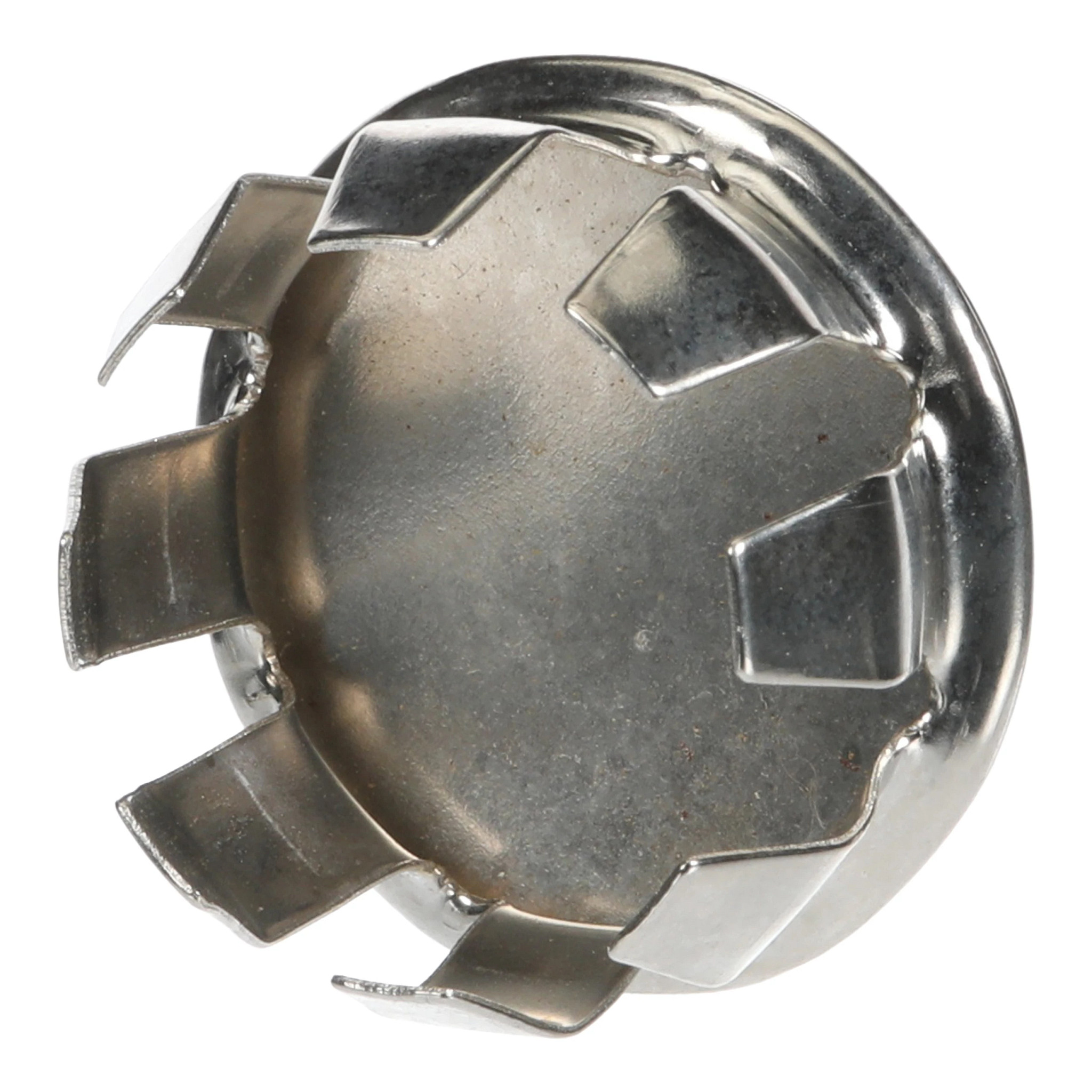

    464197R1
    PLUG; button
  • 19
    1
    458993R2
    PLUG; balance yoke grease chamber cork, built; (SN Break) Between 1968 and 1973
  • 2
    193-12
    LOCK WASHER Ext Tooth, 0.52'' ID x 0.89'' OD, STL, PLN; WASHER, LOCK, Ext Tooth, 1/2''
  • 2
    193-12
    LOCK WASHER Ext Tooth, 0.52'' ID x 0.89'' OD, STL, PLN; WASHER, LOCK, Ext Tooth, 1/2''
  • 20
    1
    467146R91
    BEARING ASSY Ball, 24.99mm ID x 52mm OD x 15mm W; balance yoke pivot stud
  • 21
    1
    458961R2
    STUD; balance yoke pivot
  • 1
    102615
    SET SCREW Hex Skt, 1/2'' - 13 x 1/2''; SCREW, 1/2-13 x 1/2 hex-soc-hd cup-pt set
  • 1
    462800R1
    WASHER; 1.000 x 1.625 x .250 felt
  • 22
    1

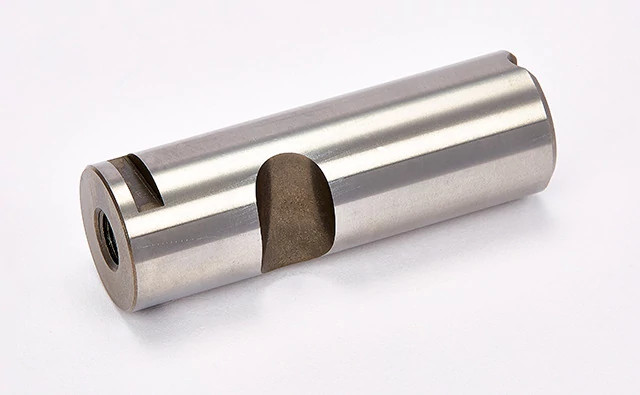

    458973R4
    PIN 25.41mm OD x 77.72mm L; knife
  • 1
    336132R1
    BOLT 1/2'' - 20 x 2 3/8'', Gr 8; SCREW, 1/2-20 x 2-3/8 type 4 hex-hd cap
  • 1
    25-118
    NUT 1/2''-20, G5; 1/2-20 hex.
  • 1
    181407
    BOLT Hex, 7/16'' - 20 x 2 1/4'', Gr 5; SCREW, 7/16-20 x 2-1/4 hex-hd cap
  • 2
    462799R1
    WASHER; 7/16 ext-tooth lock
  • 1
    271505
    BODY; 7/16-20 hex.
  • 23
    1
    487048R11
    YOKE; ASSY, balance
  • 1
    336132R1
    BOLT 1/2'' - 20 x 2 3/8'', Gr 8; SCREW, 1/2-20 x 2-3/8 type 4 hex-hd cap
  • 1
    25-118
    NUT 1/2''-20, G5; 1/2-20 hex.
  • 24
    1
    86636814
    LUBE NIPPLE 1/4''-28 x .52'' lg; FITTING, 1/4-28 ptf str lub
  • 25
    1
    219-31
    LUBE NIPPLE 30 Degree Elbow, 1/8'' - 27 NPTF; FITTING, 1/8-27 ptf 30 degree angle lub
  • 26
    1
    478797R91
    HOUSING; ASSY, wobble shaft
  • 1
    519416R1
    HEADED PIN 3/4'' x 2 5/16''; PIN, 3/4 x 2-5/16 C-Z std-hd
  • 1
    20340R1
    COTTER PIN 1/4'' x 1 1/2''; Pin, Split (Cotter), 1/4'' x 1 1/2''
  • 27
    1
    467215R1
    BUSHING 82.44mm ID x 87.15mm OD x 41.15mm L; rear shaft housing
  • 28
    1
    487051R1
    SHAFT; front hinge
  • 1
    608700R1
    WASHER; 1-9/32 x 2 x 16 ga C-Z
  • 1
    22442R1
    COTTER PIN 5/16'' x 2''; Pin, Split (Cotter), 5/16'' x 2''
  • 29
    1
    461252R1
    FITTING; 1/8-27 ptf 30 deg angle lub
  • 30
    1
    467216R1
    ARM; HINGE, rear
  • 1
    109461
    LUBE NIPPLE 1/8''-27 x .66 lg; NIPPLE, LUBE, , PTF 1/8''-27 x .66 lg
  • 2
    413-840
    BOLT Hex, 1/2'' - 13 x 2-1/2'', Gr 5; SCREW, 1/2-13 x 2-1/2 hex-hd cap
  • 2
    102637
    NUT 1/2''-13, G5;
  • 2
    103323
    LOCK WASHER 1/2''; WASHER, LOCK, 1/2''
  • 34
    1
    222689C1
    HOSE; balanced head drive shaft shield
  • 1
    461851R1
    BLOCK; runout check for use in determining runout on assembled wobble shaft trunnion and wobble shaft housing during the servicing and overhauling of the balanced head of subject machine mower
  • 1
    479342R94
    KIT; PACKAGE, wrist-action shaft service, consist of, (1) bolt 181407, (1) bushing 458971R1, (1) cap 458954R1, (1) fitting 109459, (1) instructions 1019676R3 (NSS), (1) key Q53, (1) nut 271505, (1) 103028, (1) nut 254485R1, (2) nut 254771R1, (1) pin 458973R4, (1) product graphic (NSS), (1) screw 336132R1, (6) screw 26329R1, (2) shim 458955R1, (6) shim 458956R1, (6) shim 458957R1, (1) washer 21211R1, (2) washer 462799R1, (1) washer 585556R1, (2) washer 543115R1
