TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11ENGINE OIL FILTER 110mm OD x 212mm L, M30 x 2;
-
21BREATHER; Engine Crankcase
-
31AIR FILTER Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc; Engine, Primary, Outer
-
41AIR FILTER Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc; Engine, Secondary, Inner
-
51FILTER; Engine Fuel, Primary, Spin On, If Used
-
51FUEL FILTER; Engine Fuel, Primary, Cartridge, If Used
-
61FUEL FILTER Water Separator, 89mm L x 89mm W x 55mm Thk, 30 Micron; Additional Separ Water Separator
-
72FUEL FILTER Spin-on, 96.5mm OD x 184mm L, M16 x 1.5, 30 Microns; Water Seperator, One On Engine/ One On Frame Rail
-
81FILTER, DEF; Def/ AdBlue Module, Primary
-
91FILTER, DEF In-Line; Def/ AdBlue, Insert, 30mm OAL
-
101BREATHER TANK VENT; Def/ AdBlue Tank Vent
-
112HYDRAULIC OIL FILTER; Service Kit, Contains 2 Filters And 2 O-Rings, Chaff Spreader/ Main Separator/ Hydraulic Bypass
-
121HYDRAULIC OIL FILTER 65mm OD x 159.5mm L, 1 7/16IN - 12 UN, 90 Microns; Unload System
-
131HYDRAULIC OIL FILTER In-line, 93.5mm OD x 203.8mm L, 27.4mm Hose Barb; Engine, Inline
-
141CAB FILTER A/C, 740mm L x 140.4mm W x 50mm Thk, Pleatloc; In- Cab, Overhead, Recirculation
-
151AIR FILTER PRIMARY 91mm ID x 164.5mm OD x 347mm L; Cab External, Fresh Air
-
161FILTER STRAINER 1-5/16'' - 12, 194mm L, 149 Micron; PTO, Suction
-
171FILTER, DEF; In Line
Select All
Select
Ref.
1Qty
1Availability
Part #

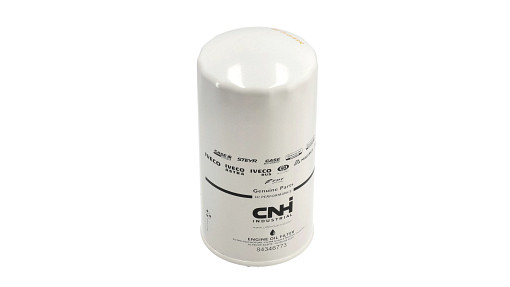

84346773Description
ENGINE OIL FILTER 110mm OD x 212mm L, M30 x 2;Img
Alts
Select
Ref.
3Qty
1Availability
Part #

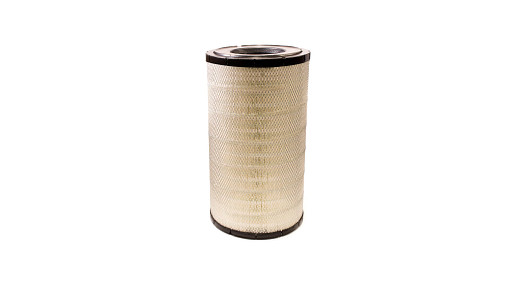

86998333Description
AIR FILTER Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc; Engine, Primary, OuterImg
Alts
Select
Ref.
4Qty
1Availability
Part #

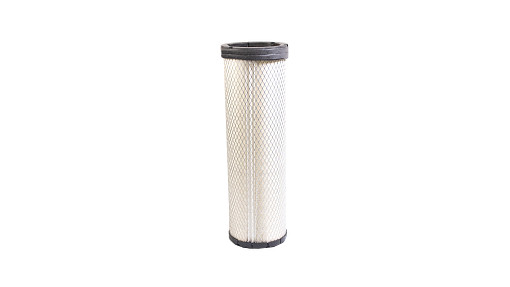

86998332Description
AIR FILTER Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc; Engine, Secondary, InnerImg
Alts
Select
Ref.
5Qty
1Availability
Part #
2996569Description
FILTER; Engine Fuel, Primary, Spin On, If UsedImg
Alts
Select
Ref.
5Qty
1Availability
Part #

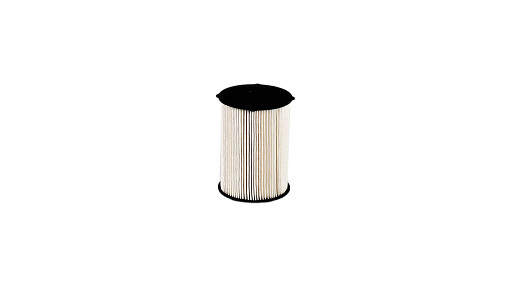

92039410Description
FUEL FILTER; Engine Fuel, Primary, Cartridge, If UsedImg
Alts
Select
Ref.
6Qty
1Availability
Part #

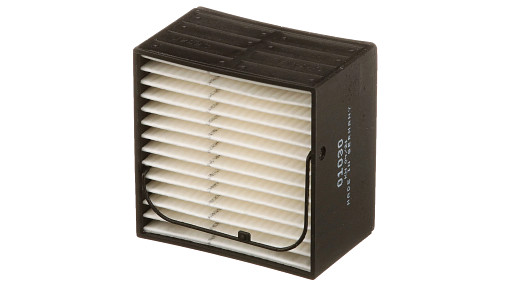

84477370Description
FUEL FILTER Water Separator, 89mm L x 89mm W x 55mm Thk, 30 Micron; Additional Separ Water SeparatorImg
Alts
Select
Ref.
7Qty
2Availability
Part #

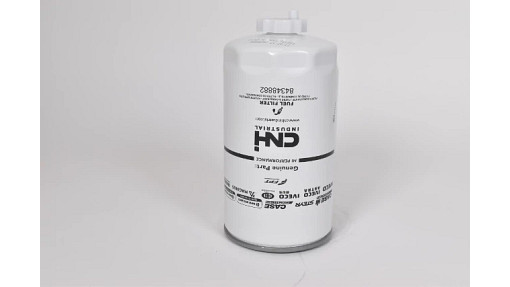

84348882Description
FUEL FILTER Spin-on, 96.5mm OD x 184mm L, M16 x 1.5, 30 Microns; Water Seperator, One On Engine/ One On Frame RailImg
Alts
Select
Ref.
8Qty
1Availability
Part #
84254852Description
FILTER, DEF; Def/ AdBlue Module, PrimaryImg
Alts
Select
Ref.
9Qty
1Availability
Part #

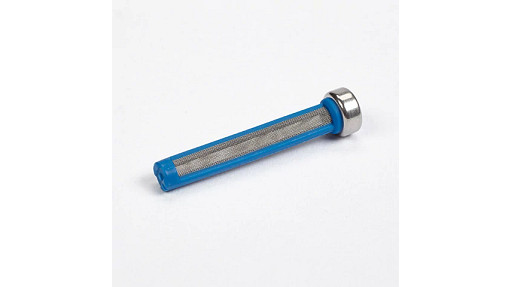

84247272Description
FILTER, DEF In-Line; Def/ AdBlue, Insert, 30mm OALImg
Alts
Select
Ref.
10Qty
1Availability
Part #

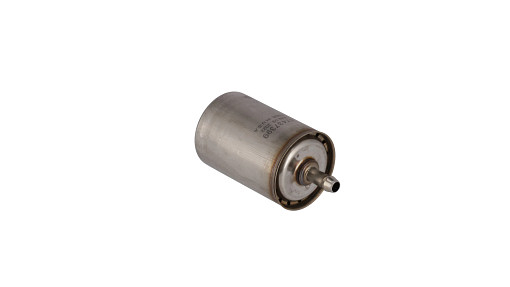

47437399Description
BREATHER TANK VENT; Def/ AdBlue Tank VentImg
Alts
Select
Ref.
11Qty
2Availability
Part #
1329214C1Description
HYDRAULIC OIL FILTER; Service Kit, Contains 2 Filters And 2 O-Rings, Chaff Spreader/ Main Separator/ Hydraulic BypassImg
Alts
Select
Ref.
12Qty
1Availability
Part #

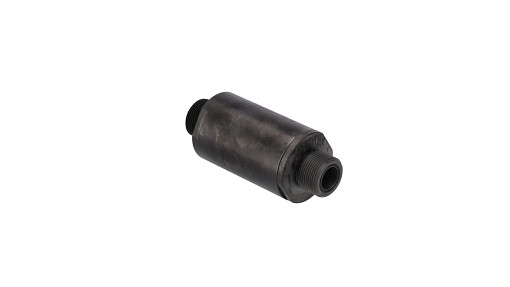

84181465Description
HYDRAULIC OIL FILTER 65mm OD x 159.5mm L, 1 7/16IN - 12 UN, 90 Microns; Unload SystemImg
Alts
Select
Ref.
13Qty
1Availability
Part #

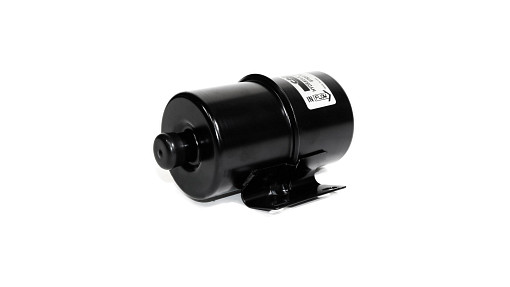

87684758Description
HYDRAULIC OIL FILTER In-line, 93.5mm OD x 203.8mm L, 27.4mm Hose Barb; Engine, InlineImg
Alts
Select
Ref.
14Qty
1Availability
Part #

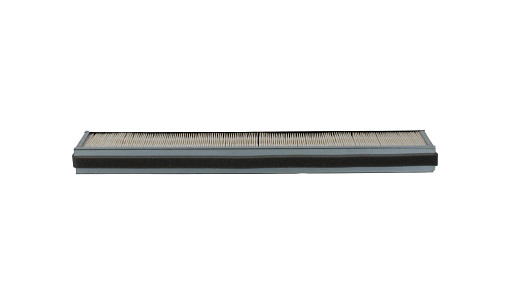

360260A2Description
CAB FILTER A/C, 740mm L x 140.4mm W x 50mm Thk, Pleatloc; In- Cab, Overhead, RecirculationImg
Alts
Select
Ref.
15Qty
1Availability
Part #
84217229Description
AIR FILTER PRIMARY 91mm ID x 164.5mm OD x 347mm L; Cab External, Fresh AirImg
Alts
Select
Ref.
16Qty
1Availability
Part #

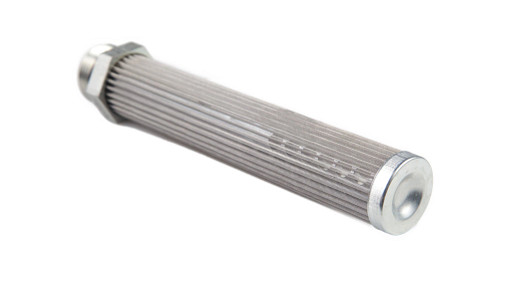

84253774Description
FILTER STRAINER 1-5/16'' - 12, 194mm L, 149 Micron; PTO, SuctionImg
Alts
