PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11HARNESS; ASSEMBLY - shaft speed rear
-
21ELEC CONNECTOR 2 Pin; CONNECTOR - harness
-
311ADAPTER; CONNECTOR - harness
-
42SENSOR; TRANSDUCER - pickup (For straw spreader and feeder)
-
51CASE ASSY.; MONITOR ASSEMBLY - shaft speed, with decal
-
6UARBULB C2F, #73, 14V; LAMP - trade No. 73, 14 volt
-
71SUPPRESSOR; - audible alarm
-
84TRANSMITTER; - monitor control (For rotary air screen, tailings auger, clean grain sensor, beater)
-
101SWITCH; - monitor control (For shoe)
-
111MAGNET; ASSEMBLY - sensor (For shoe)
-
121ANGLE; SUPPORT - shoe transmitter
-
132CARRIAGE BOLT Short NK, 5/16''-18 x 1/2'', G2; BOLT - round head square neck, 5/16 NC x 1/2 inch
-
14UARFLANGE NUT Flg, USR, 5/16''-18; - hex flange lock, 5/16 inch NC
-
173COLLIER; - sensor (For clean grain, tailings auger, beater)
-
181PASSE-FIL; - tube, 3/8 inch OD
-
192NUT; - hex jam, 3/4 inch NC
-
201WIRE HARNESS; ASSEMBLY - monitor (Used without straw spreader)
-
241BRACKET; - clean grain sensor
-
251IMÁN; ASSEMBLY - sensor (For rotary air screen)
-
262VIS AUTOTARAUDEUSE Sl Pan Hd, #8 x 1/2''; SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2''
-
271CANAL; - rotary air screen sensor mounting
-
283VIS STRIEE 5/16'' - 18 x 3/4''; BOLT - slotted truss head, 5/16 NC x 3/4 inch
-
301RUBBER WASHER; - rubber
-
311WASHER; - flat, 11/32 x 11/16 x 3/64 inch
-
341SUPPORT; ANGLE - rotary air screen sensor adjustment
-
361BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; Hex, 5/16''-18 x 3/4'', G5, Full Thd
-
371LOCK WASHER Helical Spring, 0.318'' ID, CST, ZND; WASHER, LOCK, 5/16''
-
381NUT 5/16''-18 NC, G5; - hex, 5/16 inch NC
-
441COLLAR; - tailing elevator shaft (1640E and 1680E)
-
441COLLAR; - tailing elevator shaft (1680E)
-
451COLLAR 31.88mm ID x 44.45mm OD x 23.24mm L; ASSEMBLY - clean grain auger locking
-
461BRACKET; - tailings sensor
-
471SUPPORT; COVER - tailings sensor bracket
-
486SELF-TAP SCREW Hex Wash Hd, 1/4'' x 1/2''; SCREW, SELF TAPPING, Hex Wash Hd, 1/4'' x 1/2''
-
491SHIELD; COVER - clean grain auger sensor
-
53UARCLAMP 9.53mm ID, 10.32mm Bolt Hole, P Type; CLIP - harness
-
551WIRE HARNESS; ASSEMBLY - shaft speed front
-
562ELEC CONNECTOR; CONNECTOR - harness
-
581SPROCKET ASSY.; SPROCKET - feeder sensor (Without rock trap or feeder reverser)
-
601SUPPORT; - beater shaft sensor
-
611SUPPORT; COVER - beater shaft sensor
-
624SCREW Slotted Pan Hd, #8-32 x 3/8''; - slotted machine, No. 8-32 x 3/8 inch
-
634LOCK WASHER #8; WASHER, LOCK, #8
-
642SET SCREW Hex Skt, 1/4''-20 x 3/8'';
-
651SUPPORT; - feeder sensor (Without rock trap or feeder reverser) (1640E and 1660E)
-
651SUPPORT; - feeder sensor (Without rock trap or feeder reverser) (1680E)
-
662SERRATED BOLT Hex Serr, 5/16'' - 18 x 1/2'', 5SPL, Full Thd;
-
672CARRIAGE BOLT 3/8'' - 16 x 1 1/4'', Grade 5; NUT - round head square neck, 3/8 NC x 1-1/4 inch
-
681SUPPORT; - feeder sensor (With rock trap or feeder reverser)
Select All
Select
Ref.
1Qty
1Availability
Part #
245238C1Description
HARNESS; ASSEMBLY - shaft speed rearImg
Alts
Select
Ref.
2Qty
1Availability
Part #
245482C1Description
ELEC CONNECTOR 2 Pin; CONNECTOR - harnessImg
Alts
Select
Ref.
4Qty
2Availability
Part #
245193C2Description

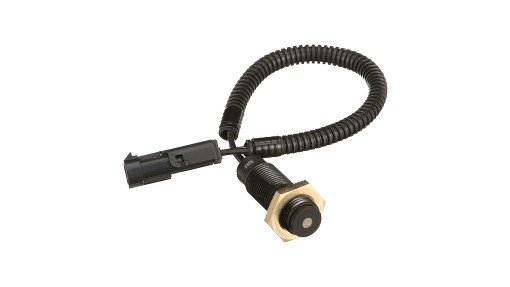

SENSOR; TRANSDUCER - pickup (For straw spreader and feeder)Img
Alts
Select
Ref.
5Qty
1Availability
Part #
245275C91Description
CASE ASSY.; MONITOR ASSEMBLY - shaft speed, with decalImg
Alts
Select
Ref.
6Qty
UARAvailability
Part #
28628R1Description
BULB C2F, #73, 14V; LAMP - trade No. 73, 14 voltImg
Alts
Select
Ref.
8Qty
4Availability
Part #
245365C1Description
TRANSMITTER; - monitor control (For rotary air screen, tailings auger, clean grain sensor, beater)Img
Alts
Select
Ref.
10Qty
1Availability
Part #
245364C1Description

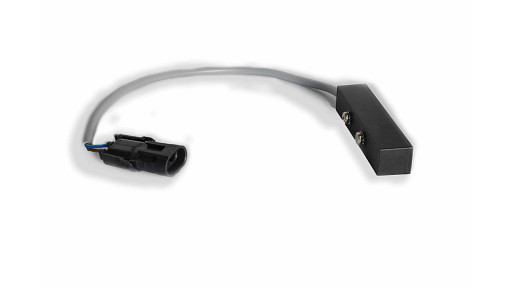

SWITCH; - monitor control (For shoe)Img
Alts
Select
Ref.
11Qty
1Availability
Part #
187996C1Description

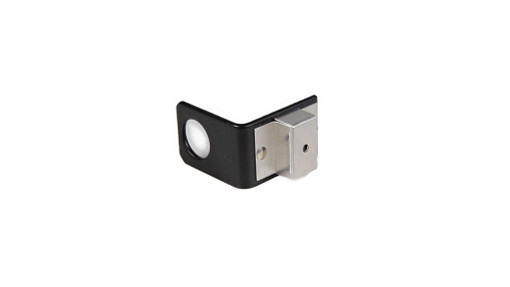

MAGNET; ASSEMBLY - sensor (For shoe)Img
Alts
Select
Ref.
12Qty
1Availability
Part #
187998C2Description
ANGLE; SUPPORT - shoe transmitterImg
Alts
Select
Ref.
13Qty
2Availability
Part #
111-229Description
CARRIAGE BOLT Short NK, 5/16''-18 x 1/2'', G2; BOLT - round head square neck, 5/16 NC x 1/2 inchImg
Alts
Select
Ref.
14Qty
UARAvailability
Part #
938017R1Description
FLANGE NUT Flg, USR, 5/16''-18; - hex flange lock, 5/16 inch NCImg
Alts
Select
Ref.
17Qty
3Availability
Part #
178800C1Description
COLLIER; - sensor (For clean grain, tailings auger, beater)Img
Alts
Select
Ref.
18Qty
1Availability
Part #
195803C1Description

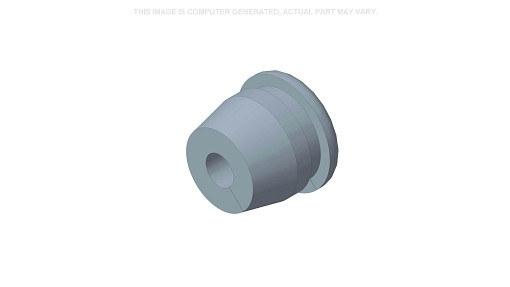

PASSE-FIL; - tube, 3/8 inch ODImg
Alts
Select
Ref.
20Qty
1Availability
Part #
92151C1Description
WIRE HARNESS; ASSEMBLY - monitor (Used without straw spreader)Img
Alts
Select
Ref.
24Qty
1Availability
Part #
178795C1Description
BRACKET; - clean grain sensorImg
Alts
Select
Ref.
25Qty
1Availability
Part #
196987C1Description
IMÁN; ASSEMBLY - sensor (For rotary air screen)Img
Alts
Select
Ref.
26Qty
2Availability
Part #
125932Description
VIS AUTOTARAUDEUSE Sl Pan Hd, #8 x 1/2''; SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2''Img
Alts
Select
Ref.
27Qty
1Availability
Part #
1329865C1Description
CANAL; - rotary air screen sensor mountingImg
Alts
Select
Ref.
28Qty
3Availability
Part #
135270Description
VIS STRIEE 5/16'' - 18 x 3/4''; BOLT - slotted truss head, 5/16 NC x 3/4 inchImg
Alts
Select
Ref.
31Qty
1Availability
Part #
28588R1Description
WASHER; - flat, 11/32 x 11/16 x 3/64 inchImg
Alts
Select
Ref.
34Qty
1Availability
Part #
1301560C1Description
SUPPORT; ANGLE - rotary air screen sensor adjustmentImg
Alts
Select
Ref.
36Qty
1Availability
Part #
113-102Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5; Hex, 5/16''-18 x 3/4'', G5, Full ThdImg
Alts
Select
Ref.
37Qty
1Availability
Part #
192-20Description
LOCK WASHER Helical Spring, 0.318'' ID, CST, ZND; WASHER, LOCK, 5/16''Img
Alts
Select
Ref.
38Qty
1Availability
Part #
425-105Description
NUT 5/16''-18 NC, G5; - hex, 5/16 inch NCImg
Alts
Select
Ref.
44Qty
1Availability
Part #
178801C1Description
COLLAR; - tailing elevator shaft (1640E and 1680E)Img
Alts
Select
Ref.
44Qty
1Availability
Part #
1301135C1Description
COLLAR; - tailing elevator shaft (1680E)Img
Alts
Select
Ref.
45Qty
1Availability
Part #
1319397C1Description
COLLAR 31.88mm ID x 44.45mm OD x 23.24mm L; ASSEMBLY - clean grain auger lockingImg
Alts
Select
Ref.
47Qty
1Availability
Part #
187616C1Description
SUPPORT; COVER - tailings sensor bracketImg
Alts
Select
Ref.
48Qty
6Availability
Part #
23986R1Description
SELF-TAP SCREW Hex Wash Hd, 1/4'' x 1/2''; SCREW, SELF TAPPING, Hex Wash Hd, 1/4'' x 1/2''Img
Alts
Select
Ref.
49Qty
1Availability
Part #
1979323C1Description
SHIELD; COVER - clean grain auger sensorImg
Alts
Select
Ref.
53Qty
UARAvailability
Part #
362120R1Description

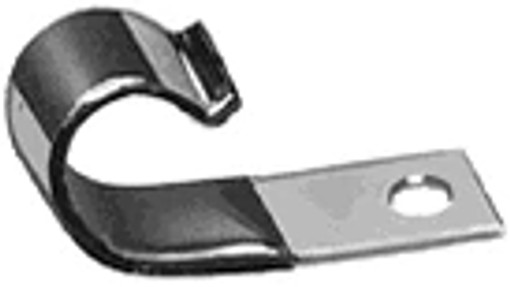

CLAMP 9.53mm ID, 10.32mm Bolt Hole, P Type; CLIP - harnessImg
Alts
Select
Ref.
55Qty
1Availability
Part #
245242C1Description
WIRE HARNESS; ASSEMBLY - shaft speed frontImg
Alts
Select
Ref.
56Qty
2Availability
Part #
131498C1Description
ELEC CONNECTOR; CONNECTOR - harnessImg
Alts
Select
Ref.
58Qty
1Availability
Part #
1317973C2Description
SPROCKET ASSY.; SPROCKET - feeder sensor (Without rock trap or feeder reverser)Img
Alts
Select
Ref.
60Qty
1Availability
Part #
187629C1Description
SUPPORT; - beater shaft sensorImg
Alts
Select
Ref.
61Qty
1Availability
Part #
187630C1Description
SUPPORT; COVER - beater shaft sensorImg
Alts
Select
Ref.
62Qty
4Availability
Part #
436693Description
SCREW Slotted Pan Hd, #8-32 x 3/8''; - slotted machine, No. 8-32 x 3/8 inchImg
Alts
Select
Ref.
63Qty
4Availability
Part #
121841Description
LOCK WASHER #8; WASHER, LOCK, #8Img
Alts
Select
Ref.
64Qty
2Availability
Part #
125735Description
SET SCREW Hex Skt, 1/4''-20 x 3/8'';Img
Alts
Select
Ref.
65Qty
1Availability
Part #
1330063C1Description
SUPPORT; - feeder sensor (Without rock trap or feeder reverser) (1640E and 1660E)Img
Alts
Select
Ref.
65Qty
1Availability
Part #
1330063C1Description
SUPPORT; - feeder sensor (Without rock trap or feeder reverser) (1680E)Img
Alts
Select
Ref.
66Qty
2Availability
Part #
256873Description

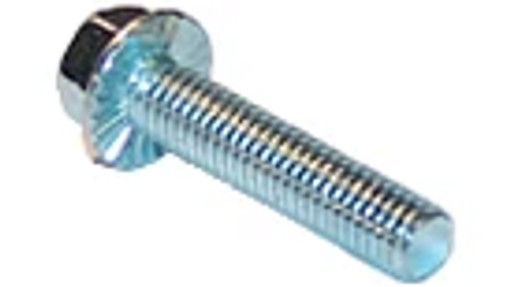

SERRATED BOLT Hex Serr, 5/16'' - 18 x 1/2'', 5SPL, Full Thd;Img
Alts
Select
Ref.
67Qty
2Availability
Part #
550796R1Description
CARRIAGE BOLT 3/8'' - 16 x 1 1/4'', Grade 5; NUT - round head square neck, 3/8 NC x 1-1/4 inchImg
Alts
Select
Ref.
68Qty
1Availability
Part #
1317950C1Description
SUPPORT; - feeder sensor (With rock trap or feeder reverser)Img
Alts
