9C-84 - COOLANT FILTER AND CONDITIONER, 1086 TRACTORS W/ENGINE S/N PRIOR TO 159499
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    121881C1
    BRACKET; - water filter
  • 2
    326-656

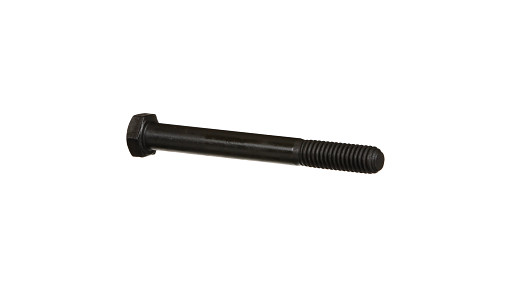

    BOLT Hex, 3/8'' - 16 x 3-1/2'', Gr 8; (Replaces bolt 24844R1) Hex, 3/8''-16 x 3 1/2'', G8
  • 2
    396-21041
    WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardened
  • 2
    1
    A152821
    HEAD; BASE - coolant filter (Replaces base 427446C1)
  • 4
    326-620

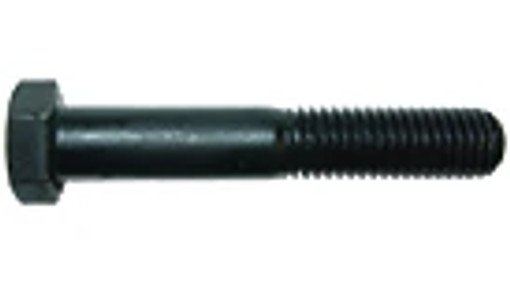

    BOLT Hex, 3/8'' - 16 x 1-1/4'', Gr 8; (Replaces bolt 140483H) Hex, 3/8''-16 x 1 1/4'', G8, Full Thd
  • 4
    396-21041
    WASHER 10.31mm ID x 20.63mm OD x 2.26mm Thk; - flat, 13/32 x 13/16 x 3/32 inch, hardened
  • 4
    492-11038
    LOCK WASHER 3/8''; (Replaces washer 115093) 3/8''
  • 3
    2
    359105R1
    SPACER 3/8'' X-Strng Pipe x 1/2''; - tubular, 3/8 x 1/2 inch, pipe
  • 4
    1
    444150

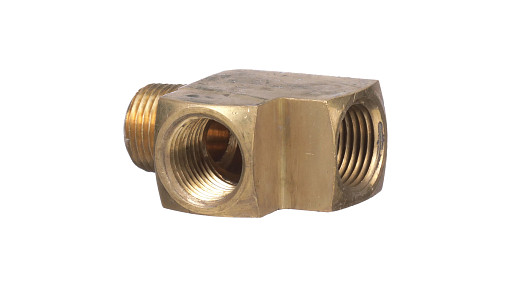

    TEE 3/8''-18 NPTF Fem x 3/8''-18 NPTF Male Run; - pipe, 3/8 inch PT
  • 5
    1
    217-87
    PLUG Hex Hd, 3/8''-18 NPTF, Brass; - hex, 3/8 inch PT (Replaces plug 20990R1)
  • 6
    2
    121894C1

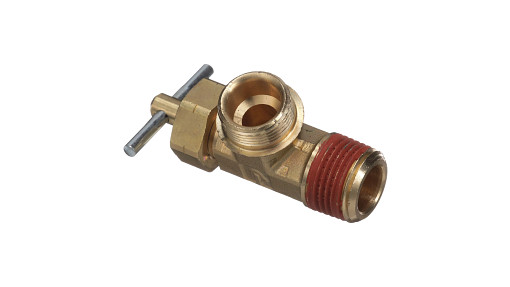

    VALVE SECTION 3/8'' - 18 NPTF x 5/8'' - 24; VALVE - shut-off (Replaces valve 690191C1)
  • 7
    1
    121888C2

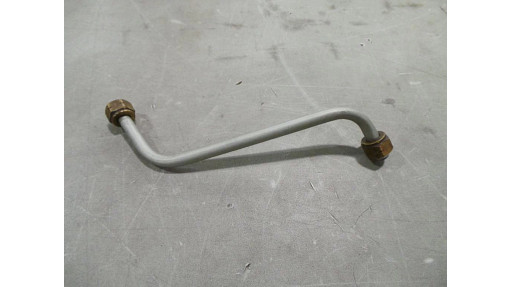

    TUBE; ASSEMBLY - coolant outlet, 14 inch (356 mm) long, cut from bulk hose 995063R1 below, Includes: Ref. 7A & 7B
  • 7A
    2
    222-114
    NUT 5/8''-24; NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1)
  • 7B
    2
    222-104
    SLEEVE 3/8'' Tube; - tube, 3/8 inch OD (Replaces sleeve 265204R1)
  • 8
    1
    222-48
    ELBOW 90%O%, 13/16''-18 Fem x 3/8''-18 NPTF; - coolant outlet tube, 90 degree compression x 3/8 tube OD x 3/8 inch PT (Replaces elbow 606618C1)
  • 9
    1
    121889C1
    TUBE; ASSEMBLY - coolant inlet, 23 inch (554 mm) long, cut from bulk hose 995063R1 below, used with 1086 tractors with engine serial numbers prior to 118713, Includes: Ref. 9A & 9B
  • 9
    1
    690406C91
    TUBE; ASSEMBLY - coolant inlet, used with 1086 tractors with engine serial numbers 118713 to 159498, Includes: Ref. 9A & 9B
  • 9A
    1
    222-114
    NUT 5/8''-24; NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1)
  • 9B
    1
    222-104
    SLEEVE 3/8'' Tube; - tube, 3/8 inch OD (Replaces sleeve 265204R1)
  • 10
    1
    690592C1
    TEE 3/8'' x 1/4'' - 18 NPT x 1/8'' - 27 NPT; - oil cooler
  • 11
    1
    217-84
    PLUG Hex Hd, 1/8''-27, Brass; - hex, 1/8 inch PT (Replaces plug 444572)
  • 12
    1
    362120R1
    CLAMP 9.53mm ID, 10.32mm Bolt Hole, P Type; CLAMP - P-type, tube, used with 1086 tractors with engine serial numbers
  • 12
    1
    673193C1
    CLIP; - tube, used with 1086 tractors with engine serial numbers 118713
  • 13
    1
    A77544
    FILTER; - coolant, includes gasket (Replaces filter 1801090C1)
  • 14
    1
    121756C2
    SENSOR; - temperature
  • 15
    1
    384396R1
    SPADE TERMINAL Male; TERMINAL - sender
  • 16
    1
    362667R1
    CLIP; CLAMP - retainer, electrical harness (Replaces clamp 363660R1)
  • UAR
    995063R1
    TUBE; HOSE - bulk, 50 foot (15240 mm) long
