TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11GASKET;
-
21COVER; VERSION W/OUT HYDRAULIC PUMP
-
ARBOLT Hex, 3/8'' - 16 x 1'', Gr 5;
-
ARBOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
-
ARBOLT Hex, 3/8'' - 16 x 3 5/8'', Gr 2; 3/8 X 92 MM
-
ARLOCK WASHER 3/8'';
-
ARNUT 3/8''-16, G5;
-
31GASKET; VERSION W/OUT HYDRAULIC PUMP
-
41PLATE; CRANKCASE - 433+V+E, 533+V+E, SU-533, V+4WD 633+V+E, SU-633 HD+GD, 733+V+E, 733+V+E, 743, 743X L, 745S, 745XL, 844S, 844XL, 845, 845XL, 923, 933, 943, 953HD
-
41PLATE; CRANKCASE - 955, 955S, 955XL, 956, 956XL, 1055, 1055XL, 1056, 1056XL, 1255, 1255XL, 1455, 1455XL, 858F
-
41PLATE; CRANKCASE - WITH 12 - 856 XL
-
7BOLT Hex, 5/16'' - 18 x 5/8'', Gr 5, Full Thd;
-
7LOCK WASHER 5/16'';
-
51GASKET;
-
61COVER; CRANKCASE - 433+V+E, 533+V+E, SU-533V+4WD 633+V+E, SU-633 HD+GD, 733+V+E, 743, 743XL, 745S, 745XL, 844S, 844XL, 845, 845XL
-
61COVER; CRANKCASE - 955, 955S, 955XL, 956, 956XL, 1055, 1055XL, 1056, 1056XL, 923
-
61COVER; CRANKCASE - 1255, 1255XL, 1455, 145XL
-
61COVER; CRANKCASE - 933, 943
-
61COVER; CRANKCASE - 953HD
-
61COVER ASSY; CRANKCASE - CONSISTS OF ITEMS 6, 9, 10, 17 WITH 1 : 3225748R1 - 856 XL
-
ARBOLT Hex, 5/16'' - 18 x 7/8'', Gr 5, Full Thd;
-
ARBOLT Hex, 5/16'' - 18 x 1 7/8'', Gr 5;
-
ARBOLT Hex, 5/16'' - 18 x 2'', Gr 5;
-
ARBOLT Hex, 5/16'' - 18 x 2-1/4'', Gr 5;
-
ARBOLT Hex, 5/16'' - 18 x 3 1/4'', Gr 5; 5/16 X 833 MM
-
ARBOLT Hex, 3/8'' - 16 x 2'', Gr 5;
-
ARLOCK WASHER 5/16'';
-
ARLOCK WASHER 3/8'';
-
ARBELLEVILLE WASHER 8.199mm ID x 16mm OD x 0.9mm Thk; (5/16'')
-
ARNUT 5/16'' - 18, Gr 5;
-
ARNUT 3/8''-16, G5;
-
ARPLUG; EXPANSION
-
71GASKET;
-
81COVER;
-
4LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk;
-
4NUT 5/16'' - 18, Gr 5;
-
91SEAL KIT; SEAL, OIL, W/DISTANCE RING AND O-RING
-
91SEALING WASHER M18 x 22 x 1.5; 856 XL
-
101INDICATOR; TIMING, - FOR COVER 3056853R61
-
101DOWEL; INDICATOR, TIMING, FOR COVER 3055639R61, 3056854R61
-
101INDICATOR; TIMING, FOR COVER 3218959R92, 321883R91
-
101INDICATOR; TIMING, FOR COVER 3144809R91
-
101CLUSTER; INDICATOR, TIMING - FOR COVER 3228719R91
-
111PLUG Hex, M18 x 1.5; M18 NOT FOR 856XL
-
123STUD;
-
3NUT 5/16'' - 18, Gr 5;
-
131O-RING 2.5mm Thk x 15mm ID;
-
141COVER; 955, 955XL, 956, 956XL, 1055, 1055, 1055XL, 1056, 1056XL, 1255, 1255XL, 1455, 1455XL
-
15ARSTUD; 5/16 X 63 MM
-
16ARSTUD; 5/16 X 59 MM
-
174STUD; 5/16 X 30 MM
-
184WASHER;
-
191COVER ASSY; VERSION W/OUT HYDRAULIC PUMP
-
4BOLT Hex, 5/16'' - 18 x 2 1/2'', Gr 5;
-
3LOCK WASHER 5/16'';
-
1BELLEVILLE WASHER 8.199mm ID x 16mm OD x 0.9mm Thk; (5/16'')
-
4NUT 5/16'' - 18, Gr 5;
-
201GASKET; VERSION W/OUT HYDRUALIC PUMP
-
211COVER; A - 94 MM - VERSION W/OUT HYDRAULIC PUMP - FOR 1 FUEL FILTER;FOR ENGINES ON - 2530TC, 248, 484, 25, 585XL, 268, 684, 685XL 268HD, 278, 784, 785XL 885XL 262 F.A.I. -
-
211COVER ASSY; A - 151 MM - VERSION W/OUT HYDRAULIC PUMP - FOR 2 FUEL FILTER
-
4BOLT Hex, 5/16'' - 18 x 2-1/4'', Gr 5;
-
4LOCK WASHER 5/16'';
-
4NUT 5/16'' - 18, Gr 5;
-
221PLATE ASSY.; CRANKCASE
-
7BOLT Hex, 5/16'' - 18 x 5/8'', Gr 5, Full Thd;
-
7LOCK WASHER 5/16'';
-
231GASKET;
-
241COVER ASSY; CRANKCASE - 248, 484, 258, 584, 585XL, 268 684, 685XL, H84, 268HD, 278, 784, 785XL, 884, 885XL 2530TC, 262 F.A.I
-
241COVER; CRANKCASE WITH ITEM 26 - 1420
-
241COVER ASSY; CRANKCASE SU-644 HD+4WD S/N 150056 UP
-
241COVER; CRANKCASE - SU-644 HD+4WD UP TO S/N 150055
-
ARBOLT Hex, 5/16'' - 18 x 7/8'', Gr 5, Full Thd;
-
ARBOLT Hex, 5/16'' - 18 x 1 7/8'', Gr 5;
-
ARBOLT Hex, 5/16'' - 18 x 2'', Gr 5;
-
ARBOLT Hex, 5/16'' - 18 x 2-1/4'', Gr 5;
-
ARBOLT Hex, 5/16'' - 18 x 2 1/2'', Gr 5;
-
ARLOCK WASHER 5/16'';
-
ARBELLEVILLE WASHER 8.199mm ID x 16mm OD x 0.9mm Thk; (5/16'')
-
ARNUT 5/16'' - 18, Gr 5;
-
251INDICATOR; TIMING - 248, 484, 2530TC
-
251ADJUSTER; INDICATOR, TIMING - 258, 584, 585XL, 268, 684, 685XL HD84, 268HD, 278, 784, 785XL
-
251INDICATOR; TIMING - 884, 885XL
-
251INDICATOR; SPARE PART TIMING - 262 F.A.I.
-
261INDICATOR; TIMING - 1420
-
271SEALING RING M18 x 24mm OD x 1.5mm Thk;
-
281REDUCER FITTING;
-

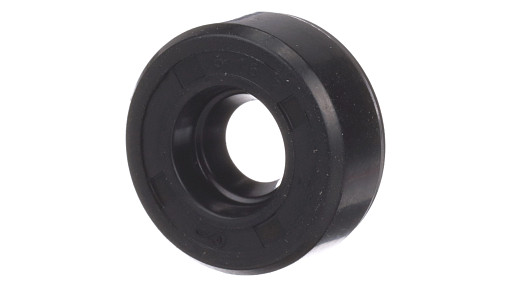

291SEAL 6mm ID x 16mm OD x 7mm Thk;
-
301SUPPORT; COUPLING;FOR ENGINES ON - 2530TC, 248, 484, 25, 585XL, 268, 684, 685XL 268HD, 278, 784, 785XL 885XL 262 F.A.I. -
-
311NUT; M18;FOR ENGINES ON - 2530TC, 248, 484, 25, 585XL, 268, 684, 685XL 268HD, 278, 784, 785XL 885XL 262 F.A.I. -
-

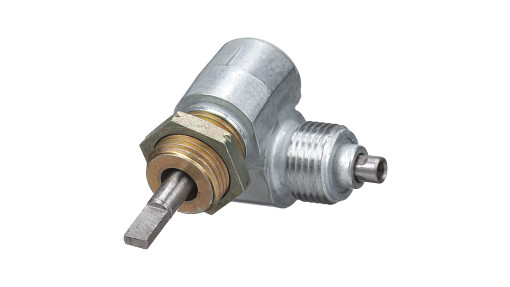

321ANGLE note : no longer available , part will be serviced with an all-makes offering (AS169654AP) under EAR21-2494; NOT FOR 262 F.A.I.;FOR ENGINES ON - 2530TC, 248, 484, 25, 585XL, 268, 684, 685XL 268HD, 278, 784, 785XL 885XL 262 F.A.I. -
-

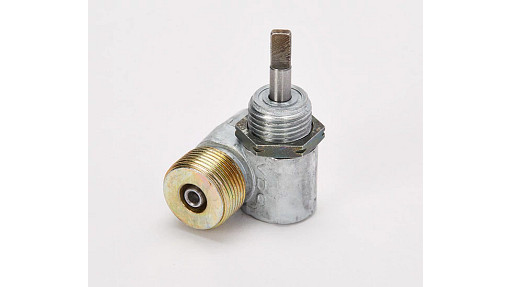

321DRIVE, ANGLE; FOR 262 F.A.I. ONLY;FOR ENGINES ON - 2530TC, 248, 484, 25, 585XL, 268, 684, 685XL 268HD, 278, 784, 785XL 885XL 262 F.A.I. -
Select All
Select
Ref.
2Qty
1Availability
Part #
3055142R1Description
COVER; VERSION W/OUT HYDRAULIC PUMPImg
Alts
Select
Ref.
Qty
ARAvailability
Part #
179839Description
BOLT Hex, 3/8'' - 16 x 1'', Gr 5;Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
179841Description
BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5;Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
446641Description
BOLT Hex, 3/8'' - 16 x 3 5/8'', Gr 2; 3/8 X 92 MMImg
Alts
Select
Ref.
3Qty
1Availability
Part #
3055143R1Description
GASKET; VERSION W/OUT HYDRAULIC PUMPImg
Alts
Select
Ref.
4Qty
1Availability
Part #
3055064R11Description
PLATE; CRANKCASE - 433+V+E, 533+V+E, SU-533, V+4WD 633+V+E, SU-633 HD+GD, 733+V+E, 733+V+E, 743, 743X L, 745S, 745XL, 844S, 844XL, 845, 845XL, 923, 933, 943, 953HDImg
Alts
Select
Ref.
4Qty
1Availability
Part #
3055249R11Description
PLATE; CRANKCASE - 955, 955S, 955XL, 956, 956XL, 1055, 1055XL, 1056, 1056XL, 1255, 1255XL, 1455, 1455XL, 858FImg
Alts
Select
Ref.
4Qty
1Availability
Part #
3228722R91Description
PLATE; CRANKCASE - WITH 12 - 856 XLImg
Alts
Select
Ref.
Qty
7Availability
Part #
13-510Description
BOLT Hex, 5/16'' - 18 x 5/8'', Gr 5, Full Thd;Img
Alts
Select
Ref.
6Qty
1Availability
Part #
3056853R61Description
COVER; CRANKCASE - 433+V+E, 533+V+E, SU-533V+4WD 633+V+E, SU-633 HD+GD, 733+V+E, 743, 743XL, 745S, 745XL, 844S, 844XL, 845, 845XLImg
Alts
Select
Ref.
6Qty
1Availability
Part #
3055639R61Description
COVER; CRANKCASE - 955, 955S, 955XL, 956, 956XL, 1055, 1055XL, 1056, 1056XL, 923Img
Alts
Select
Ref.
6Qty
1Availability
Part #
3218959R92Description
COVER; CRANKCASE - 1255, 1255XL, 1455, 145XLImg
Alts
Select
Ref.
6Qty
1Availability
Part #
3228719R91Description
COVER ASSY; CRANKCASE - CONSISTS OF ITEMS 6, 9, 10, 17 WITH 1 : 3225748R1 - 856 XLImg
Alts
Select
Ref.
Qty
ARAvailability
Part #
179817Description
BOLT Hex, 5/16'' - 18 x 7/8'', Gr 5, Full Thd;Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
179825Description
BOLT Hex, 5/16'' - 18 x 1 7/8'', Gr 5;Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
179826Description
BOLT Hex, 5/16'' - 18 x 2'', Gr 5;Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
13-536Description
BOLT Hex, 5/16'' - 18 x 2-1/4'', Gr 5;Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
426444Description
BOLT Hex, 5/16'' - 18 x 3 1/4'', Gr 5; 5/16 X 833 MMImg
Alts
Select
Ref.
Qty
ARAvailability
Part #
179847Description
BOLT Hex, 3/8'' - 16 x 2'', Gr 5;Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
3218395R1Description
BELLEVILLE WASHER 8.199mm ID x 16mm OD x 0.9mm Thk; (5/16'')Img
Alts
Select
Ref.
Qty
4Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk;Img
Alts
Select
Ref.
9Qty
1Availability
Part #
3228133R91Description
SEAL KIT; SEAL, OIL, W/DISTANCE RING AND O-RINGImg
Alts
Select
Ref.
9Qty
1Availability
Part #
933222R1Description
SEALING WASHER M18 x 22 x 1.5; 856 XLImg
Alts
Select
Ref.
10Qty
1Availability
Part #
3056855R1Description
INDICATOR; TIMING, - FOR COVER 3056853R61Img
Alts
Select
Ref.
10Qty
1Availability
Part #
3056856R1Description
DOWEL; INDICATOR, TIMING, FOR COVER 3055639R61, 3056854R61Img
Alts
Select
Ref.
10Qty
1Availability
Part #
3218958R1Description
INDICATOR; TIMING, FOR COVER 3218959R92, 321883R91Img
Alts
Select
Ref.
10Qty
1Availability
Part #
3059231R1Description
INDICATOR; TIMING, FOR COVER 3144809R91Img
Alts
Select
Ref.
10Qty
1Availability
Part #
3136277R1Description
CLUSTER; INDICATOR, TIMING - FOR COVER 3228719R91Img
Alts
Select
Ref.
11Qty
1Availability
Part #
933223R1Description
PLUG Hex, M18 x 1.5; M18 NOT FOR 856XLImg
Alts
Select
Ref.
14Qty
1Availability
Part #
3144064R1Description
COVER; 955, 955XL, 956, 956XL, 1055, 1055, 1055XL, 1056, 1056XL, 1255, 1255XL, 1455, 1455XLImg
Alts
Select
Ref.
19Qty
1Availability
Part #
3132540R1Description
COVER ASSY; VERSION W/OUT HYDRAULIC PUMPImg
Alts
Select
Ref.
Qty
4Availability
Part #
179828Description
BOLT Hex, 5/16'' - 18 x 2 1/2'', Gr 5;Img
Alts
Select
Ref.
Qty
1Availability
Part #
3218395R1Description
BELLEVILLE WASHER 8.199mm ID x 16mm OD x 0.9mm Thk; (5/16'')Img
Alts
Select
Ref.
20Qty
1Availability
Part #
3132541R1Description
GASKET; VERSION W/OUT HYDRUALIC PUMPImg
Alts
Select
Ref.
21Qty
1Availability
Part #
3138776R91Description
COVER; A - 94 MM - VERSION W/OUT HYDRAULIC PUMP - FOR 1 FUEL FILTER;FOR ENGINES ON - 2530TC, 248, 484, 25, 585XL, 268, 684, 685XL 268HD, 278, 784, 785XL 885XL 262 F.A.I. -Img
Alts
Select
Ref.
21Qty
1Availability
Part #
3228003R1Description
COVER ASSY; A - 151 MM - VERSION W/OUT HYDRAULIC PUMP - FOR 2 FUEL FILTERImg
Alts
Select
Ref.
Qty
4Availability
Part #
13-536Description
BOLT Hex, 5/16'' - 18 x 2-1/4'', Gr 5;Img
Alts
Select
Ref.
Qty
7Availability
Part #
13-510Description
BOLT Hex, 5/16'' - 18 x 5/8'', Gr 5, Full Thd;Img
Alts
Select
Ref.
24Qty
1Availability
Part #
3136057R14Description
COVER ASSY; CRANKCASE - 248, 484, 258, 584, 585XL, 268 684, 685XL, H84, 268HD, 278, 784, 785XL, 884, 885XL 2530TC, 262 F.A.IImg
Alts
Select
Ref.
24Qty
1Availability
Part #
3139160R91Description
COVER; CRANKCASE WITH ITEM 26 - 1420Img
Alts
Select
Ref.
24Qty
1Availability
Part #
3136057R14Description
COVER ASSY; CRANKCASE SU-644 HD+4WD S/N 150056 UPImg
Alts
Select
Ref.
24Qty
1Availability
Part #
3136246R91Description
COVER; CRANKCASE - SU-644 HD+4WD UP TO S/N 150055Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
179817Description
BOLT Hex, 5/16'' - 18 x 7/8'', Gr 5, Full Thd;Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
179825Description
BOLT Hex, 5/16'' - 18 x 1 7/8'', Gr 5;Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
179826Description
BOLT Hex, 5/16'' - 18 x 2'', Gr 5;Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
13-536Description
BOLT Hex, 5/16'' - 18 x 2-1/4'', Gr 5;Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
179828Description
BOLT Hex, 5/16'' - 18 x 2 1/2'', Gr 5;Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
3218395R1Description
BELLEVILLE WASHER 8.199mm ID x 16mm OD x 0.9mm Thk; (5/16'')Img
Alts
Select
Ref.
25Qty
1Availability
Part #
3136252R11Description
INDICATOR; TIMING - 248, 484, 2530TCImg
Alts
Select
Ref.
25Qty
1Availability
Part #
3136040R21Description
ADJUSTER; INDICATOR, TIMING - 258, 584, 585XL, 268, 684, 685XL HD84, 268HD, 278, 784, 785XLImg
Alts
Select
Ref.
25Qty
1Availability
Part #
3136325R2Description
INDICATOR; TIMING - 884, 885XLImg
Alts
Select
Ref.
25Qty
1Availability
Part #
3138593R11Description
INDICATOR; SPARE PART TIMING - 262 F.A.I.Img
Alts
Select
Ref.
27Qty
1Availability
Part #
3051337R1Description
SEALING RING M18 x 24mm OD x 1.5mm Thk;Img
Alts
Select
Ref.
29Qty
1Availability
Part #
3052295R91Description
SEAL 6mm ID x 16mm OD x 7mm Thk;Img
Alts
Select
Ref.
30Qty
1Availability
Part #
3056986R1Description

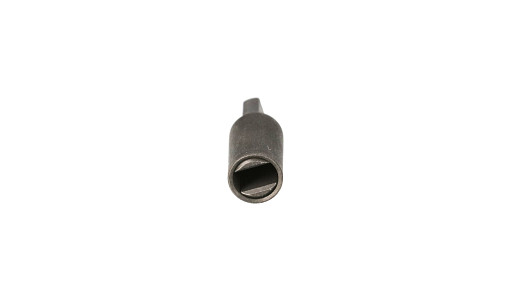

SUPPORT; COUPLING;FOR ENGINES ON - 2530TC, 248, 484, 25, 585XL, 268, 684, 685XL 268HD, 278, 784, 785XL 885XL 262 F.A.I. -Img
Alts
Select
Ref.
31Qty
1Availability
Part #
3132116R1Description
NUT; M18;FOR ENGINES ON - 2530TC, 248, 484, 25, 585XL, 268, 684, 685XL 268HD, 278, 784, 785XL 885XL 262 F.A.I. -Img
Alts
Select
Ref.
32Qty
1Availability
Part #
3055982R93Description
ANGLE note : no longer available , part will be serviced with an all-makes offering (AS169654AP) under EAR21-2494; NOT FOR 262 F.A.I.;FOR ENGINES ON - 2530TC, 248, 484, 25, 585XL, 268, 684, 685XL 268HD, 278, 784, 785XL 885XL 262 F.A.I. -Img
Alts
Select
Ref.
32Qty
1Availability
Part #
3141349R92Description
DRIVE, ANGLE; FOR 262 F.A.I. ONLY;FOR ENGINES ON - 2530TC, 248, 484, 25, 585XL, 268, 684, 685XL 268HD, 278, 784, 785XL 885XL 262 F.A.I. -Img
Alts
