08-08 - HYDRAULIC CYLINDER, PHASING, 3-1/2 INCH BORE X 8 INCH STROKE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    87427820
    CYLINDER; hydraulic, Phasing, 3-1/2 (89 mm) ID x 8 inch (203 mm) stroke
  • 1
    1
    145424C2
    HYD TUBE 3.5'' ID, 10.167'' Length; cylinder
  • 2
    1
    71100209
    PLUG Hex Soc, 3/4''-16 ORB;
  • 3
    1
    237-6008
    O-RING 0.087'' Thk x 0.644'' ID, -908, Cl 6, 90 Duro; 1/2'' OD (also included in seal kit)
  • 4
    1
    232-46314
    LOCK NUT 7/8''-14, GC;
  • 5
    1
    145233C1
    CLEVIS 1/4'' - 12; rod end
  • 6
    1
    145453C1

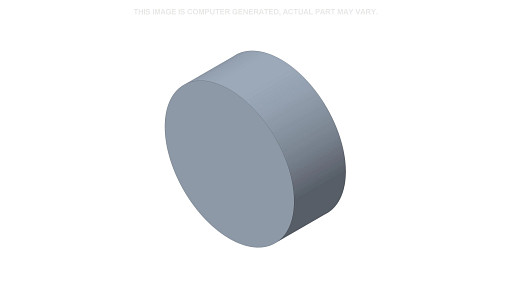

    PLUG Lock, 7.938mm Dia x 3.175mm Thk, Nylon; PAD insert
  • 7
    1
    85179C1
    PISTON; cylinder
  • 8
    1
    1272826C1
    HEAD; cylinder, front
  • 9
    4
    1272524C1
    TIE-ROD 1/2'' -13 x 12.65'', UNC; TIE ROD Cylinder
  • 10
    1
    214389
    HEX PLUG 3/4'' - 16 ORB;
  • 11
    1
    1272825C1

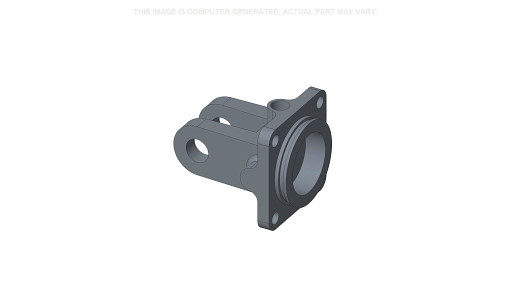

    HEAD; cylinder, two ports, rear
  • 12
    1
    145231C1
    PISTON ROD;
  • 1
    84919C2
    GASKET KIT; (Inc, REF 13-19)
  • 13
    1
    NSS
    NOT SOLD SEPARAT; WIPER piston rod
  • 14
    1
    NSS
    NOT SOLD SEPARAT; SEAL piston rod
  • 15
    2
    NSS
    NOT SOLD SEPARAT; WASHER backup
  • 16
    2
    NSS
    NOT SOLD SEPARAT; O-RING, 3-1/4 x 3-1/2 inch
  • 17
    1
    NSS
    NOT SOLD SEPARAT; RING piston seal
  • 18
    1
    NSS
    NOT SOLD SEPARAT; O-RING, 3 x 3-3/16 inch
  • 19
    2
    NSS
    NOT SOLD SEPARAT; RING piston wear
  • 20
    1
    483-1386
    SET SCREW Hex Soc, 3/8''-16 x 3/8''; Set, hex socket headless, 3/8 NC x 3/8 inch, cup point
  • 21
    4
    425-108
    NUT 1/2'' - 13, Gr 5;
